24pcs Tight Buffered Fiber , 0.5mm FRP GJFJH Indoor Fiber Cable
24pcs Tight Buffered Fiber , 0.5mm FRP GJFJH Indoor Fiber Cable
24pcs Tight Buffered Fiber , 0.5mm FRP GJFJH Indoor Fiber Cable
24pcs Tight Buffered Fiber , 0.5mm FRP GJFJH Indoor Fiber Cable
24pcs Tight Buffered Fiber , 0.5mm FRP GJFJH Indoor Fiber Cable
24pcs Tight Buffered Fiber , 0.5mm FRP GJFJH Indoor Fiber Cable
24pcs Tight Buffered Fiber , 0.5mm FRP GJFJH Indoor Fiber Cable
24pcs Tight Buffered Fiber , 0.5mm FRP GJFJH Indoor Fiber Cable
24pcs Tight Buffered Fiber , 0.5mm FRP GJFJH Indoor Fiber Cable
24pcs Tight Buffered Fiber , 0.5mm FRP GJFJH Indoor Fiber Cable
24pcs Tight Buffered Fiber , 0.5mm FRP GJFJH Indoor Fiber Cable
24pcs Tight Buffered Fiber , 0.5mm FRP GJFJH Indoor Fiber Cable
Specifications
Brand Name :
Weiroct
Model Number :
GJBFJH
Certification :
ISO-9001
Place of Origin :
China
MOQ :
1KM
Price :
USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 Kilometre / Month
Delivery Time :
5~20 DAYS
Packaging Details :
2KM/Roll/Carton Box
Single-mode Fiber :
G657A1/ G657A2
Jacket Color :
Yellow, Black
Fiber Count :
12, 24 Cores
FRP :
0.5mm
Jacket :
LSZH
Tight Buffer :
24pcs
Aramid Yarn :
16 Standard Yarn
OD :
10-10.5mm
Application :
Indoor
Fiber Type :
OM1
Type :
Indoor
Description

Indoor Tight Buffered Fiber Optic Cable GJFJH Indoor Distribution Cable

Product Description:

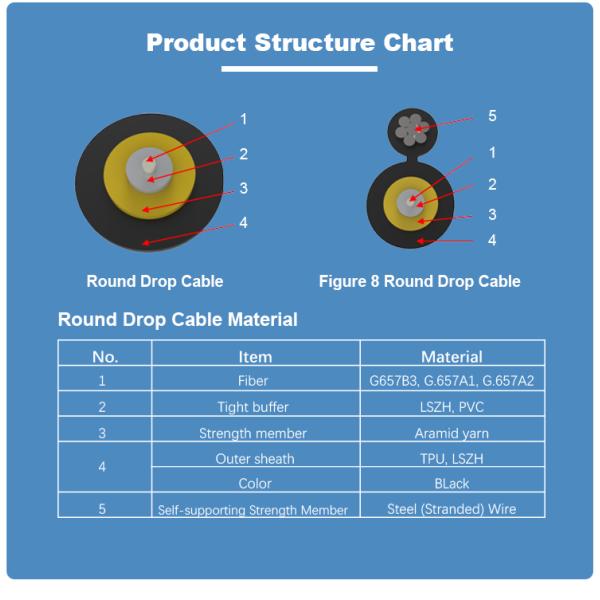

1. Indoor fiber optical cable is made by evenly applying strands of Aramid yarns as the strength member over tight buffer fibers and then is completed with a flame-retardant sheath.
2. 2 fiber, single mode or multimode, Tight buffer fiber, Aramid yarn, LSZH jacket.

Cable Specification:

Item Name:Fiber optical cable GJFJV

Optical Mode:Singlemode/Multimode

Outder Diameter: 6.5mm-6.8mm

Working Life:More than 25 years

Application:Office/Comercial Building,optical test equipment,communication base station/distribution box,residential area

Products Features:

Small diameter,light weight,flame retardant,excellent strippability

Low-attenuation,High flexibility

Standards and Certificate:

Cable complies with Standard YD/T 769-2003.

Storage/Operating Temperature: -40°C to + 70°C

Certificate:CE ROHS ISO9001

Cable diameter:

MPC-02 MPC-04 MPC-06 MPC-08 MPC-10 MPC-12
Cable Diameter(mm) 4.1+-0.25 4.8+-0.25 5.1+-0.25 6.2+-0.25 6.5+-0.25 6.8+-0.25
Cable Weight(kg/km) 12 20 24 29 32 35
Tight Buffer Fiber Diameter 900+-50μm

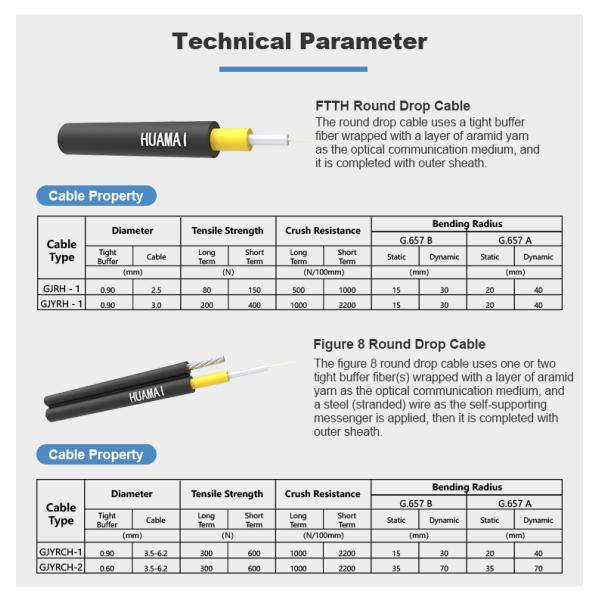

Mechanical Characteristics:

Tensile Strength Long Term 80N 60 50
Short Term 150N 120 100
Crush Resistance Long Term 100N/100mm 100N/100mm 100N/100mm
Short Term 500N/100mm 500N/100mm 500N/100mm
Bending Radius Dynamic 20XD 20XD 20XD
Static 10XD 10XD 10XD
Fiber Count
Outside OD(mm)
Tight Buffer OD(mm)
Weightkg/km
Tensile Strength(N)
Crush Resistance(N/100mm)
Bending Radius(mm)
2
3
0.9
15
600
200
1000
200
20D
10D
4
5
0.9
22
600
200
1000
200
20D
10D
6
5
0.9
23
600
200
1000
200
20D
10D
8
5.5
0.9
28
600
200
1000
200
20D
10D
12
6
0.9
38
600
200
1000
200
20D
10D
16
7.2
0.9
42
600
200
1000
200
20D
10D
24
8.3
0.9
58
600
200
1000
200
20D
10D
48
10
0.9
96
600
200
1000
200
20D
10D

24pcs Tight Buffered Fiber , 0.5mm FRP GJFJH Indoor Fiber Cable24pcs Tight Buffered Fiber , 0.5mm FRP GJFJH Indoor Fiber Cable
