GJXH FTTH Drop Cable LSZH Jacket 1 Core 2 Core G657A FTTH Drop Fiber Cable
GJXH FTTH Drop Cable LSZH Jacket 1 Core 2 Core G657A FTTH Drop Fiber Cable
GJXH FTTH Drop Cable LSZH Jacket 1 Core 2 Core G657A FTTH Drop Fiber Cable
GJXH FTTH Drop Cable LSZH Jacket 1 Core 2 Core G657A FTTH Drop Fiber Cable
GJXH FTTH Drop Cable LSZH Jacket 1 Core 2 Core G657A FTTH Drop Fiber Cable
GJXH FTTH Drop Cable LSZH Jacket 1 Core 2 Core G657A FTTH Drop Fiber Cable
Specifications
Brand Name :
WRC
Model Number :
GJXH
Certification :
ISO9001
Place of Origin :
Hubei, China
MOQ :
100
Price :
USD100-USD1030/Km
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
1000 Km per Day
Delivery Time :
5-20 days
Packaging Details :
Export Carton Packing
Name :
1 core 2 cores 4core 12core gjyxch gjyxfch gjxh g657a1 g657a2 g652d ftth indoor outdoor fiber optic drop cable
Wavelength :
1260 to 1650nm
Type :
fiber optic plc splitter, 1x2 1x4 1x8 1x16 2x8 2x16
Connector :
SC LC
Cable Type: :
G657A1 or as customers' order
Operating temperation :
-40℃ to 85℃
No. of Fiber :
2 4 8 16
Usage :
FTTH
Material of jacket :
LSZH
Description

GJXH FTTH Drop Cable LSZH Jacket 1 core 2 core G657A FTTH Drop Fiber Cable

GJXH FTTH Drop Cable LSZH Jacket 1 Core 2 Core G657A FTTH Drop Fiber Cable
FiberType: G.652, G.655 or G.657 single-mode fiber, A1a orA1b, OM3 or OM4 multi-mode fiber, or other types of fiber.Jacket Material: Environmental flame retardant polyvinylchloride(PVC), environmental low smoke zero halogen flame retardant polyolefin(LSZH),environmental halogen flame retardant polyolefin(ZRPO), orother contracted material.Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color.

Features


Good mechanical and environmental characteristics.
Rame retardant characteristics meet the requirements of relevant standards.
The mechanical characteristics meet the requirements of relevant standards.
Soft, flexible, easy to lay and splice, and with big capacity data transmission.
Meet various requirements of market and clients.

Applications


Used as access building cable.
Used in indoor cabling, especially used for FTTH

Optical Characteristics
Fiber Type Attenuation Overfilled launch Bandwidth Effective Modal Bandwidth 10GB/S Ethernet link length Min Bending Radius
Conditions 1310/1550nm 850/1300nm 850/1300nm 850nm 850nm
Unit dB/km dB/km MHZ.km MHZ.km m mm
G652D 0.36/0.22 16
G657A1 0.36/0.22 10
G657A2 0.36/0.22 7.5
50/125 3.0/1.0 ≥500/500 30
62.2/125 3.0/1.0 ≥200/500 30
OM3 3.0/1.0 ≥1500/500 ≥2000 ≥300 30
OM4 3.0/1.0 ≥3500/500 ≥4700 ≥550 30
B1-OM3 3.0/1.0 ≥1500/500 ≥2000 ≥300 7.5
B1-OM4 3.0/1.0 ≥3500/500 ≥4700 ≥550 7.5

Structure and Technical Specification

Fiber Count

Cable Diameter

(mm)

Cable Weight

(kg/km)


Tensile Strength

(N/100mm)

Crush Resistance

(N/100mm)
Short Term Long Term Short Term Long Term
1-4 3.0*2.0 9.0 80/200 40/100 1000/2200 500/1000

Note :1.This datasheet can only be a referance,but not a supplement to the contract,Please contact our sales people for

more information.

2.The cable core use the colored coating fiber of 250μm.

3.The tensile and crush of the cable are accordance with the values in the table when the strength member of FRP and Steel are used flame retardant fiber optic cable

GJXH FTTH Drop Cable LSZH Jacket 1 Core 2 Core G657A FTTH Drop Fiber CableGJXH FTTH Drop Cable LSZH Jacket 1 Core 2 Core G657A FTTH Drop Fiber CableGJXH FTTH Drop Cable LSZH Jacket 1 Core 2 Core G657A FTTH Drop Fiber Cable

FAQ

Q1: When can I get the quotation back?

A:Generally, quotes will be replied within 24 hours or faster(weekends not included), however, a few of days would be taken for special ones.

Q2:How about the cable's quality ?

A: Our factory has dug in this industry for many years and sold to many countries in the world. We are fully compliant with ISO9001: 2008 quality management system, we guarantee that our products are IEC60794 and Telcordia-GR-326-Core standard compliant. We have a series of professional equipment and manufacturing instruments to make sure reliable quality of our products.

Q3: How do l assure that you are a reliable supplier?

A: We are the Assessed Supplier of Alibaba.com. Alibaba as the third party to verify our factory and office to confirm we are a real and reliable supplier. If you are willing to verify that through the phone or video, you are welcome at any time.

Q4: Could the OEM be accepted and what's the MOQ?

A: Of course, your customization order is always welcomed. The MOQ Depends on different items, each item has its own minimum quantity. Your satisfaction is our maximum motivation.

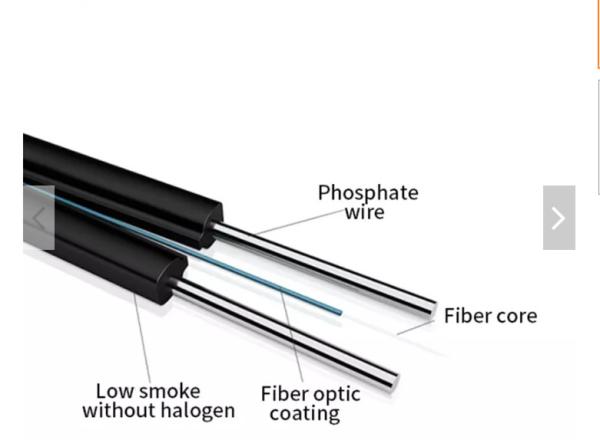

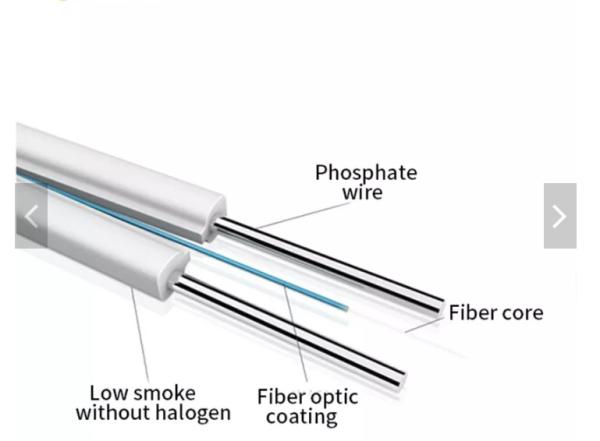

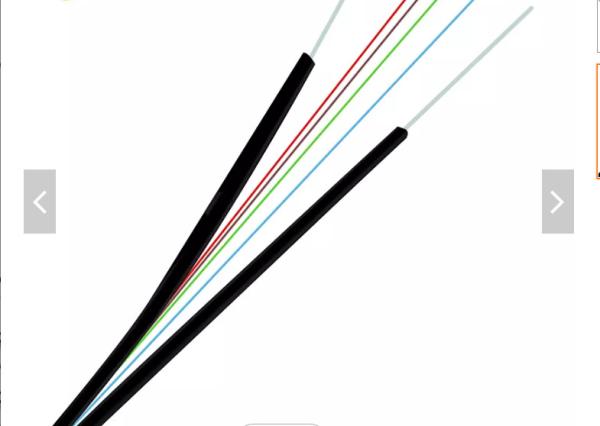

Drawings of 1 core 2 cores 4core 12core gjyxch gjyxfch gjxh g657a1 g657a2 g652d ftth indoor outdoor fiber optic drop cable

GJXH FTTH Drop Cable LSZH Jacket 1 Core 2 Core G657A FTTH Drop Fiber Cable

GJXH FTTH Drop Cable LSZH Jacket 1 Core 2 Core G657A FTTH Drop Fiber Cable
