Outdoor Singlemode Underground Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53
Outdoor Singlemode Underground Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53
Outdoor Singlemode Underground Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53
Outdoor Singlemode Underground Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53
Outdoor Singlemode Underground Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53
Outdoor Singlemode Underground Direct Buried Armoured Steel Tape Fiber Optic Cable GYTA53
Specifications
Brand Name :
WRC
Model Number :
GYTA53
Certification :
ISO9001,SGS
Place of Origin :
China
MOQ :
5km
Price :
USD0.50-USD15/Km
Payment Terms :
Western Union, MoneyGram
Supply Ability :
500Km per day
Delivery Time :
5-20 days
Packaging Details :
Export Carton Packing
Application :
Telecommunication,Duct,Telecom,Network
Fiber type :
G652D,single mode or multi mode,50/125,62.5/125,OM3
Number of conductors :
≥ 10,2,4
Type :
Single Mode g652d,PC/UPC/APC,Outdoor Optical Cable Aerial,Singlemode & Multimode
Fiber count :
2-288 core
Color :
Black,Blue,Grey,Customized,Green
Jacket :
PE,MDPE,LSZH,PVC,PVC outer sheath
Product name :
stranded loose tube armored cable,Outdoor Optic Fiber Cable
Length :
2km or customized length
Jacket material :
PE,LSZH,TPU,LSZH OR PVC
Name :
Outdoor armor fiber optic cable
Installation :
self- supporting Aerial,aerial,Aerial & Duct,aerial/tube/duct
Structure :
Loose tube,Unitube
Operating temperature :
-40~75
Sheath material :
LSZH,HDPE
Strength member :
steel wire
Description

Outdoor singlemode underground direct buried armoured steel tape fiber optic cable GYTA53

Technical Parameters

Armored Loose Tube Double Jacket/Double Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs.

Features

Loose tube gel-filled construction for superiorfiber protection.

Double jacket single armored(GYTA53) and Double jacket double armored

(GYTA53) for rodent pr.otection and direct burial.

UV and moisture-resistant design

Applications

Directburied, Duct Underground conduits.

Backbone.

Structure and Technical Specifications

Fiber
Count		 Nominal
Diameter (mm)		 Nominal
Weight
(kg/km)		 Max Fibers
per Tube		 Max
No. of
(Tubes+
fillers)		 Allowable Tensile
Load (N)		 Allowable Crush
Resistance
(N/100mm)
Short Term Long Term Short Term Long Term
2~30 13.2 162 6 5 3000 1000 3000 1000
32~48 13.8 175 8 6 3000 1000 3000 1000
50~72 14.6 205 12 6 3000 1000 3000 1000
74~96 16 230 12 8 3000 1000 3000 1000
98~144 17.6 285 12 12 3000 1000 3000 1000
>144 Available upon customer’s request

Note:

1. For flame retardant cable, outer sheath can be made of low-smoke halogen-free (LSZH) material, and the type is GYTZS.

2.Upon customer’s request, cables with longitudinal color strip on outer sheath can be offered. More details, please refer to GYTA series.

3. Special cable structure can be designed and manufactured on customer’s request.

Optical Characteristics:

Fiber type G.652D(9/125)
Loose tube PBT Loose Tube
Attenuation@1310nm ≤ 0.36 dB/km
Attenuation@1550nm ≤ 0.22 dB/km
Temperature range Transport/Operating -40~+70°C

Standards:

GYTA53 cable complies with standard YD/T901-2001 as well as IEC60794-1

Storage/Operating Temperature: -40℃ to + 70℃

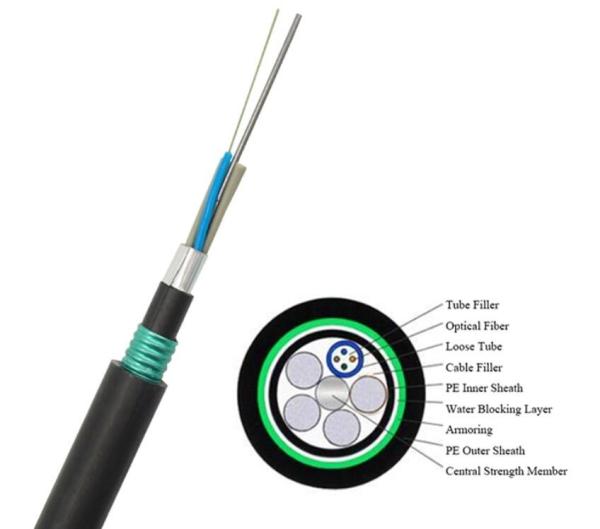

Drawings GYTA53 armoured direct fiber optical cable
