Specifications
Brand Name :
Weiroct
Model Number :
FTTx
Certification :
ISO-9001
Place of Origin :
China
MOQ :
1KM
Price :
USD
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
1000 Kilometre / Month
Delivery Time :
5-7 Days
Packaging Details :
2KM/Roll/Carton Box
Type :
Optical Fiber Cable
No.of Fiber :
24
Use :
FTTx Solutions
Single-mode Fiber :
G652D,G657A1,G657A2
Application :
FTTH, FTTx
Operate Temperature :
-40℃- +70℃
Product Name :
Outdoor Single Mode Fiber Optic Cable 24 Core ADSS OFC Fiber Optic Cable
Wavelength :
1310/1550nm
Description

Outdoor Single Mode Fiber Optic Cable 24 Core ADSS OFC Fiber Optic Cable

Description

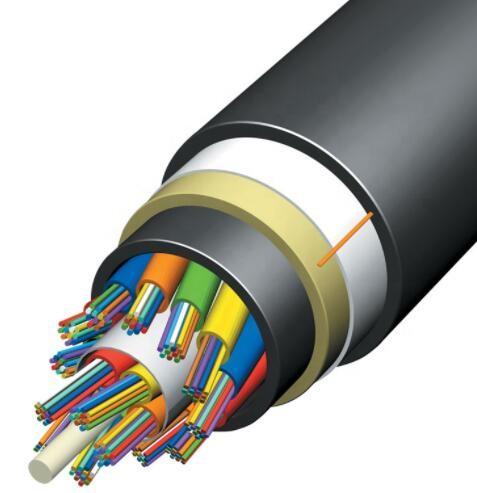

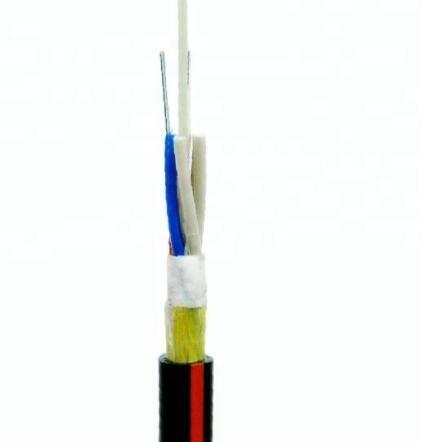

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics.

The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP

(Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.

After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath.

After stranded layer of aramid yarns are applied over the inner sheath as strength member,

the cable is completed with PE or AT (anti-tracking) outer sheath.

Applications

Remote base station communication such as RRU or BBU.

Smart substation and CATV Outdoor application.

Emergency access to optical fiber communication.

Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable.

Features

Good mechanical and temperature characteristics.

Good lateral compression and flexibility.

Small diameter, light weight, easy to connect, and support large capacity data transmission.

Mini armored layer used to decrease the outer diameter and cable weight, also convenient for laying and splice.

Outer jacket material has the advantages of water proof, flame retardant, environmental protection.

Cable parameters

No. of cable
4
8
12
24
48
72
144
Fiber Model
G.652D
Design(Strength Member + Tube &Filler)
1+5
1+6
1+12
Central Strength
Member
Material
FRP
Diameter(±0.05)mm
1.5
2.0
Loose Tube
Material
PBT
Diameter(±0.06)mm
1.72
2.0
Thickness(±0.03)mm
0.30
0.32
The Max. Core NO./Tube
4
6
12

Filler Rope
Material
LDPE
Color
White
Diameter(±0.06)mm
1.7
2.0
Water Blocking layer(Material)
Flooding Compound
Outer
Sheath
Material
MDPE
Thickness(±0.2)mm
1.8
Cable Diameter
8.3
8.9
9.4
13.2
Cable Weight
55
65
75
160

Min. bending radius
Without Tension
10.0×Cable -φ
Under Maximum Tension
20.0×Cable -φ
Temperature range
(℃)
Installation
-20~+60
Transport & Storage
-40~+70
Operation
-40~+70
