Outdoor 24 48 Core GYFTY Fiber Optic Cable With FRP Strength Member
Outdoor 24 48 Core GYFTY Fiber Optic Cable With FRP Strength Member
Outdoor 24 48 Core GYFTY Fiber Optic Cable With FRP Strength Member
Outdoor 24 48 Core GYFTY Fiber Optic Cable With FRP Strength Member
Outdoor 24 48 Core GYFTY Fiber Optic Cable With FRP Strength Member
Outdoor 24 48 Core GYFTY Fiber Optic Cable With FRP Strength Member
Outdoor 24 48 Core GYFTY Fiber Optic Cable With FRP Strength Member
Outdoor 24 48 Core GYFTY Fiber Optic Cable With FRP Strength Member
Outdoor 24 48 Core GYFTY Fiber Optic Cable With FRP Strength Member
Outdoor 24 48 Core GYFTY Fiber Optic Cable With FRP Strength Member
Specifications
Brand Name :
Weiroct
Model Number :
FTTx
Certification :
ISO-9001
Place of Origin :
China
MOQ :
1KM
Price :
USD
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
1000 Kilometre / Month
Delivery Time :
5-7 Days
Packaging Details :
2KM/Roll/Carton Box
Type :
Optical Fiber Cable
No.of Fiber :
24
Use :
FTTx Solutions
Single-mode Fiber :
G652D,G657A1,G657A2
Application :
FTTH, FTTx
Operate Temperature :
-40℃- +70℃
Product Name :
GYFTY Outdoor Aerial 24 48 Core Fiber Optic Cable with FRP Strength Member Fiber Optic Cable
Wavelength :
1310/1550nm
Description

GYFTY Outdoor Aerial 24 48 Core Fiber Optic Cable with FRP Strength Member Fiber Optic Cable

The fibers, 250μ m, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.

Applicable fields:
Long-distance telecom, LAN in high-voltage area or access to telecom network
Especially for power transmission system. excessive thunder areas and high electromagnetic interference.
Recommended layings methods
High-voltage area, Aerial

Advantages:
1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and
environmental characteristics.
3. Anti-electromagnetism ability.
4. Small cable diameter, light cable weight, easily to install.

Fiber count
2-288 cores
Out sheath
Black Polyethylene (PE)
Support
FTTH FTTB FTTX Network
Application
Outdoor Aerial
Installation tensile
25KN
Certification
ISO9001/CE/RoHS
Standard
IEC 6079-1;IEEE 1222-2004
Color
Deafult / OEM

Fiber Parameter

No. Items Unit Specification
G.652D
1 Mode Field Diameter 1310nm μm 9.2±0.4
1550nm μm 10.4±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error μm ≤12.0
8 Cable Cutoff Wavelength nm λcc≤1260
9 Attenuation (max.) 1310nm dB/km ≤0.36
1550nm dB/km ≤0.24

Cable Parameters

Items Specifications
Fiber Count 2~24
Colored Coating Fiber Dimension 250µm±15µm
Color Blue, Orange, Green, Brown, Gray, White
Loose Tube Dimension 2.10mm±0.05mm
Material PBT
Color Natural
Strength Member Diameter 1.0mm
Material Steel
Outer Jacket Dimension 8.0mm±0.1mm
Material PE
Color Black

Mechanical and Environmental Characteristics

Items Unite Specifications
Tensio (Long Term) N 600
Tension (Short Term) N 1500
Crush (Long Term) N/10cm 300
Crush (Short Term) N/10cm 1000
Min. Bend Radius (Dynamic) mm 20D
Min. Bend Radius (Static) mm 10D
Installation Temperature ℃ -20~+60
Operating Temperature ℃ -40~+70
Storage Temperature ℃ -40~+70

Outdoor 24 48 Core GYFTY Fiber Optic Cable With FRP Strength Member

Outdoor 24 48 Core GYFTY Fiber Optic Cable With FRP Strength Member

Outdoor 24 48 Core GYFTY Fiber Optic Cable With FRP Strength Member

Outdoor 24 48 Core GYFTY Fiber Optic Cable With FRP Strength Member

Outdoor 24 48 Core GYFTY Fiber Optic Cable With FRP Strength Member

Application


Outdoor 24 48 Core GYFTY Fiber Optic Cable With FRP Strength Member
Outdoor 24 48 Core GYFTY Fiber Optic Cable With FRP Strength Member

Outdoor 24 48 Core GYFTY Fiber Optic Cable With FRP Strength Member

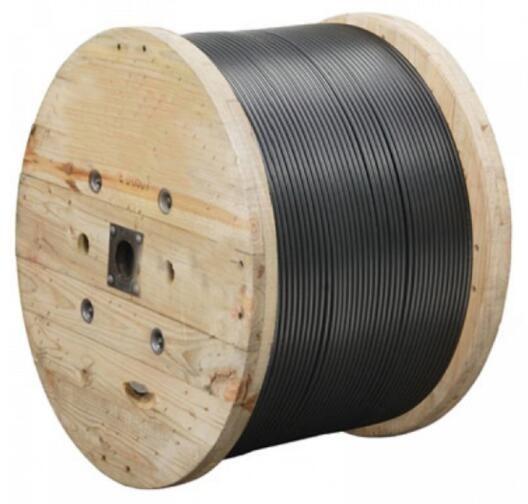

Packing
Outdoor 24 48 Core GYFTY Fiber Optic Cable With FRP Strength Member
