Specifications
Brand Name :
WRC
Model Number :
GYTS GYFTY GJYXCH GYXTW ADSS
Certification :
ISO9001
Place of Origin :
China
MOQ :
1KM
Price :
USD0.47-USD16/Km
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000 Kilometre / Month
Delivery Time :
5~20 DAYS
Packaging Details :
1-2KM/Roll/Carton Box
Jacket :
LSZH/PVC/HDPE
Outer Sheath Color :
Orange
Fiber Type :
OM3
Application :
Telecommunication
Strength Member :
Aramid Yarn/Metal wire
Core :
4/6/8/12
Product Name :
Self-supporting bow-type 1 2 4 6 8 12 core ftth fiber optic cable duct drop cables GJXFH/GJXH ftth cable
Description

Self-supporting bow-type 1 2 4 6 8 12 core ftth fiber optic cable duct drop cables GJXFH/GJXH ftth cable

Model: GJXH / GJXFH / GJYXCH / Ftth Cable

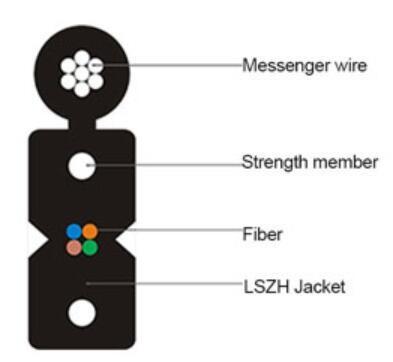

1. GJXH- The optical fiber unit is positioned in the central. Two parallel steel wire are placed at the two sides. Then, the cable is completed with a black or color LSZH or PVC sheath.

2. GJXFH- The optical fiber unit is positioned in the central. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then, the cable is completed with a black or color LSZH or PVC sheath.

3. GJYXCH-The optical fiber unit is positioned in the centre. Two parallel steel wires are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black LSZH sheath.

4. Ftth Cable- The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced member FRP are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.

Application:

1. Access network

2. FTTH cable (Fiber to the home)

3. Used in indoor cabling

4. Used for parch cord or pigtail

Features:

1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.

2. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.

3. Simple structure, light weight and high practicability.

4. LSZH Jacket: Low smoke, zero alogen and flame retardant sheath.

Fiber Parameters

No. Items Unit Specification
G.657A1
1 Mode Field Diameter 1310nm μm 9.0±0.4
1550nm μm 10.1±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error μm ≤12.0
8 Cable Cutoff Wavelength nm λcc≤1260
9 Attenuation (max.) 1310nm dB/km ≤0.35
1550nm dB/km ≤0.21
10 Macro-Bending Loss 1turn×10mm radius @1550nm dB ≤0.75
1turn×10mm radius@1625nm dB ≤1.5

Cable Parameters

Items Specifications
Fiber Count 2
Colored Coating Fiber Dimension 250±15μm
Color Blue, Orange
Strength Member Dimension 0.5mm
Material FRP
Self-Supporting Member Dimension 1.0mm
Material Steel Wire
Jacket Dimension 5.2±0.2mm×2.0±0.1mm
Material LSZH
Color Black

Mechanical and Environmental Characteristics

Items Unite Specifications
Tension (Long Term) N 300
Tension (Short Term) N 600
Crush (Long Term) N/10cm 1000
Crush (Short Term) N/10cm 2200
Min. Bend Radius (Dynamic) mm 20D
Min. Bend Radius (Static) mm 10D
Installation Temperature ℃ -20~+60
Operating Temperature ℃ -40~+70
Storage Temperature ℃ -40~+70
Self Supporting Bow Type 1 2 4 6 8 12 Core FTTH Fiber Optic Cable GJXFH GJXH
Self Supporting Bow Type 1 2 4 6 8 12 Core FTTH Fiber Optic Cable GJXFH GJXH Self Supporting Bow Type 1 2 4 6 8 12 Core FTTH Fiber Optic Cable GJXFH GJXH
Self Supporting Bow Type 1 2 4 6 8 12 Core FTTH Fiber Optic Cable GJXFH GJXH
Self Supporting Bow Type 1 2 4 6 8 12 Core FTTH Fiber Optic Cable GJXFH GJXH
Self Supporting Bow Type 1 2 4 6 8 12 Core FTTH Fiber Optic Cable GJXFH GJXH
More products
Self Supporting Bow Type 1 2 4 6 8 12 Core FTTH Fiber Optic Cable GJXFH GJXH

Packaging & Shipping

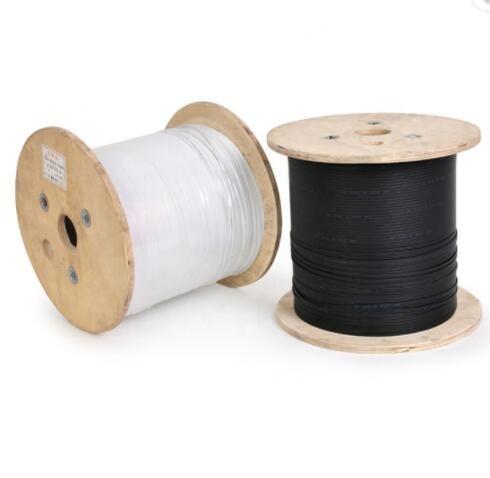

1) Packing Lengths: 1000m/roll, 2000m/roll. Other lengths available according to client's Request;

2) Inner packing: Wooden reel, plastic reel.

3) Outer packing: Carton box, pull box, pallet.

4) Other packing available according to client's Reques.

FAQ

1. Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.

2. What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.

3. What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

4. How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.

5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
