1 2 4 6 Core FTTH Indoor Drop Cable With LSZH Jacket
1 2 4 6 Core FTTH Indoor Drop Cable With LSZH Jacket
1 2 4 6 Core FTTH Indoor Drop Cable With LSZH Jacket
1 2 4 6 Core FTTH Indoor Drop Cable With LSZH Jacket
1 2 4 6 Core FTTH Indoor Drop Cable With LSZH Jacket
1 2 4 6 Core FTTH Indoor Drop Cable With LSZH Jacket
1 2 4 6 Core FTTH Indoor Drop Cable With LSZH Jacket
1 2 4 6 Core FTTH Indoor Drop Cable With LSZH Jacket
1 2 4 6 Core FTTH Indoor Drop Cable With LSZH Jacket
1 2 4 6 Core FTTH Indoor Drop Cable With LSZH Jacket
1 2 4 6 Core FTTH Indoor Drop Cable With LSZH Jacket
1 2 4 6 Core FTTH Indoor Drop Cable With LSZH Jacket
Specifications
Brand Name :
Fiber Optical Cable drop in cable FTTH indoor drop cable
Model Number :
GJFJBV,GJXH
Certification :
ISO9001
Place of Origin :
China
MOQ :
1KM
Price :
USD0.50-USD15/Km
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 Kilometre / Month
Delivery Time :
5~20 DAYS
Packaging Details :
2KM/Roll/Carton Box
Jacket :
LSZH/PVC/HDPE
Outer Sheath Color :
Orange
Fiber Type :
OM3
Application :
Telecommunication
Strength Member :
Aramid Yarn/Metal wire
Core :
4/6/8/12
Product Name :
Fiber Optical Cable drop in cable FTTH indoor drop cable
Description

Fiber Optical Cable drop in cable FTTH indoor drop cable

Product Description:

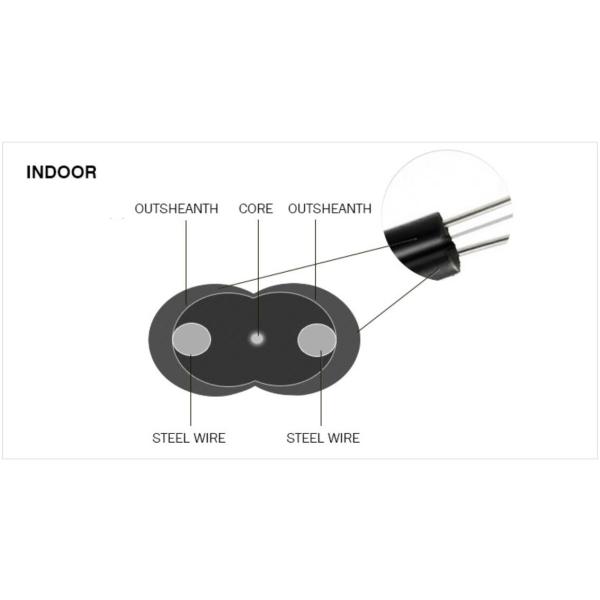

The cable consists of individually color coded 900µm secondary coated fibers reinforced with aramid yarns and covered with UV and flame resistant LSZH jacket.The cable cross section is fig 8 made with a steel wire strength member.

Item
Technology parameter
Cable type
Drop Cable
Cable Count
1 2 4 6 8 12
Fiber color
Green, Yellow
Fiber type
9/125 (G657A2)
Sheath color
Black and white
Sheath material
LSZH
Cable dimension (mm)
3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1)
Cable weight (Kg/km)
15
Min. bending radius (mm)
10 (Static) 25 (Static) 30 (Static) 60 (Static)
Attenuation (dB/km)
0.4 at 1310nm, 0.3 at 1550nm
Short term tensile ( N)
200; 600
Crush resistance (N/100mm)
1000; 2200
Operation temperature (℃)
-20~+70℃
Technical data:
strength member
material
Galvanized steel wire/FRP/KFRP
diameter
2*(0.5~0.8)mm
Self support Messenger wire
material
Galvanized steel wire
diameter
1.0mm
Outer sheath
material
LSZH
diameter
1.8±0.2mm
Cable size (Height * width)
2.0(±0.1) mm × 5.2(±0.2)mm
Cable sheath thickness
Max. 0.8mm/Min. 0.4mm
Messenger sheath thickness
0.5~0.7mm
Cable weight
1~2core
18.2KG
4-6 core
18.5KG
8~24core
54KG

Mechanical and Environmental Characteristics

Items Unite Specifications
Tension(Long Term) N 500
Tension(Short Term) N 1000
Crush(Long Term) N/10cm 1000
Crush(Short Term) N/10cm 2200
Min. Bend Radius(Dynamic) mm 20D
Min. Bend Radius(Static) mm 10D
Installation Temperature ℃ -20~+60
Operating Temperature ℃ -40~+70
Storage Temperature ℃ -40~+70
1 2 4 6 Core FTTH Indoor Drop Cable With LSZH Jacket
1 2 4 6 Core FTTH Indoor Drop Cable With LSZH Jacket
1 2 4 6 Core FTTH Indoor Drop Cable With LSZH Jacket
1 2 4 6 Core FTTH Indoor Drop Cable With LSZH Jacket
1 2 4 6 Core FTTH Indoor Drop Cable With LSZH Jacket
FAQ
Q1: Are you manufacturer?
A: Yes, we are the manufacturer since the year 2002.

Q2: What's delivery time?
A: Mass production time needs 1-2 week.

Q3: What’s your payment terms?
A: T/T, L/C.

Q4: What kind of cable do you produce?
A: We’re specialized in manufacturing Coaxial Cable, such as RG Series and Trunk Cable, Optical Fiber Cable, such as ADSS and FTTH, and Lan Cable, such as CAT5E, CAT6 and CAT7.

Q5: What’s your annual capability?
A: We are specialized in manufacturing coaxial cable, optical fiber cable and Lan Cable, whose annual output reaches to 350,000 kilometers, 2 million kilometers’ core and 600,000 boxes separately.

Q6: Do you have OEM and ODM?
A: Yes, we could provide professional suggestions and best solutions to your requirements.

Q9: May I get free sample?
A: Normally, our samples for charger are free. If the sample quantity is large, it will be charged. However, the sample fee will be refunded when customer place bulk orders for that item.

Q10: What's your trade term ?
A: We can accept FOB, CIF, CFR, EXW, etc.
