Specifications
Brand Name :
FOCUSIGHT
Model Number :
FS-SHARK-1100
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Supply Ability :
20 Machines/Month
Delivery Time :
60 Days
Packaging Details :
Plywood
Maximum Size :
1100mm * 900mm
Minimum Size :
400mm * 300mm
Speed :
220m / min
Power :
28kw
Paper Weight :
200 ~ 650 GSM
Machine Mechanical Size :
9500mm (L) * 3300mm (W) * 2000mm (H)
Machine Weight :
8 Tons
Description

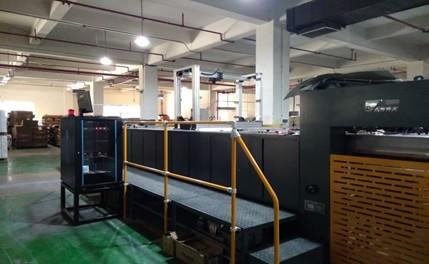

Focusight Vision System for Bigger 1100mm Size Duplex Folding Boxes

MODEL- BIG SHEET HIGH SPEED QUALITY INSPECTION MACHINE FS-SHARK-N1100

Technical Data

FS-SHARK-N1100
Paper Type / gsm 200 ~ 650 g / m 2
Max. Speed 220m / min
Max. Sheet size 1100mm * 900mm
Min. Sheet size 400mm * 300mm
Corrugated Weight B, E, F Type
Mechanical Platform Dimension 9500mm * 3300mm * 2000mm
Total Power 28kw
Total Weight 8 Tons

Performance Parameters of Inspection System

Product Type FS-SHARK-N1100-P2N1
Inspection FOV 1100mm (Width)
Imaging Resolution (mm)

Front Imaging Resolution (Regular Printing Side): 0.15mm * 0.12mm (7k color camera)

Front Imaging Resolution (Laminating, Varnishing & Embossing Side): 0.137mm * 0.12mm (8k w / b camera)

Back side Imaging Resolution (Laminating, Varnishing & Embossing Side): 0.137mm * 0.12mm (8k w / b camera)
Regular Printing (when the defect contrast is over grade 40)

1. Minimum Inspection Area of Regular Defects, such as Printing Missing, Dirty Spot and stuff like that: ≥0.3 mm2

2. Minimum Inspection Area of Foil Stamping Defects:≥0.3mm2

3. Print Misregistration Inspection: ≥0.2mm

4. Die Cutting Misregistration Inspection: ≥0.2mm

5. Gravure Blade Streak: vertical stripes with width over 0.1mm, and contrast over grade 40 are detectable

6. Local Color Difference Inspection ΔE≥3

0% Chance for Defected Cartons

  • High-grade printing Quality control for all types of big cartons;
  • Up to three top cameras, one reverse side camera and area cameras
  • The unique lighting system enables the inspection of even highly reflective substrates
  • Focusight inspection machine allows you to offer your customers quality assurance for packaging products with high added value such as luxury goods and pharmaceuticals.
  • Focusight combines LED lighting technology and 4K or 8K camera system with high-performance data processing and image analysis software,
  • This technology checks the quality of carton blanks at a speed of up to 250 m/min.
  • It gives you reliable control of finishes such as hot foil application, holograms, embossings or coating patterns.

Detectable Objects on Big Sheet

Note:(★ Detectable; ☆ Partially Detectable; △ Undetectable)

Product Type FS-SHARK-N1100-P1 FS-SHARK-N1100-P2 FS-SHARK-N1100-P2N1
Applicable Presswork FBB, SBS paperboard, Offset paperboard, Coated free sheet paper , Gold or Silver coated paperboard, Laser paperboard
Regular Printing ★ ★ ★
Color Misregistration & Variation ★ ★ ★
Die Cutting Misregistration ★ ★ ★
Foil Stamping ★ ★ ★
Holographic Stripe ★ ★ ★
Variable Barcode & QR code ★ ★ ★
Laminating △ ★ ★
Vanishing Misregistration △ ★ ★
Vanishing Missing / Scratch △ ★ ★
Convex Oil Misregistration △ ★ ★
Convex Oil Missing / Scratch △ ★ ★
Embossing Mis registration △ ★ ★
Silkscreen △ ★ ★
Scratch ☆ ★ ★
Reverse Side big defect ★ ★ ★
