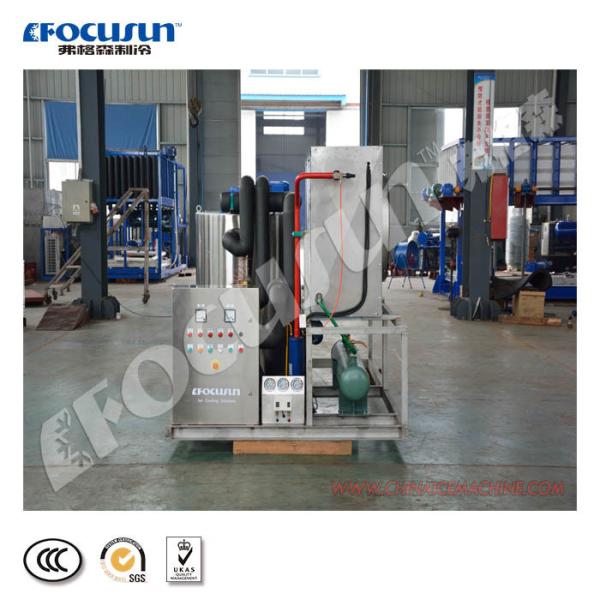

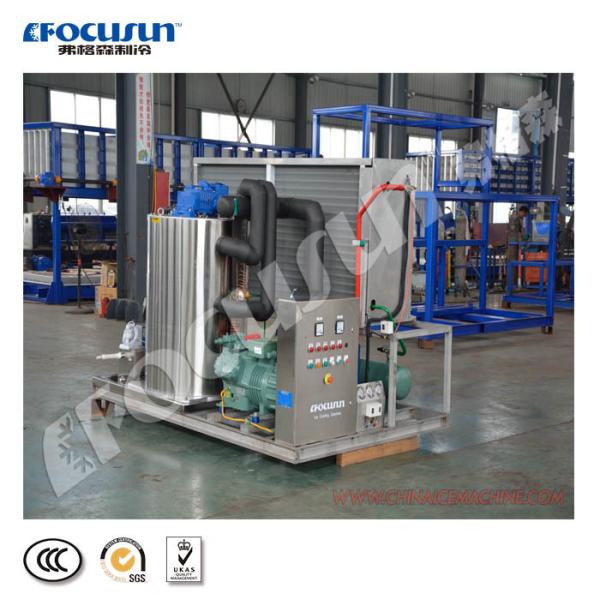

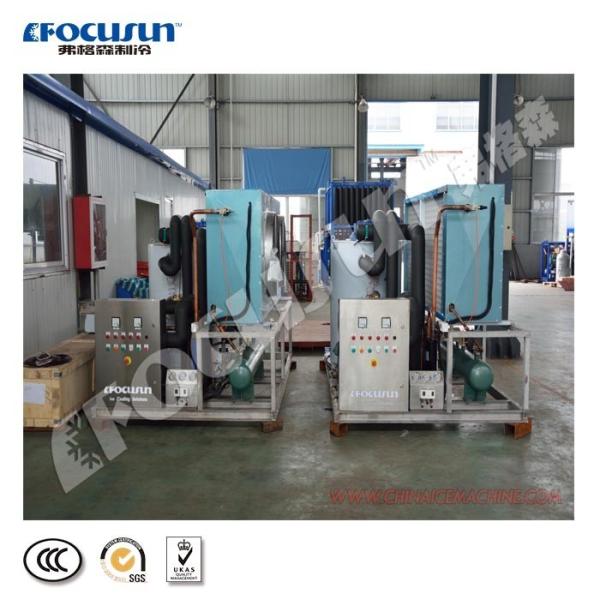

FLAKE ICE MACHINE

The multiple applications of this type of ice from the industry to the hotel industry, with any configuration: compact machine. Remote group or connected to central cold.
Acquiring a flake ice machine benefits from the support of the best team of ice experts: It is a machine designed to make 100% ice water.
This product on the inside of the evaporator, vertical cylindrical. Made of steel, with an internal labyrinth for the circulation of the refrigerant. Which is isolated to avoid loss of performance of the machine. The inner face is nickel-plated, and has an outer stainless steel jacket.
Scale ice is usually large, flat, thin pieces of ice mainly used in the commercial fishing and concrete cooling industries, typically in large quantities.
Made on a large vertical or horizontal drums, scale ice is formed on either the inner or outer surface of the drum by pouring a film of water over it, then contact freezing it into a thin sheet of ice. This ice is sub-cooled down to -7°C in order to make it brittle, then cracked off by a harvesting blade. The ice then falls by gravity into the ice store. These large, flat pieces are good for layering, and are available with a single evaporator up to 50 tonnes.
The vertical style of drum is usually stationary, with the ice formed on the inner surface. The harvesting blade is motor driven around this surface, cracking it off. The horizontal style of drum is usually rotating, with the ice formed on the outer surface. As the drum rotates, a stationary blade cracks the ice from the surface

Main Features

Power Configuration: Standard power is 380V/3P/ 50Hz. The electrical system can be adjusted according to actual situation and should be confirmed when ordering.

Unit Configuration: Bitzer or Bock piston compressor and air-cooling condenser;

Once provided water and power in scene, the flake ice maker can be put into operation immediately.

Refrigerant Configuration: New type of environmental friendly refrigerant R404A;

Ice Storage Configuration: Each ice flake maker is equipped with stainless steel ice storage with certain capacity.

Machine Parts

Name: Fresh water Flake ice machine/ Flake Ice Making Machines

Brand: FOCUSUN

Original: Germany

Germany Bitzer compressor, Siemens PLC, Schneider electric, Danfoss valves, etc all are famous suppliers.

Main Features

Internally-scarping ice skate can help reduce energy consumption and prevent leakage of refrigerant.

Stainless steel materials,advanced processing equipment and heat treatment processing ensure the best heat transfer efficiency.

The design of large water receiving plate can prevent water leaking at the bottom of evaporator.

Machine Application

It is mainly used in the fishing industry, particularly by processors with large ice requirements, and in the concrete industry where huge volumes are often required in hot climates, thus requiring cold storage.

Main Features

Irregular ice flakes with size about 40*40mm and thickness around 1.5-2.5 mm.

The thin ice can be directly used for stirring and mixing refrigerated materials.

No accurate edges and corners so it will not damage the surface of the cooled object.

Large contact area and fast cooling speed.

Easy to crush and mold.
