Specifications
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory
Condition :
New
Place of Origin :
Other Country
Brand Name :
focusun
Ice Shape :
block ice
Voltage :
380v/3p/50hz
Power :
120kw
Dimension(L*W*H) :
50000*1200*2300mm
Weight :
19190 KG
Warranty :
1.5 years, 15months
Key Selling Points :
Easy to Operate
Ice storage capacity :
Other
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
3 years
Core Components :
Other
Application :
Industrial, Fresh-keeping
Keyword :
Block Ice Plant
Compressor :
Bitzer
Cooling way :
Water Cooling
Refrigerant :
R404A/R22
Material :
Aluminum Alloy
Type :
Automatic Ice Maker
Ice size :
Customized Size
Capacity :
27 tons/24hrs
Packaging Details :
WOODEN BOX
Supply Ability :
1 Acre/Acres per Month
Price :
$6,888.00/sets >=1 sets
MOQ :
1pc
Description
Our Company
Milky White 27 Tons Direct Refrigeration Block Ice Maker with Video Outgoing-Inspection
Milky White 27 Tons Direct Refrigeration Block Ice Maker with Video Outgoing-Inspection
Milky White 27 Tons Direct Refrigeration Block Ice Maker with Video Outgoing-Inspection

About Focusun

FOCUSUN is a pioneer in the fields of ice making and vacuum pre-cooling. With the technology and experience accumulated over the years, we use advanced technology of refrigeration and mechanical transmisson to provide quality service to more than 18,000 professional clients in 88 countries around the world.We specialized in designing and manufacturing all kinds of high quality ice machines and cooling systems.

Our main products include all kinds of ice making machine,cold storage,vacuum cooler,snow making machine,mine cooling system,concrete cooling system,chemical reactor cooling system and so on.

Product Description
Milky White 27 Tons Direct Refrigeration Block Ice Maker with Video Outgoing-Inspection

Focusun utilizes both direct refrigeration technology and brine refrigeration technology to meet your different requirements. The standard weight & size of block ice Focusun produces are listed in the form below. Focusun can also customize the size of the block ice to meet your needs and requirements.
Block ice has a large dimension but has small contact area so it does not melt easily. It is usually cut into different pieces for different uses in ice sculpture, sea shipping and fish vessels. The small pieces of block ice can be also be used for various purposes. There will be a little loss because the ice will thaw partly when crushed. Focusun offers both transparent and milky white ice for your preference.

Milky White 27 Tons Direct Refrigeration Block Ice Maker with Video Outgoing-Inspection
Milky White 27 Tons Direct Refrigeration Block Ice Maker with Video Outgoing-Inspection

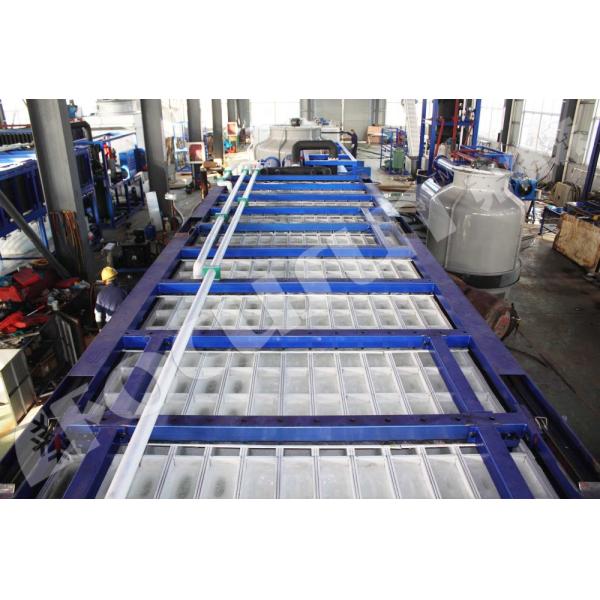

Aluminum direct refrigeration block ice machine is also called direct refrigeration block ice machine, direct fast cooling ice machine (block ice machine). The principle is to use the specially designed cooling channel of the ice making box to carry on the circulation of the low temperature refrigerant, so as to rapidly cool the water in the box and realize rapid ice making.

Direct refrigeration block ice machine needs no brine tank, hoist, ice thawing tank and the water doe not need to add industrial salt. There is no need to change ice buckets and labors does not need 24 hours working time.

Milky White 27 Tons Direct Refrigeration Block Ice Maker with Video Outgoing-Inspection
Milky White 27 Tons Direct Refrigeration Block Ice Maker with Video Outgoing-Inspection
Milky White 27 Tons Direct Refrigeration Block Ice Maker with Video Outgoing-Inspection

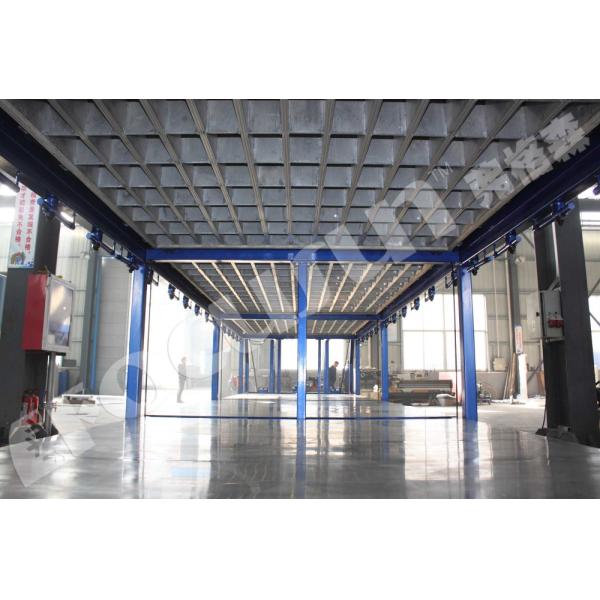

By overall installation,all equipments are installed on a steel frame,which is easy for containerized transportation. Easy installation. With power supplied, the machine can be put into operate immediately.

The standard direct block ice machine standard power supply is 380V / 3P / 50Hz, according to the actual situation to change the electric system, but must be specified when ordering.

Detailed Images
Milky White 27 Tons Direct Refrigeration Block Ice Maker with Video Outgoing-Inspection
Milky White 27 Tons Direct Refrigeration Block Ice Maker with Video Outgoing-Inspection

Working Principle

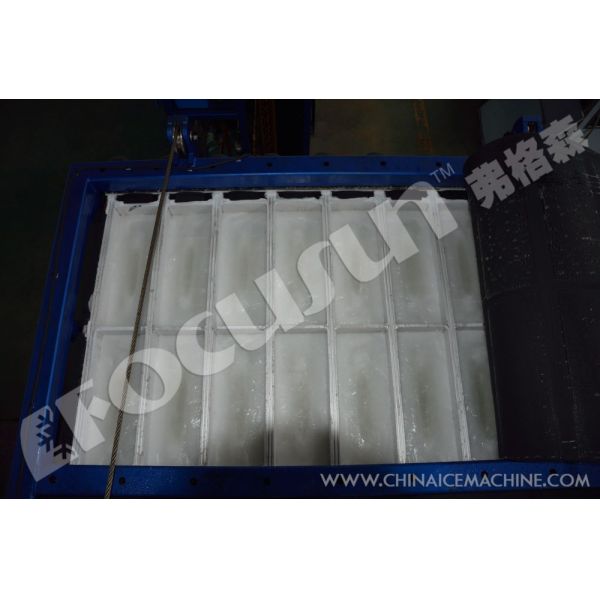

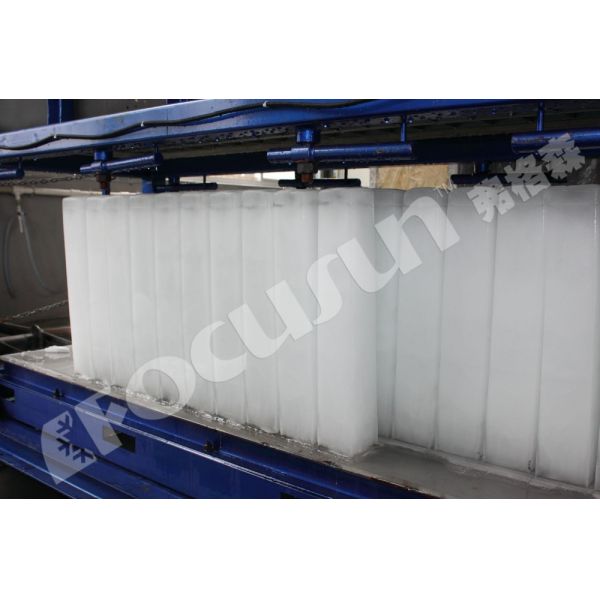

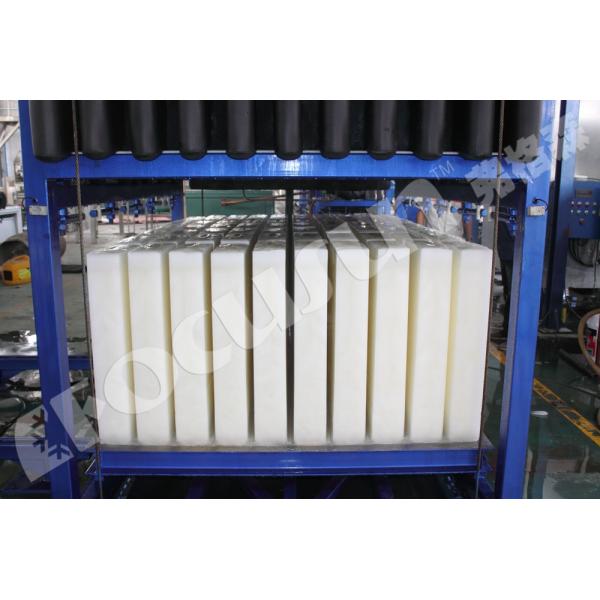

Water will be added automatically to ice cans and directly exchange heat with the refrigerant. When ice making is finished,the refrigeration system will change into ice doffing mode automatically in which HPHT refrigerant air will release heat to melt the surface of block ice.All the ice blocks will fall down in 25 mins.

Milky White 27 Tons Direct Refrigeration Block Ice Maker with Video Outgoing-Inspection

Features:

- Adopt dense special formula aluminum alloy as evaporator, improve heat exchange effect, real rust prevention and corrosion protection, guarantee service life


- The water contact between the water tank and the water is made of aluminium plate, and the material is not rusty

- Thermal defluorination. In the inlet water temperature of 20 degrees, water temperature, the ice doffing time is 23 minutes, fast and energy saving

Milky White 27 Tons Direct Refrigeration Block Ice Maker with Video Outgoing-Inspection
Milky White 27 Tons Direct Refrigeration Block Ice Maker with Video Outgoing-Inspection
Milky White 27 Tons Direct Refrigeration Block Ice Maker with Video Outgoing-Inspection

- The overall modular equipment makes transportation, moving, field installation very simple
- According to different ice size, we are tailor-made for customers for each direct refrigeration block ice machine

- The direct ice block ice machine can be made into a container type container, and the ice making capacity of 20 feet container is 6 tons / day, and the maximum ice making capacity of the 40 foot container is 20 tons / day
- Customers can choose the automatic ice transfer device which can be used connected to the power supply. Ice can be automatically transported to the outside of the machine, greatly improving the efficiency of artificial ice moving.
