Specifications
Applicable Industries :
Food & Beverage Factory, Energy & Mining, Food & Beverage Shops, Other
Condition :
New
Place of Origin :
China
Brand Name :
FOCUSUN
Ice Shape :
ICE BLOCK
Voltage :
220V - 440V
Power :
55
Dimension(L*W*H) :
8950*2000*2250
Weight :
11500 KG
Warranty :
1.5 years
Key Selling Points :
High quality & Long Service Life
Ice storage capacity :
Other
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1.5 years
Core Components :
PLC, Compressor
Compressor brand :
Bitzer
Application :
Industrial
Brand :
FOCUSUN
Product name :
Direct cooling block ice maker machine
Ice making capacity :
10 tons / day
Cooling way :
Water Cooled Condenser
Refrigerant :
R22 / R404A / R507
Ice block Size :
Customized
Control system :
Siemens PLC Program Control System
Compressor :
Bitzer
Expansion valve :
Danfoss Valve
Marketing Type :
Ordinary Product
Packaging Details :
1. Standard container.
2. A complete block ice maker contains: ice machine, cooling tower, water pump, water pipes and water pipe fittings.
3. Machine comes into use, customer only need prepare power for the machine.
4. All required components
Port :
Shanghai Port, China
Supply Ability :
10 Set/Sets per Quarter
Price :
$51,520.00/units 1-2 units
MOQ :
1pc
Description
Product Description

Highlights of the Focusun Block Ice maker machine

Siemens PLC Control System 10 Tons Per Day Block Ice Machine for Food Fishing Shops

Siemens PLC Control System 10 Tons Per Day Block Ice Machine for Food Fishing Shops

Siemens PLC Control System 10 Tons Per Day Block Ice Machine for Food Fishing Shops

Introduction

Conventional Ice Block Plant needs a large brine pool which needs long time to freeze frist. then you put ice can filled with water into the freezing pool, it takes too much time

It uses chilled brine water as a secondary refrigerant, circulates in a brine water tank and conduct with the water inside ice cans. Block ice fail to reach the food standards due to the pollution of chemical elements in the industrial brine water during the ice melting and doffing process. The ice is suit for fish industry, but is not applicable for human consumption.

Compare:

Our Direct technology advantage: not only for fish industry, but also for human consumption; more automatically. Disadvantage: just initial time investment is a little higher than brine technology.

Brine technology advantage: price is lower. Disadvantage: only for cooling purpose, can't be eaten; need more workers. Big brine tank not easy for shipment, so it needs customer build it locally with concreting.

Our FOCUSUN direct cooling block ice machine give the Best Solution:

The Ice modue consist of aluminium,The freon evaporate inside, freezing the ice directly

so,

1. It's direct freezeing type

2. Need fewer time, freezing 15kg block just needs 5.5 hours

3. Aluminium plate never corrode, food grade and sanitary

4. Don't need large room, hoist, noise, dirty pool, never

5. Compact system, Easy to transport ,easy to operate, easy to get enough more blocks

More details

Siemens PLC Control System 10 Tons Per Day Block Ice Machine for Food Fishing Shops

Siemens PLC Control System 10 Tons Per Day Block Ice Machine for Food Fishing Shops

Siemens PLC Control System 10 Tons Per Day Block Ice Machine for Food Fishing Shops

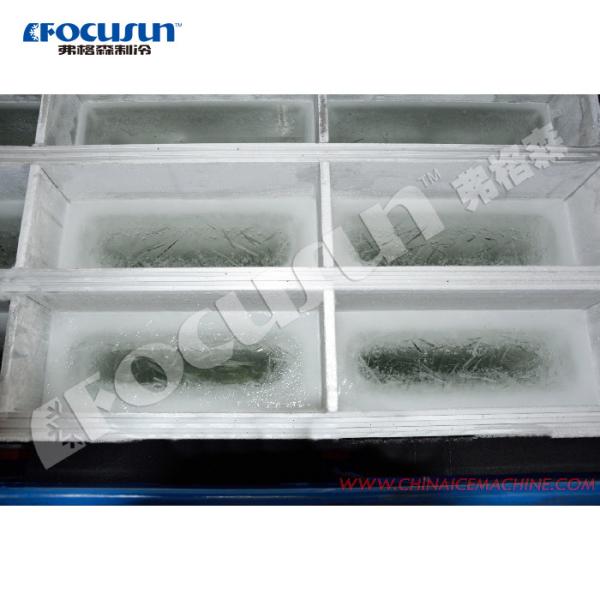

This innovative direct cooling or we can called direct refrigeration or direct freezing block ice machine using aluminum freezing plates. The material is completely conforms to food standards.

All parts of Focusun direct system block ice machine which contact with water are made of SUS304 or aluminum alloy material. The produced ice is clean and hygiene, complying with HACCP certification requirement. Ice could be eaten directly.

Our engineer go all over the world to help you to install & commission our block ice plant after you bought from us. Like in India, Canada, middle east, South Africa, the Philippines, Brazil, England, and Australia.

Block Ice Machine Work conditions:

1 All-in-one refrigeration systems.

2 Specially-designed evaporator, aluminum freezing plate, conforms to food standards.

3 Clean and sanitary block ice, suitable for human consumption.

4. Also can be used for cooling, fish cooling ,etc.

5 The refrigerant can be used globally, in line with national and international standards.

6 PLC controls and self-protects from breakdowns during water filling, ice making and harvesting.

7 Production capacity: 1tons to 30tons (if you choose non-containerized, no limitation about the largest capacity) with block ice weight of 5kg, 10kg, 15kg, 20kg, 25kg and 50kg)

Company Information

Focusun headquarter is located in Shanghai city, production and R&D team is located in Taizhou city, Jiangsu province, with more than 35,000 square meters of standardized modern plant. Our main products include all kinds of ice maker, such as block ice machine, tube ice machine, flake ice machine, cube ice machine, plate ice machine.

There must be one product suits your business! Professional sales teams combined with excellent working experience production. Bring products from factory directly to you, cost of different marketing channels saving.

Siemens PLC Control System 10 Tons Per Day Block Ice Machine for Food Fishing Shops

Siemens PLC Control System 10 Tons Per Day Block Ice Machine for Food Fishing Shops

Siemens PLC Control System 10 Tons Per Day Block Ice Machine for Food Fishing Shops

Siemens PLC Control System 10 Tons Per Day Block Ice Machine for Food Fishing Shops
