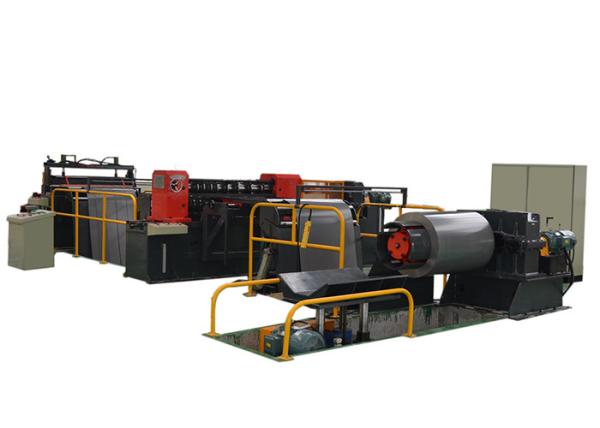

Automatic Silicon Steel Cutting Machine / Slitting Line For Silicon Steel Strip
Automatic Silicon Steel Cutting Machine / Slitting Line For Silicon Steel Strip
Specifications
Brand Name :
Zhutang
Model Number :
ZJX1250
Certification :
SGS, main parts with CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
80-90 days
Packaging Details :
Seaworthy wooden case packing
Coil material ID :
500mm
Coil width :
500-1200mm
Maximum coil weight :
5000kg
Sheet thickness :
0.15-0.35mm
Sheet width :
40-1200mm
Warranty :
12 months
Color :
optional
Application :
slitting strip
Description

Silicon Steel Cutting Machine , Automatic Slitting Line For Silicon Steel Strip

General Information

Silicon Steel Cutting Machine , Automatic Slitting Line For Silicon Steel Strip ZJX1250, which is mainly used to cut the coils of silicon steel strip into a certain width of the silicon steel strip, and then wind into the productive and processing equipment according to a certain number of curly tension. It is widely used in food, packaging, building materials, electrical and other metal processing industries

Main Parameters

Typical standard specifications of ZJX-1250 are shown below, however this can be modified in as requested.

1 Technical Specifications ZJX-1250
2 Inner Diameter of Coil 500mm
3 Width of Coil 500－1200mm
4 Weight of Coil 5000KG
5 Thickness of Sheet 0.15-0.35mm
6 Width of Sheet 40-1200mm
7 Max. Shearing Speed 80－120 m/min
8 Cutting burr ≤0.02mm
9 Max. Number of Strips 12
10 Straightness deviation of each edge 0.2mm/2m
11 Strip Width Accuracy ±0.1mm
12 Motor Power 55kw
