Semi Automatic Transformer Coil Winding Machine With Copper Or Aluminium Wire
Semi Automatic Transformer Coil Winding Machine With Copper Or Aluminium Wire
Specifications
Brand Name :
Zhutang
Model Number :
GDY-2T
Certification :
CE, SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
20-25 days
Packaging Details :
Seaworthy wooden case packing
Center height :
1000mm
Motor power :
5.5 kw
Winding speed :
0-80rpm
Speed gear :
2 PCS
Max loading :
2000kg
Wire material :
copper or aluminium
Material type :
flat or round wire
Tailstock :
live center
Description

Semi Automatic Transformer Coil Winding Machine With Copper Or Aluminium Wire

Description

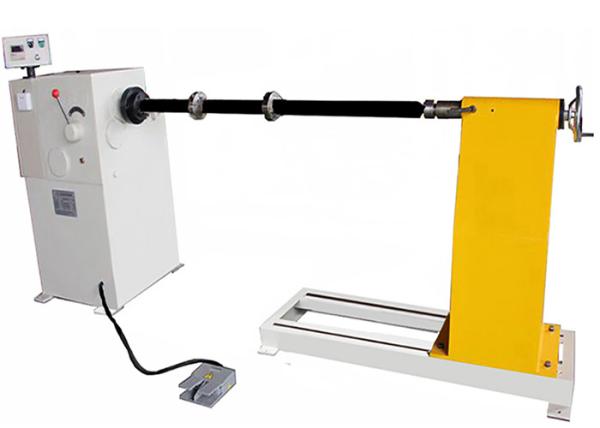

Semi Automatic Transformer Coil Winding Machine With Copper Or Aluminium Wire GDY-2T is a special machine to winding different coil for transformer and other similar products. The digital counter can count the number of the turns, it can also count reverse. The foot pedal can be used to switch the rotating directions, the foot pedal has two pressing pedal, one is for forward direction, another is for reversal direction. The winding speed of the machine can be adjusted stepless through a potentiometer on the board.

Main Components

1.Main frame, it is steel welded frame

2.Gearbox, it is used to make the winding shaft rotate

3.Tailstock, it is used to support the coil, and a pneumatic cylinder is used to drive the live center

4.Electric control cabinet

5.Foot pedal

Main Parameters

Typical standard specifications of GDY-2T are shown below, however these can be easily modified as requested.

Shaft Height from Floor: 1000mm
Square Shaft Size: 40*40*1500mm
Flange Square Hole Size: 40*40mm
Working Torque: 1500 N.M
Winding Speed: 0-80rpm
Speed Gear: 2 pcs
Max. Finished Coil Height: 1200mm
Counting Range: 0-9999.9
Max. Loading Capacity:2 000KG
Motor Power: 5.5 KW
Colour: optional
Machine Dimension(L*W*H): 2800*700*1400mm
