1200mm Height Transformer Coil Winding Machine With Automatic Laying Wire
1200mm Height Transformer Coil Winding Machine With Automatic Laying Wire
Specifications
Brand Name :
Zhutang
Model Number :
ZPX1200
Certification :
SGS, Main parts with CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
30-35days
Packaging Details :
seaworthy packing
Shaft height from floor :
900mm
Function :
winding transformer coil
Wire material :
copper or aluminium
Max. finished coil height :
1200mm
Motor power :
5.5kw
Rotating speed :
0-100rpm
Round wire :
0.3-5.0mm
Flat wire size :
5x12mm
Description

1200mm Height Transformer Coil Winding Machine With Automatic Laying Wire

Product Description

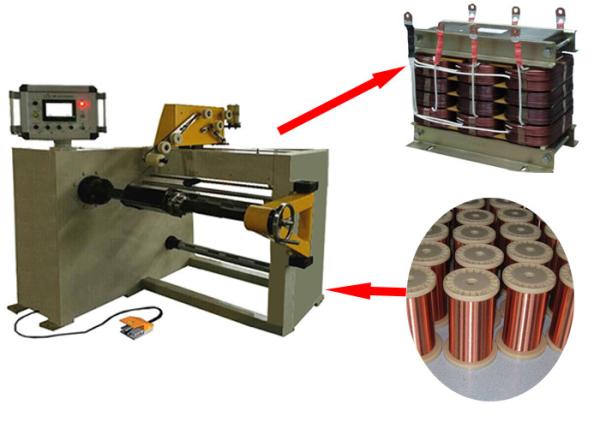

1200mm Height Transformer Coil Winding Machine With Automatic Laying Wire ZPX1200 is a kind of special equipment to be used to winding transformer coils and other similar products. The max height of the finished coil can be 1200mm, which can be used to manufacture big sized transformer. 0.75kw servo motor is used to driven wire guide, 5.5kw winding motor is used to drive the main square shaft, the rotating speed can reach 100 rpm. This winding machine can be used to wind different kinds of wire, such as copper wire, aluminium wire, flat wire and round wire to make different coils. The coil can be circle, oval and rectangular, etc. Wire guide is used to lay wire and insulation decoiler is with pneumatic brake to provide tension. With PLC based control system, it is very easy to operate the machine.

Main Features

The coil winding machine features slow starting--from the starting, for the sake of safety, the rotating speed is very slow, after several seconds ( from 0 to 5 seconds), the rotating speed reaches the preset speed; smooth running, during running, the machine is very stable; full function, this winding machine has many functions, such as counting, laying wire, speed regulation, and so on, and high automation, PLC based control system provides the machine with many automation function.

Main Parameters

Rotating Shaft Height: 900mm
Square Shaft Size: 40x40x1500mm
Shaft Mounting Mode: Welding on flange or demountable or 4-jaw chuck (optional)
Finished Coil Height Max.: 1200mm
Main Motor Power: 5.5kw
Rotating Speed: 0-100 rpm
Regulating Speed: Variable frequency and stepless speed regulation
Max. Flat Wire Size: 5X12mm
Round Wire Diameter: 0.3-5.0mm
Finished Coil OD. Max.: 1000mm
Max. Loading Capacity: 1000kg
Spread Pitch: Min. spread pitch 0.01mm
Basic Function: 5-digit counting, preset by segments, total numbers of turns preset, reversible counting, and power off memory, etc.
Numbers of Turns Preset Max: 9999.9
Counting Range: 0 - 9999.9
