Three 400mm Height Transformer Coil Winding Equipment With Conductor Wire
Three 400mm Height Transformer Coil Winding Equipment With Conductor Wire
Specifications
Brand Name :
Zhutang
Model Number :
ZPX400-3
Certification :
SGS, Main parts with CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
30-35 days
Packaging Details :
Seaworthy wooden case packing
Center height :
900mm
Conductor :
flat and round wire
Max. flat size :
5x12mm
Round wire diameter :
0.3-4.0 mm
Power :
11kw motor
Coil height :
400mm per coil max
Finished coil OD. :
600MM
Max. winding speed :
160 rpm
Description

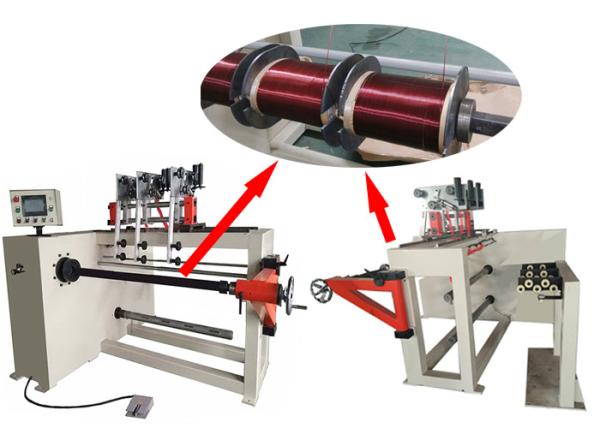

Three 400mm Height Transformer Coils Winding Machine With Conductor Wire

Description

Three 400mm Height Transformer Coils Winding Machine With Conductor Wire ZPX400-3 is a professional equipment, which can

  • Be used to winding round or flat copper wire
  • Be used to winding round or flat aluminium wire
  • Wind different shapes of coil, such as circle, oval and rectangular, etc.
  • Lay wire automatically
  • Count the number of turns
  • Be preset the parameters
  • Wind three coils at once, the coil will be same

Main Features

This machine features slow starting, smooth running, full function, high automation, easy operation and so on.

Technical Parameters

Typical standard specifications of ZPX400-3 are shown below, however these can be easily modified as requested.

Center Height: 900 mm
Square Shaft Size: 40*40*1500 mm
Shaft Connecting Mode: Fixed or dismountable (optional)
Round Wire Diameter: 0.3-4.0 mm
Max. Flat Wire Size: 5x12 mm
Minimum Coil ID.: Depends on your mold (shaft size 40*40 mm)
Max. Finished Coil OD.: 800 mm
Max. Each Coil Length: 400 mm
Insulation Decoiler Number: 1 pc
Winding Motor Power: 11 kw
Rotating Speed: 0-160 rpm
Winding Speed Regulation: Variable frequency and stepless speed regulation
Control system: PLC
Spread Pitch: Min. step: 0.01 mm
Counter: 5-digit counting, preset by segments, total numbers of turns preset, reversible counting, and power off memory, etc.
Max. Turns Number Preset: 9999.9
Counting Range: 0 - 9999.9
