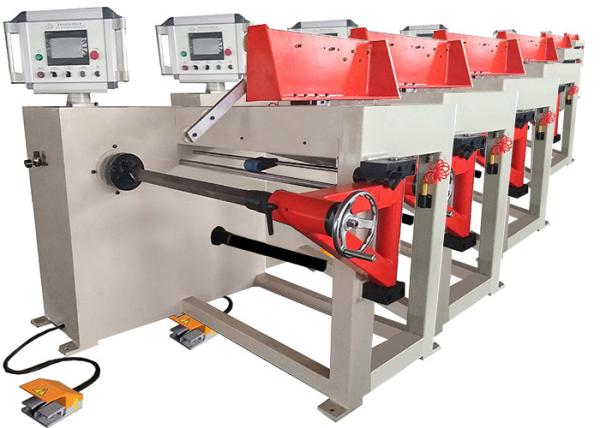

Servo Motor Driving PLC Automatic Coil Winding Machine For Oil Transformer
Servo Motor Driving PLC Automatic Coil Winding Machine For Oil Transformer
Specifications
Brand Name :
Zhutang
Model Number :
ZPX600
Certification :
SGS, Main parts with CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
30-35days
Packaging Details :
seaworthy packing
Center height :
900mm
Application :
winding transformer coil
Conductor wire :
copper or aluminium wire
Finished coil height :
600mm max
Winding power :
4kw
Rotating speed :
0 - 200rpm
Flat wire size max. :
5x12mm
Round wire diameter :
0.3-5.0mm
Description

Servo Motor Driving PLC Automatic Coil Winding Machine For Oil Transformer

Brief Introduction

Servo Motor Driving PLC Automatic Coil Winding Machine For Oil Transformer ZPX600 is a professional equipment to wind transformer coil and other similar products, it can be used to wind round or flat copper wire; wind round or flat aluminium wire; lay wire automatically as requested; preset the parameters on touch screen; rotating forward or reverse through the foot pedal; count the number of turns, the max number is 9999.99; count reversely; spread the pitch between the turns, minimum is 0.01mm; store the parameters even if the power is off suddenly. The wire guide is driven by servo motor, which guarantees the excellent start and stop behaviour.

Main Features

  • electrical programmable, the control system is based on PLC
  • easy operation,
  • slow starting
  • smooth running
  • strong pulling force
  • high reliability
  • high accuracy
  • full function
  • high automation

Main Parameters

Center height: 900mm
Square Shaft Size: 40x40x900mm
Finished Coil Height: 600mm max.
Servo Motor Power: 0.75kw
Winding Speed: 0 - 200 rpm
Speed Regulation: Variable frequency and stepless speed regulation
Max. Flat Wire Size: 5X12mm
Round Wire: 0.3-5.0mm
Finished Coil OD.: 600mm max
Max. Loading Capacity: 200kg
Automatic Wire Laying Function: Min. spread pitch 0.01mm
Counting Mode: 5-digit counting
Max. Numbers of Turns Preset: 9999.9
Counting Turn Range: 0 - 9999.9
