Cold Welding Automatic Foil Coil Winding Machine With 300mm Width Leaf Copper
Cold Welding Automatic Foil Coil Winding Machine With 300mm Width Leaf Copper
Specifications
Brand Name :
Zhutang
Model Number :
BRJ300-2
Certification :
Main parts with CE
Place of Origin :
Jiangsu Province, China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
50 sets per year
Delivery Time :
40-45 days
Packaging Details :
Seaworthy packing
Foil material :
copper or aluminium
Cu foil thickness :
0.2-2.0mm
Al foil thickness :
0.3-3.0mm
Winding power :
5.5kw
Winding speed :
0-35rpm
Control system :
PLC
Finished coil height :
300mm
Finished coil OD :
700mm
Description

Cold Welding Automatic Foil Coil Winding Machine With 300mm Width Leaf Copper

Description

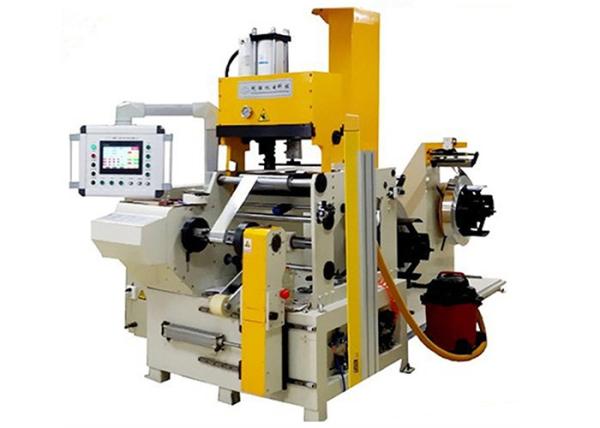

Cold Welding Automatic Foil Coil Winding Machine With 300mm Width Leaf Copper BRJ300-2 is a dedicated equipment for winding transformer or reactor foil coils and other similar products. This kind of foil winding machine is provided with PLC control system, which can make the machine run automatically as per the parameters input. This foil winding machine features slow staring, smooth running, high automation, full function, etc. It is very easy to operate the machine.

Main Components:

1. Main frame

2. Foil decoiler

3. Pressing roller

4. Winding unit

5. Insulation decoiler

6. Edge alignment system

7. Automatic cold welding unit

8. Pneumatic unit

9. Electrical control system

Technical Parameters

Typical standard specifications of BRJ300-2 are shown below, however these can be modified as requested.

Max. Axial Length: 300mm
Max. Axial Length ( incl. lead wire ): 450mm
Finished Coil OD. ( excl. Bus bar ): 600mm
Finished Coil OD. ( incl. Bus bar ): 700mm
Coil Shape: Circle, Oval and Rectangle etc.
Conductor Foil Material: Copper or aluminum
Foil Material Width: 300mm
Cu Foil Material Thickness: 0.2-2.0mm
Al Foil Material Thickness: 0.3-3.0mm
Foil Material ID.: ≤ 500mm
Foil Material OD.: ≤ 1000mm
Conductor Decoiler Number: 2 pcs
Conductor Decoiler Length: 350mm
Conductor Decoiler Shaft: Dia. adjustable range: 420-520mm
Max Coil Weight: 1000kg
Rectifying Mode: Photoelectric sensing
Rectifying Deviation Precision: ±0.5mm
Cleaning Unit Control Mode pneumatic
Insulation Paper Decoiler Number: 1set
Insulation Paper Coil OD.: ≤ 400mm
Insulation Paper Coil ID.: 76mm
Insulation Decoiler Width 350mm
Insulation Paper Decoiler Shaft: Expandable (pneumatic open/close action)
Winding Speed: 0-35 RPM
Max. Working Torque: 3,000n.m.
Winding Power of Servo Motor: 5.5kw
Welding Pressure: 200 KN
Cold Welding Device: 1 set
Positioning Bus Bar Device: 1set
Electric Grinding Device: 1 set
Cold Welding Mould: 6 sets
Programming Type: PLC
Basic Function: Input by segment, reversible counting, and power-off memory, etc.
Operation Interface: Touch screen
Counting Turn Range: 0 - 9999.9
