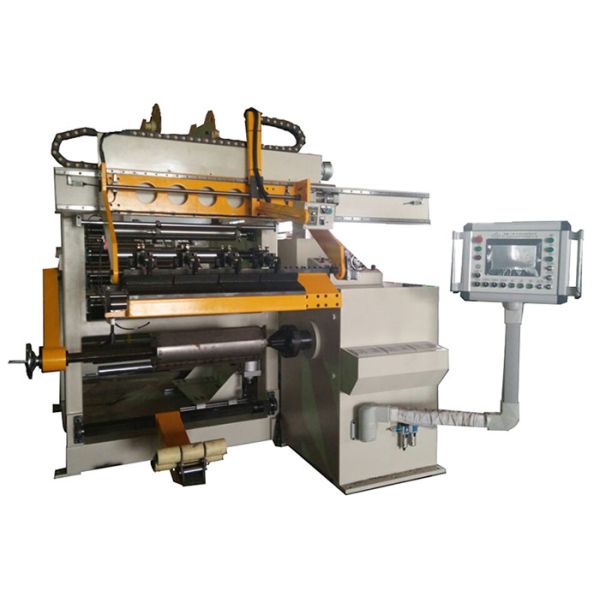

Programmable Dry Transformer Winding Machine For Double Layers Copper Foil
Programmable Dry Transformer Winding Machine For Double Layers Copper Foil
Specifications
Brand Name :
Zhutang
Model Number :
BRJ800-2
Certification :
Main parts with CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
40-45days
Packaging Details :
seaworthy packing
Cu foil thickness :
0.2-2.0mm
Al foil thickness :
0.3-3.0mm
Winding motor :
15kw
Winding speed :
20rpm
Shear :
rolling shear
Cutting width :
800mm
Control :
PLC based
Welding mode :
TIG welding
Description

Programmable Dry Transformer Winding Machine For Double Layers Copper Foil

1. Product description

Programmable Dry Transformer Winding Machine For Double Layers Copper Foil BRJ800-2 is provided with:

  • 15kw motor
  • TIG welding unit
  • Touch screen

Big power motor has strong pulling force, and the foil is welded with bus bar through TIG welding process, the welding is strong and the welding surface is smooth. This foil winding machine can handle copper or aluminium foil strip with max width 800mm and insulation paper. Foil pressing arm aids the operator at start end of winding to keep tension on the foil. This winding machine features slow starting, smooth running, high automation, full function, strong pulling force and so on. It is very easy to operate.

2. Main components

1) Main iron structure

2) Main winding unit

3) Foil conductor dereeler

4) Insulation dedereeler

5) End strip holder

6) Cleaning dust system

7) Cutting foil system

8) Foil deburring system

9) Rectifying system

10) Automatic welding unit

11) Electronic control system

12) Pneumatic system

3. Technical Parameters

Typical standard specifications of BRJ800-2 are shown below, however these can be easily modified as requested.

Max. OD. of Finished Coil: 800mm
Finished Coil Shape: oval, circle and rectangular,etc.
Conductor Foil Material OD.: 1,000mm
Conductor Foil Material ID.: 500mm
Number of Foil Decoiler: 2 pcs
Length of Foil Decoiler: 850mm
Foil Decoiler Shaft: adjustable Dia. range 400-520mm
Winding Mandrel Size: 80×80×1150 mm
Cutting Mode: Electric disc shear
Cutting Speed: 0.8 m/min
Foil deburring System: Pneumatic control
Cleaning System: Pneumatic control
Number of Insulation Decoiler: 2 pcs
Insulation Material OD.: ≤400mm
Insulation Material ID.: 76mm
Max. Width of insulation material: 850mm
Insulation Decoiler Shaft: Expandable (pneumatic open/close action)
End-fill Strip Feeder: 8 pcs
Edge Alignment System: Photoelectric sensing
Rectification Precision: ±0.5mm
Electronic Control System: PLC
User Interface: 10inch (254mm) touch screen industrial PC / access controller
Counting Turns Range: 0 - 9999.9

4.Packing and Shipping

Seaworthy packing and transported in one container.
