Automatic Transformer Copper Foil Winding Machine With Cold Pressure Welding
Automatic Transformer Copper Foil Winding Machine With Cold Pressure Welding
Specifications
Brand Name :
Zhutang
Model Number :
BRJ200
Certification :
SGS, Main parts with CE
Place of Origin :
Jiangsu Province, China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
40-45 days
Packaging Details :
Seaworthy wooden case packing
Material :
copper or aluminium foil
Foil width :
200mm
Cu foil thickness :
0.2-2.0mm
Al foil thickness :
0.3-3.0mm
Power :
3kw
Winding speed :
0-35rpm
Clamping mode :
4-jaw chuck
Warranty :
12 months
Description

Automatic Transformer Copper Foil Winding Machine With Cold Pressure Welding

Description

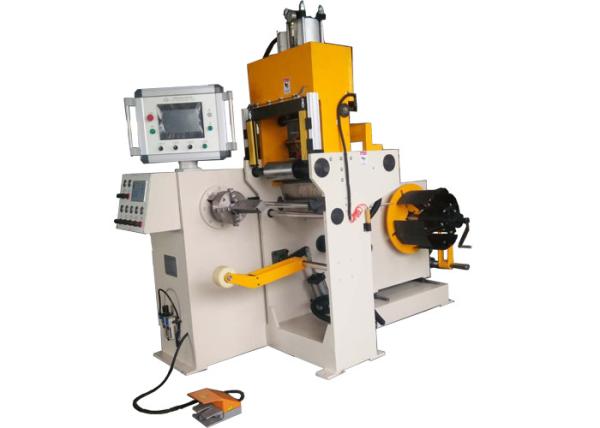

Automatic Transformer Copper Foil Winding Machine With Cold Pressure Welding BRJ200 is a special winding equipment for winding small size foil coils. This foil winding machine can handle one layer of copper or aluminium foil and one layer of insulation paper. This machine adopts cold pressure welding to weld foil and bus bar together. There is six sets of mold provided for welding different specifications of foil. It can weld different material, such as welding aluminium foil with copper bar.

Main Components

1. Main frame, steel welded frame

2. Foil decoiler, one decoiler for foil material with ID 500mm and maximum OD 1000mm

3. Foil feeder, roller for feeding the foil

4. Pressing roller, for pressing the foil when the machine stops winding

5. Main winding unit, for winding foil

6. PLC based control system, control the machine precisely

7. Pneumatic system, for providing power

Technical Parameters

Typical standard specifications of BRJ200 are shown below, however these can be easily modified as requested.

Foil width: 100 - 200mm
Finished Coil Shape: Oval, circle, and rectangular etc.
Foil Material: Copper or Aluminum
Al Foil Thickness: 0.3 - 3.0 mm
Cu Foil Thickness: 0.2 - 2.0 mm
Foil Decoiler Number: 1 pc
Foil Decoiler Length: 250 mm
Foil Decoiler Diameter: Adjustable range 400-520mm
Max Coil Weight: 750 KG
Pressing Roller: 1 set
Tension Mode: Pneumatic
Speed Adjusting Mode: Stepless adjustable
Winding Speed: 0-35 rpm
Insulation Decoiler Number: 1 pc
Insulation Decoiler Width: 250mm
Insulation Decoiler Shaft: Expandable (pneumatic open/close action)
Programming Type: PLC
User Interface: 10inch (254mm) touch screen
Counting Turn Range: 0 - 9999.9
