Customized Cheap Copper Strip Winder Simple Transformer Foil Winding Machine

Description

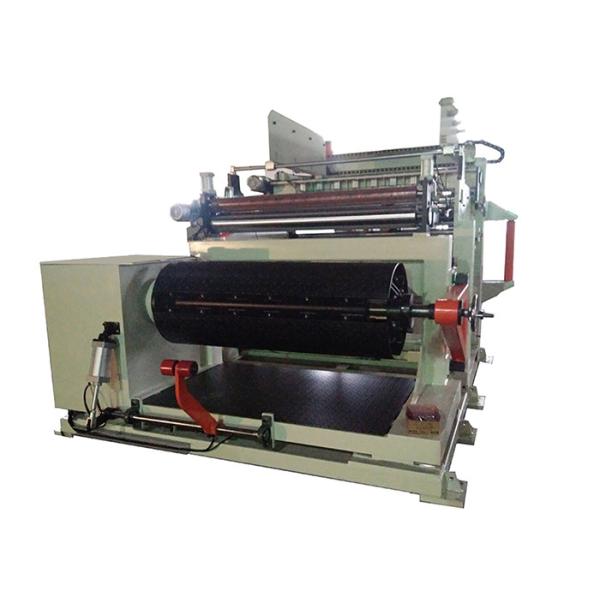

Customized Cheap Copper Strip Winder Simple Transformer Foil Winding Machine JJ-BRJ300 is a kind of simple foil winding machine, this kind of foil winding machine is with simple structure, it can wind one layer of copper foil with 0.2 - 2.0 mm thickness and aluminium foil with 0.3 - 3.0 mm thickness. This machine is provided with TIG welding unit, which can weld foil and bar together automatically, moreover, this is optional. You can choose this unit or not. This kind of foil winding machine has many basic functions, such as automatic winding foil, mechanical rectifying deviation, tension controlling, reversible counting, setting number of turns for stopping, power off memory, and so on. The winding machine features slow starting, smooth running, tight winding, strong rotating force, and so on.

Main Components

1. Main Frame, iron welded frame

2. Foil decoiler, with 350mm length, can be used to place the foil with 300mm width

3. Winding unit, 4kw motor driven

4. Insulation decoiler

5. Pneumatic devices

6. Electrical control system

Technical Parameters

Typical standard specifications of JJ-BRJ300 are shown below, however this can be easily modified as requested.

Max. Foil Width: 300 mm

Max. Finished Coil OD.: 800 mm

Foil Material: Copper or Aluminum

Aluminium Foil Thickness: 0.3 - 3.0 mm

Copper Foil Thickness: 0.2 - 2.0 mm

Foil Material OD.: 1000 mm

Foil Material ID.: 500 mm

Foil Decoiler Number: 1 pc

Foil Decoiler Length: 350 mm

Max Coil Weight: 1000 kg

Winding Power: 4kw

Max. Winding Speed: 35 rpm

Insulation Decoiler Number: 1 pc

Insulation Material OD.: ≤ 400 mm

Insulation Material ID.: 76 mm

Insulation Material Width: 350 mm

Insulation Decoiler Shaft: Expandable (pneumatic open/close action)

Counting Turn Range: 0 - 9999.9
