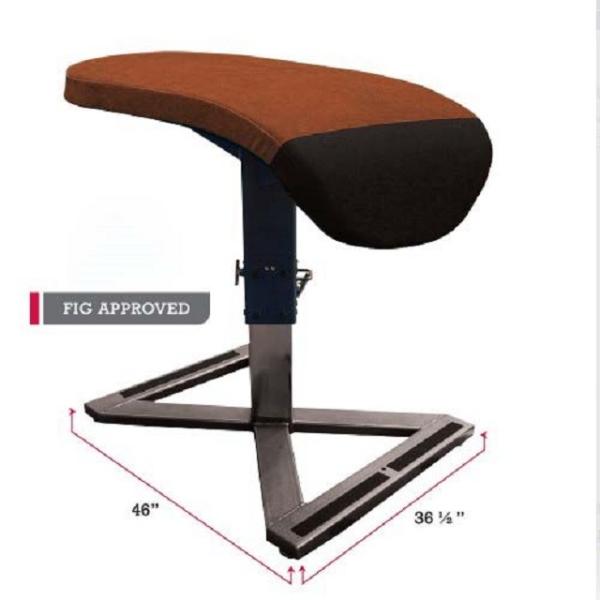

Product Name : Gymnastics Elite International Vault Table Equipment Adjustable

Leveling Gymnastics Workout

Gymnastics Elite International Vault Table Feature :

• Adjustable top has four spring settings: Soft, Medium, Firm or Locked out for zero spring (FIG).
• New lever design for quick and effortless adjustments
• Larger steel base structure for better stability
• Top adjusting foot leveling system
• Flip top for convenient access to spring adjustment
• 5 Year Warranty on Frame and 1 Year Warranty on parts and pistons
• Height adjusts from 37 1/2 ” to 53″ (950 to 1350 mm) in 50mm increments
• Body is constructed from a fiberglass form, layered with rebounding foam
• Exclusive TAC/10 cover for incredible grip
• Comes with protective club pads for center post
• Four non-marking rubber floor contacts with adjustable leveling feet
• Surface can be easily cleaned with TAC/10 Cleaner

SGS Approval

Gymnastics Elite International Vault Table More Details :

Standard legs vaulting table equipped with a body which is identical to the

FIG Approved vaulting table two-tone dynamic body with a soft front

section for shock absorption and a non-slip top covering the hand placement area.

With a body using a complex of dynamic foam and springs, this new vaulting

table gives gymnasts a fast, dynamic response.

It is very comfortable to use and reduces gymnasts' fear thanks to its reassuring

shape and its comfort layer positioned over the whole hand placement area to soften impacts.

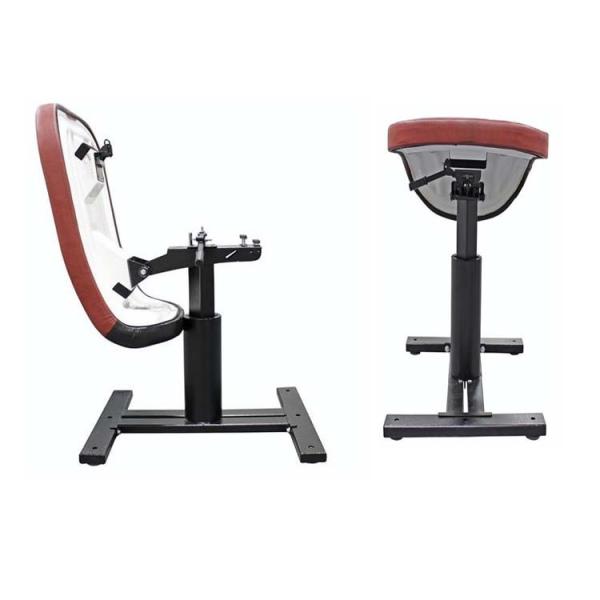

Height adjustment from 0.95 to 1.45 m

- It is height-adjustable using a rachet and thumb wheel
- Supplied with a fixing system to floor (chain + adjustable tensioner)

How to install Gymnastics Elite International Vault Table

1. Remove all parts from the packing containers.
2. Refer to the illustration on the previous page and the drawing on this page for help in assembly.
3. Place the Infinity Base (item 2) on a hard, flat, level surface.
4. Place the FIG Infinity Surface (item 1) on the base as show in the illustration.
5. Align the holes. The parts bag should include eight 3/8-16 bolts, eight 3/8 lock washers and eight 3/8 washers. Place a lock washer and then the standard washer on each of the 3/8-16 bolts insert through the slot into the surface and tighten using the 9/16 wrench.
6. Turn the Spinlock (larger smooth handle) to the left to loosen.
7. Pull the Snaplock (smaller smooth handle) out. If it is difficult to pull the Snaplock out, push down while pulling out. Adjust the unit up and down by putting and equal amount of force on the Snaplock and the handle on the opposite side. When trying to raise the unit do not exert an excessive amount of force. Allow the constant force springs to assist you. You cannot raise it any faster than the springs will allow.
8. The Snaplock will make an audible click when it is engaged in a hole.
9. Tighten the Spinlock securely by turning to the right.
10. Leveling the Vault Surface can be done by adjusting the Foot Pads. There is an adjustable Foot Pads on each corner of the base.
