4000Hz Flexible LED Video Curtain , 6000Nits LED Video Curtain Rental For Entertainments
4000Hz Flexible LED Video Curtain , 6000Nits LED Video Curtain Rental For Entertainments
Specifications
Brand Name :
ONUMEN
Model Number :
Slim 7
Certification :
CE, Rohs, FCC, TUV
Place of Origin :
Shenzhen
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
1000sqm/month
Delivery Time :
25 working days
Packaging Details :
Flight case, wooden case
Pitch :
7.8mm
Pixel configuration :
SMD3528 /SMD35351R1G1B (Nationstar)
Module size :
250*250mm
Pixel Density :
16384pixels/sqm
Drive mode :
1/16 or 1/8
Max Power Consuption :
≤ 180W /sqm / ≤ 400W /sqm
Panel size :
Customized, suggest 1x2m (max:8m)
Max Refresh rate :
≥4000Hz / 8000HZ
Waterproof rate :
IP43/IP54
Weight :
12kg / sqm
Description

4000Hz Flexible LED Video Curtain , 6000Nits LED Video Curtain Rental For Entertainments​

Quick Details:

  1. foldable ,flexible design
  2. indoor and outdoor is avaliable
  3. easy to install and maintain
  4. good performance

Foldable LED screen is a new invention that break through various bottle-neck compared with traditional LED display, it deserves the invention patent and Utility model patent internationally.

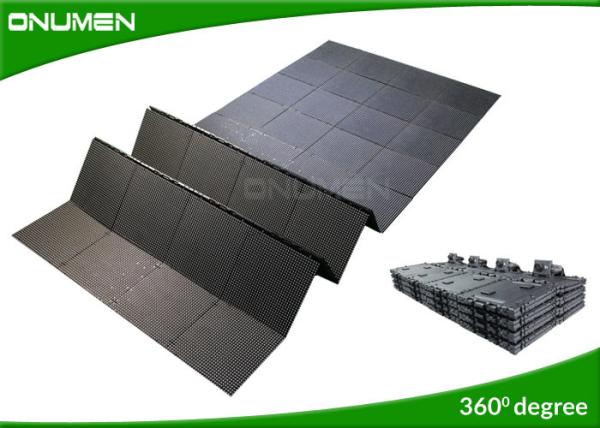

Foldable LED screen is composed of many small modules which are connected together by steel wire, the display can be folded with 360 degree between each module

Features:

Exclusive patent product:
  • Fissionable design: separated LED screen, controller box (with power supply+receiver card inside) can be composed and disassembled randomly.
  • Our Panel size can be customized: Our foldable flexible LED module screen P7.8 is composed of many small unit 250*250mm(I also name it as cell, because it is the smallest unit which usually can not bedivided again).There are many units connected together to make a larger panel. the panel size can be customized, the panel size should not be too large or too small, if too large, it is difficult to pack, transport and installation; if too small, it will take a lot time to connect them together to make a larger screen, and it needs more cables and connectors for connection Normally we recommend the width is 4units, and the length can be customized by the customers. Standard panel size is 4x16units. Many of such panels can be connected together vertically and horizontally to make as a big screen as you want.
  • Ultra-flexibility design, it can be set up in any conceivable shape.
  • Foldable design, it can be folded into small volume and move around easily.
  • Ultra-light weight (max weight: 10kgs per square meter), Ultra-thin (The thickness is 8.9mm only). Light weight and slim body can help to save more than 50% transportation and warehousing space and cost.
  • High gray level 16bit. 256 * 256 = 65536 brightness adjustment. High refresh rate 8000HZ.
  • Modular design, easy and quick maintainance.
  • Quick and easy installation. support hanging, magnet mount etc installation method. no tool, no screws, installation equipment saving, more than 50% installation labor cost saving.

Applications:

Business Organizations supermarket, large-scale shopping malls, , chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations Banks, negotiable securities, funds, insurance companies, pawnshops;
Non-profit Organizations: Telecommunications, post offices, hospital, schools;
Public Places subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms,
Entertainments Rental
Mobile Stage
Music tour
Road Show
Nightclub
Concert
Live Show
Fashion show
Outdoor advertising



Our Advantage:

80% transportation cost saving
80% project cost saving
80% installation time and labor cost saving!

4000Hz Flexible LED Video Curtain , 6000Nits LED Video Curtain Rental For Entertainments

Specifications:

Model No. Slim 7
Pixel Pitch 7.8mm
Module Size 250*250mm
Module Resolution(pixels) 32*32
Panel Size 1000mm×2000mm, be customized as per customer's request. Max can be 1000*8000mm
Panel Resolution(pixels) 128*256
Pixel Configuration(RGB) 1R1G1B
Pixel Density(pixels/m2) 16384
Brightness(cd/m2) 1000 / 6000
Best Viewing Distance(m) >8m
Max.Power Consumption(W/m2) 180 / 400
Waterproof Level Indoor IP43/Indoor IP54 / outdoor IP65
Wavelength R 625±5nm, G 525±5nm B 470±5nm
LED SPEC SMD3528 /SMD3535
Viewing Angle 110°(H)/110°(V)
Operating Temperature –20~50°C
Video Frame Rate(Hz) 30-120HZ
Display Refresh Rate(Hz) ≥4000HZ
Grey Level(colors) 16.7million
MTBF ≥50000 hours
Lifespan ≥100000Hours
Working Voltage DC24V
Drive Mode Scan 1/16 or Scan 1/8
Graphics Card DVI Graphics card
Video Signal RF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control System Dbstar
Software Xmplayer 3.1
Installation

Wall mount, hung
