Performance P6 Indoor LED Display SMD 3528 / LED Stage Curtain Screen Wall Mounted
Performance P6 Indoor LED Display SMD 3528 / LED Stage Curtain Screen Wall Mounted
Specifications
Brand Name :
Onumen
Model Number :
F-P6
Certification :
CE/ROHS/FCC/TUV
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T 50% deposit,the balance should be paid before shipment
Supply Ability :
1000sqm per month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in flightcase
Model No. :
Slim6
Module Size :
192mmx192mm
Brightness(cd/m2) :
2000
Max.Power Consumption(W/m2) :
300
Waterproof Level :
Indoor IP43/Indoor IP54
LED SPEC :
SMD3528
Working Voltage :
DC24V
Drive Mode :
Scan 1/16
Application :
Indoor
Installation :
Wall mount, hung
Description

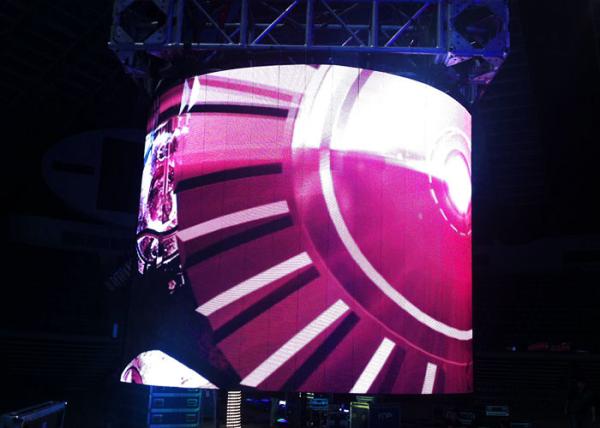

Performance P6 Indoor LED Display SMD 3528 / LED Stage Curtain Screen Wall Mounted

Description:

1. Foldable LED module display is a new invention that breaks through various bottle-necks compared

with traditional LED display, it deserves the invention patent and Utility model patent internationally.

2. Foldable LED module display P6is composed of many small modules 192mm*192mm which are

connected together by steel wire,the display can be folded with 360 degree between each module

3. Easy to maintain, High resolution, Good contract, Less Weight, easy to install. Widely used as the

information billboard in Airport, Railway station, and big shopping mall, concert and ect.

4. The brightness of indoor LED signs is adjustable so as to ensure different environment.

5. We make best design with high cost- efficiency according to the actual needs of our customers and we

can offer OEM service as well.

6. Lightweight,Ultra-Slim Design,360degree foldable

7. Ultra - slim creative design thickness 10mm ,

8. Super light weight 10kg/sqm,

9. Module size 192mm*192mm,

10. Fast install and dismantle.

11. Save 50% of the package space , delivery cost , time of install and dismantle,labor force ect.

Production time

25 working days since received the order deposit .

Payment terms

Transfer by T/T 50% for deposit , 50% for balance before delivering.

Delivery & Package

By air freight,

Customized flightcase

Specifications:

Model No. Slim 6
Pixel Pitch 6mm
Module Size 192x192mm
Module Resolution(pixels) 32*32
Panel Size 768mm×2112mm, be customized as per customer's request. Max can be 768*6144m
Panel Resolution(pixels) 128X352
Pixel Configuration(RGB) 1R1G1B
Pixel Density(pixels/m2) 27777
Brightness(cd/m2) 2000
Best Viewing Distance(m) >6m
Max.Power Consumption(W/m2) 300
Waterproof Level Indoor IP43/Indoor IP54
Wavelength R 625±5nm, G 525±5nm B 470±5nm
LED SPEC SMD3528
Viewing Angle 110°(H)/110°(V)
Operating Temperature –20~50°C
Video Frame Rate(Hz) 30-120HZ
Display Refresh Rate(Hz) ≥4000HZ
Grey Level(colors) 16.7million
MTBF ≥50000 hours
Lifespan ≥100000Hours
Working Voltage DC24V
Drive Mode Scan 1/16
Graphics Card DVI Graphics card
Video Signal RF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control System Dbstar
Software Xmplayer 3.1
Installation Wall mount, hung

Company

As the leader and creator of LED conference display screen hire service field, Onumen have the ability to

provide you the best service. From the early customer's inquiry, to the final after-sales service, Onumen

can provide our customer a specific visual effects solution according to your project specifications. We

are the best LED screen rental service provider.

Applications:

Business Organizations supermarket, large-scale shopping malls, , chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations

Banks, negotiable securities, funds, insurance companies, pawnshops;

Non-profit Organizations: Telecommunications, post offices, hospital, schools;
Public Places subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms,
Entertainments Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course

Our Advantage:


With Slim body, light weight, Ultra Thin design, we can help to save space where the space is very highly

required.

Performance P6 Indoor LED Display SMD 3528 / LED Stage Curtain Screen Wall Mounted
