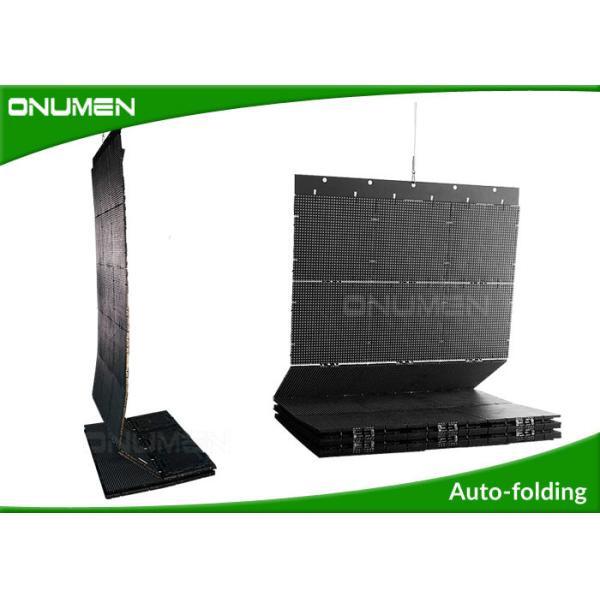

7000 Pixel / M² led display / led billboard display / outdoor led large screen display
7000 Pixel / M² led display / led billboard display / outdoor led large screen display
7000 Pixel / M² led display / led billboard display / outdoor led large screen display
7000 Pixel / M² led display / led billboard display / outdoor led large screen display
Specifications
Brand Name :
Onumen
Model Number :
OM-F-6P-NQ
Certification :
TUV.FCC.CE.ROHS
Place of Origin :
SHENZHEN
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
3000//Square Meter/M
Delivery Time :
25Days
Packaging Details :
Wooden case or flight case as customer's request
Pixel pitch :
6mm
Pixel configur :
1R1G1B
Module resolution :
32*32 pixels
Module size :
192*192mm
Module quantity :
20pcs
Brightness :
4000cd/m²
Life time :
10000Hrs
Control system :
BSTAR
Color :
Black
Description

7000 Pixel / M² led display / led billboard display /

outdoor led large screen display


Led Screen P6 :


1. shows colors of red-green-blue


2. View distance: 6M 8M 10M 12M 14M 16M,20M,25M,31.25M..40mm..etc


3. Viewing angle : H 110 degree , V 70 degre


4. Pixel pitch:P4,P5,P6 P7.62 P8 P10 P12 P14 P16 P20 P25 P31.25 are available.


5, Pixel Resolution: 32*16 16*16 16*8 8*8


6, Voltage : 220V 20% 50HZ


7. video gray level red, pure green,blue.


8. Red, green and blue color pure, good white balance, Matrix Group screen.


Technical Specification

Item Technical Specification
Pixel Pixel pitch: 6mm
Pixel configuration: 1R1G1B
Brightness: Red: 1000mcd Green: 2300mcd Blue: 600mcd
Wave length: Red: 625±2nm Green: 525±2nm Blue: 470±2nm
Module resolution: 32*32 pixels
Module Module size: 192mmx192mm
Cabinet size: 192mm×192mm×15mm
Cabinet Cabinet resolution: 9216 pixels
Cabinet material: 27778 pixels / sqm
Gross weight: 9kg / sqm
Module quantity: 24 pcs= 4(w) x 6(h)
Power consumption : Max.:300W/m² Everage: 150W/m²
Screen Drive method: 1/16 scanning
Brightness: 4000cd/m²
IC driver: MBI 5026
Density: 10000 pixel/m²
Whole display flatness: ≤ 1mm juncture
Best view distance: ≥ 9m
Viewing angle: Horizontal: 120° Vertical: 60°
Humidity(RH): ≤ 90~95%
Working temperature: from -30°C to +60°C
Working voltage: AC220V/110V±10%
Refresh frequency: 2400Hz(Zdec) ≥ 300Hz(Linsn)
Frame rate: ≥ 60Hz
Protection grade: IP54
MTBF: More than 10000hrs
Life time: 100,000 hrs
Control system Control system: BSTAR
Signal interface: AV.USB.DP.SDI
Communication distance: Internet cable: ≤120m / Fiber cable: 1000m
Systems operating platforms : XP,WINDOWS(WIN7,WIN10)


7000 Pixel / M² led display / led billboard display / outdoor led large screen display



Application:


1). Street outdoor LED display for commercial advertisemen.


2). Mobile outdoor LED display (truck LED display) for advertisement or show;


3). Fixed installation outdoor LED display for commercial advertisement;


4). Rental outdoor LED display for show, evn, concerts;


5). Trailor outdoor LED dispaly for show/ event, concerts;


6). Perimeter outdoor LED display for commercial advertisement.


7). Stadium outdoor LED display for live broadcasting score LED display;
