360 Degree Folded Rental LED Screen Module 192x192 mm Steel Wires Connected
360 Degree Folded Rental LED Screen Module 192x192 mm Steel Wires Connected
Specifications
Brand Name :
Onumen
Model Number :
OM-F-6P-N
Certification :
TUV.FCC.CE.ROHS
Place of Origin :
SHENZHEN
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
3000//Square Meter/M
Delivery Time :
25 days
Packaging Details :
Wooden case or flight case as customer's request
Pixel pitch :
6mm
Pixel configuration :
SMD3528 1R1G1B
Brightness :
2000nits / 4000nits
Module resolution :
32*32 pixels
Module size :
192x192mm
Panel size :
768x1920mm, the size can be customized
Description

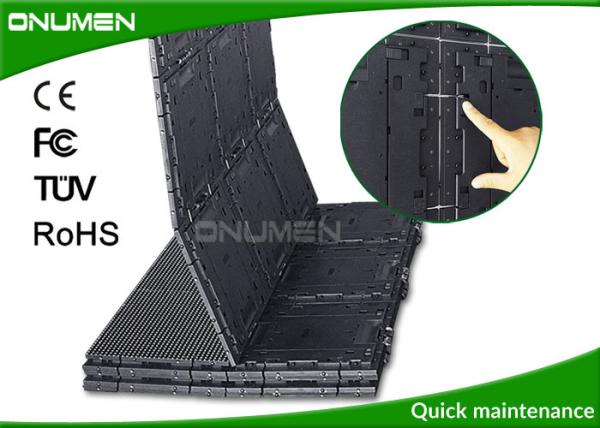

360 Degree Folded Rental LED Screen Module 192x192 mm Steel Wires Connected

Slim series is composed of many 160x160mm or 192x192mm or 250x250mm LED tiles which are connected together by steel wires. It can be folded in 360 degree.

With Foldable, flexible, Slim, light weight, fast installation and lowest cost design, it is widely used for indoor and outdoor rental such as music tour, concerts, road show and mobile advertisement.

Features:

  • Lightweight,10kgs/sqm,360 degree foldable
  • Max thickness is only 8-15mm,Ultra Slim body design
  • Fast and easy setup,time and labour saving
  • Easy and fast installation and light weight suitable for rental and project..
  • Wide application, both indoor and outdoor

  • Superior, full video image quality

  • Uniform colour and high contrast, ensuring clear and sharp picture

Applications:

Rental
Mobile Stage
Music tour
Road Show
Nightclub
Concert
Live Show
Fashion show
Indoor advertising

Specifications:

Model No. Slim 6
Pixel Pitch 6mm
Module Size 192x192mm
Module Resolution(pixels) 16*16
Panel Size 768mm×3072mm, be customized as per customer's request. Max can be 768*6144mm
Panel Resolution(pixels) 128*512
Pixel Configuration(RGB) 1R1G1B
Pixel Density(pixels/m2) 27778
Brightness(cd/m2) 2000
Best Viewing Distance(m) >6m
Max.Power Consumption(W/m2) 300
Waterproof Level Indoor IP43/Indoor IP54
Wavelength R 625±5nm, G 525±5nm B 470±5nm
LED SPEC SMD3528
Viewing Angle 110°(H)/110°(V)
Operating Temperature –20~50°C
Video Frame Rate(Hz) 30-120HZ
Display Refresh Rate(Hz) ≥4000HZ
Grey Level(colors) 16.7million
MTBF ≥50000 hours
Lifespan ≥100000Hours
Working Voltage DC24V
Drive Mode Scan 1/16
Graphics Card DVI Graphics card
Video Signal RF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control System Dbstar
Software Xmplayer 3.1
Installation Wall mount, hung

Factory support:

  1. 100% fully test for Aging
  2. The package is Flight case or wooden case
  3. 2 years’ warranty with free repair service
  4. 24/7 Hours online Remote Support
  5. Free factory training
  6. On-site installation instruction and regular inspection

360 Degree Folded Rental LED Screen Module 192x192 mm Steel Wires Connected
