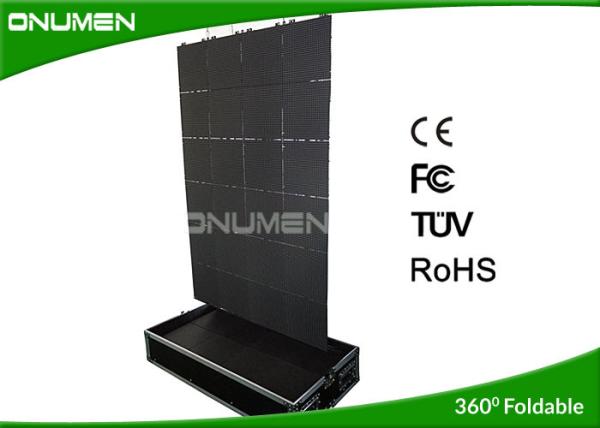

24 pcs Rental LED Screen Flexible Video Display Wall With 10000Hrs Life Time
24 pcs Rental LED Screen Flexible Video Display Wall With 10000Hrs Life Time
Specifications
Brand Name :
Onumen
Model Number :
OM-F-6P-NQ
Certification :
TUV.FCC.CE.ROHS
Place of Origin :
SHENZHEN
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
3000//Square Meter/M
Delivery Time :
25Days
Packaging Details :
Wooden case or flight case as customer's request
Pixel pitch :
6mm
Pixel configur :
1R1G1B
Module resolution :
32*32 pixels
Module size :
192*192mm
Module quantity :
20pcs
Brightness :
4000cd/m²
Life time :
10000Hrs
Control system :
BSTAR
Color :
Black
Description

24 pcs Rental LED Screen Flexible Video Display Wall With 10000Hrs Life Time​


Led Screen Outdoor P6 :

Stable performance,wide applicability, high brightness, superb performance/price ratio.


1. High brightness enables longer viewing distance and ensures the spectators far from the screen can still

enjoy what is shown.


2. Superb performance/price ratio offers you both top notch quality and reasonable price, maximizing the

value of your investment.


Technical Specification

Item Technical Specification
Pixel Pixel pitch: 6mm
Pixel configuration: 1R1G1B
Brightness: Red: 1000mcd Green: 2300mcd Blue: 600mcd
Wave length: Red: 625±2nm Green: 525±2nm Blue: 470±2nm
Module resolution: 32*32 pixels
Module Module size: 192mmx192mm
Cabinet size: 192mm×192mm×15mm
Cabinet Cabinet resolution: 9216 pixels
Cabinet material: 27778 pixels / sqm
Gross weight: 9kg / sqm
Module quantity: 24 pcs= 4(w) x 6(h)
Power consumption : Max.:300W/m² Everage: 150W/m²
Screen Drive method: 1/16 scanning
Brightness: 4000cd/m²
IC driver: MBI 5026
Density: 10000 pixel/m²
Whole display flatness: ≤ 1mm juncture
Best view distance: ≥ 9m
Viewing angle: Horizontal: 120° Vertical: 60°
Humidity(RH): ≤ 90~95%
Working temperature: from -30°C to +60°C
Working voltage: AC220V/110V±10%
Refresh frequency: 2400Hz(Zdec) ≥ 300Hz(Linsn)
Frame rate: ≥ 60Hz
Protection grade: IP54
MTBF: More than 10000hrs
Life time: 100,000 hrs
Control system Control system: BSTAR
Signal interface: AV.USB.DP.SDI
Communication distance: Internet cable: ≤120m / Fiber cable: 1000m
Systems operating platforms : XP,WINDOWS(WIN7,WIN10)




Product after service


Stable performance, wide applicability, high brightness, superb price / performance ratio.


1. High brightness enables longer viewing distance and ensures the spectators far from the screen can

still enjoy what is shown.


2. Superb price / performance ratio offers both top notch quality and reasonable price, lamaximisation of

the value of your investment.


Product post services


Good after-sales service


1. Three-years warranty for the entire system, except human factors and force majeure Guarantee.


2. One of the year the quality, maintenance of life, and to ensure the maintenance time in the contract.


3. The warranty period: solving problems for users through telephone, fax or email. Update the software

for free.


4. As to product quality problems caused by the design, manufacturing, technology installation, equipment,

replacement and maintenance are free. System damage caused by force majeure (flood, fire, earthquake,

war, and so on) as well as users) artificial disturbance (construction, cleaning) should be coordinated by

the two parties to résoudre.Entretien


5. Life long for the system: after the warranty, we charge only the cost of equipment.
