4 kHz Indoor Full Color LED Display Screen Rentals With XP / WINDOWS Systems Operating Platforms
4 kHz Indoor Full Color LED Display Screen Rentals With XP / WINDOWS Systems Operating Platforms
Specifications
Brand Name :
Onumen
Model Number :
OM-F-6P-N
Certification :
TUV.FCC.CE.ROHS
Place of Origin :
SHENZHEN
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
3000 square meters per month
Delivery Time :
25 working days
Packaging Details :
wooden case or flight case as customer's request
LED type :
SMD3528
Brightness :
2000 nits
Scan mode :
16
Refresh rate :
4 kHz
IP rating :
IP54
Pixel pitch :
6mm
Description

4 kHz Indoor Full Color LED Display Screen Rentals With XP / WINDOWS Systems Operating Platforms​


Features


Small pitch, fine pitch
Bring to you the sharp and crisp visual effects undreamt of.

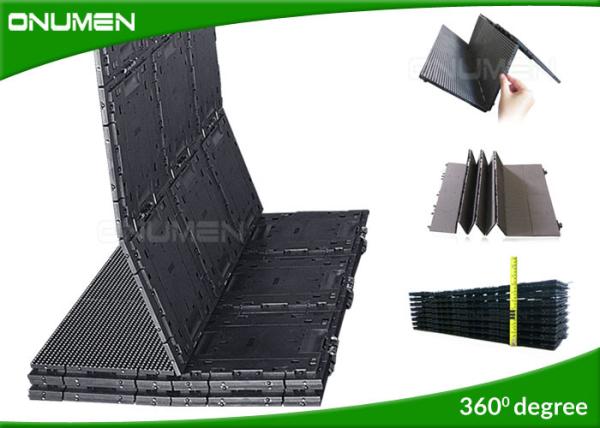

Foldable
Patented top-notch foldable design, just fluff and fold, everything is at your finger’s tip.

Value for money
The revolutionary design is extremely cost-efficient.

Versatile
The screen can be wall-mounted, floor-mounted, ceiling-mounted, truss-mounted or hung. Even more, the Paste Series can be also magnet-mounted.

4 kHz Indoor Full Color LED Display Screen Rentals With XP / WINDOWS Systems Operating Platforms

Specification

Item Technical Specification
Pixel Pixel pitch: 6mm
Pixel configuration: 1R1G1B
Brightness: Red: 1000mcd Green: 2300mcd Blue: 600mcd
Wave length: Red: 625±2nm Green: 525±2nm Blue: 470±2nm
Module resolution: 32*32 pixels
Module Module size: 160mmx160mm
Cabinet size: 192mm×192mm×15mm
Cabinet Cabinet resolution: 9216 pixels
Cabinet material: 27778 pixels / sqm
Gross weight: 9kg / sqm
Module quantity: 25 pcs= 5(w) x 5(h)
Power consumption : Max.:300W/m² Everage: 150W/m²
Screen Drive method: 1/16 scanning
Brightness: 2000cd/m²
IC driver: MBI 5026
Density: 10000 pixel/m²
Whole display flatness: ≤ 1mm juncture
Best view distance: ≥ 8m
Viewing angle: Horizontal: 120° Vertical: 60°
Humidity(RH): ≤ 90~95%
Working temperature: from -30°C to +60°C
Working voltage: AC220V/110V±10%
Refresh frequency: 2400Hz(Zdec) ≥ 300Hz(Linsn)
Frame rate: ≥ 60Hz
Protection grade: IP54
MTBF: More than 10000hrs
Life time: 100,000 hrs
Control system Control system: BSTAR
Signal interface: AV.USB.DP.SDI
Communication distance: Internet cable: ≤120m / Fiber cable: 1000m
Systems operating platforms : XP,WINDOWS(WIN7,WIN10)

Why onumen?

Case:1700m² (F-P12)

Save transportation and
warehousing cost		 4 kHz Indoor Full Color LED Display Screen Rentals With XP / WINDOWS Systems Operating Platforms
Save installation time 4 kHz Indoor Full Color LED Display Screen Rentals With XP / WINDOWS Systems Operating Platforms
Save labor cost 4 kHz Indoor Full Color LED Display Screen Rentals With XP / WINDOWS Systems Operating Platforms
Space-efficient packaging 4 kHz Indoor Full Color LED Display Screen Rentals With XP / WINDOWS Systems Operating Platforms
