Specifications
Brand Name :
ONUMEN
Model Number :
Curve 3
Certification :
CE, Rohs, FCC, TUV
Place of Origin :
Shenzhen
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
1000sqm/month
Delivery Time :
25 working days
Packaging Details :
Flight case, wooden case
Pitch :
3.9mm
Module size :
62.5x250mm
Brightness :
1500nits
Panel size :
Customized, suggest 0.25x2m (max:4m)
Color Space :
16.7 million (R 256, G 256, B 256)
Controller :
Synchronous display with control PC by DVI or HDMI
Control system :
Dbstar
LEDs Brand :
Nationstar
Description

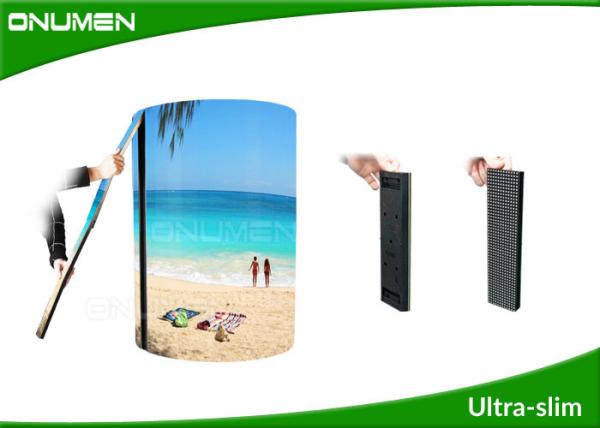

ONUMEN Indoor High Definition 3.9mm Magnetic Curved Video Screen Front service ,Slim Design

For Commerical Ads

Features:

1 Wide adjustability range allows the user to regulate the display brightness for all environmental

2. Support Magnetic Mounting

  • There are magnets on the module edge so as to keep the screen aligning between nearb
  • modules.
  • There are magnets on the back of module,so as to support the magnetic mounting, such as
  • attach the screen to a metal panel.

3. Silent Design & Cool system

  • Different with the tranditional led screen, Our LED screen and Power supply unit are
  • separate.With such way, the heat from power supply won’t be transferred tothe LEDs, thus
  • can help to expand the LEDs’s life span. At the same time, no anycooling system needed,
  • thus highly decrease the engineering cost, avoid unnecessarywaste.
  • Power box can be put far away from the LED screen upon client’s request, so as toavoid the
  • noise from the fan from the power supply, which is paricularly suitable forfor the high-end
  • occasions where have high demands on the noise, such as the Museum, Concert hall,etc.

conditions.


•Good uniformity and consistency provides for an amazingly sharp, vivid and clear Image.


•Wide viewing angle up to 110 degrees horizontal and 60 degrees vertical


•Low energy consumption and rapid heat dissipation aid in extending the product life span.


•Easy to maintain with simple LED module replacement.


•Using SMT automatic production line reduces manufacturing variation and improves product quality.


•Unique module design allows for quick assembly and disassembly; especially for temporary exhibits and

renting


Applications:

Exhibition hall, High-end shopping mall, night club, Brand store and metro station, etc.


Our Advantage:
With Slim body, light weight, Ultra Thin design, we can help to save space where the space is very highly

required.

The curve LED screen's biggest advantage is:

  • 360 degree viewing angle without dead angle
  • Effectively expand the visual space
  • Multiple pictures/videos display in synchronously.
  • Eliminate blind angle competely.


Specifications:

Model No. Curve 3
Pixel Pitch 3.9mm
Module Size 62.5*250mm
Module Resolution(pixels) 16*64
Panel Size 250mm×2000mm, be customized as per customer's request. Max can be 250*4000mm
Panel Resolution(pixels) 64×512
Pixel Configuration(RGB) 1R1G1B
Pixel Density(pixels/m2) 65536
Brightness(cd/m2) 1500
Best Viewing Distance(m) >4m
Max.Power Consumption(W/m2) 400
Waterproof Level Indoor IP43
Wavelength R 625±5nm, G 525±5nm B 470±5nm
LED SPEC SMD2020
Viewing Angle 160°(H)/160°(V)
Operating Temperature –20~50°C
Video Frame Rate(Hz) 30-120HZ
Display Refresh Rate(Hz) ≥4000HZ
Grey Level(colors) 16.7million
MTBF ≥50000 hours
Lifespan ≥100000Hours
Working Voltage DC24V
Drive Mode Scan 1/16
Graphics Card DVI Graphics card
Video Signal RF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control System Dbstar
Software Xmplayer 3.1
Installation

Wall mount, hung


Indoor 3.9mm Slim Design flexible led panel For Commerical Ads , High brightnessIndoor 3.9mm Slim Design flexible led panel For Commerical Ads , High brightness

Packing&Shipping

1) Conventional packaging: Standard carton package or with flight case

Customized packaging: We can offer special package according with your special request.

2)Shipping:25 working days, depends on the quantity of your order

Shipping Methods: By Air or By Sea or By Express ,DHL, UPS, FedEx, EMS ... as your requirement
