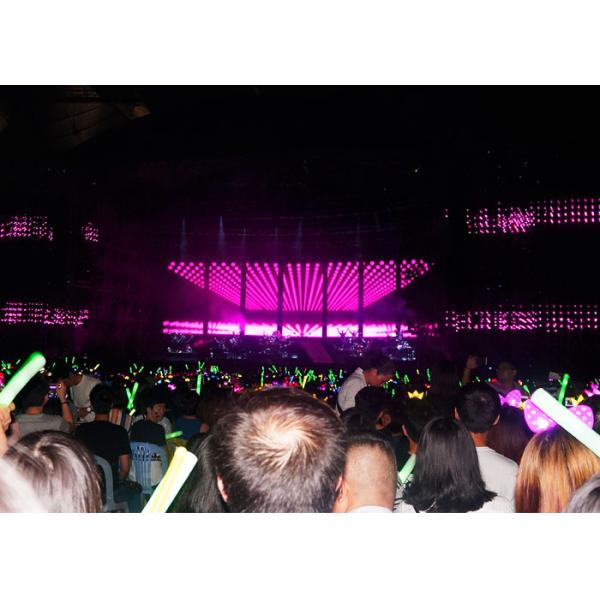

Custom Advertising Stage LED Screens / RGB Led Video Wall Display Rental 32*32 Pixels
Custom Advertising Stage LED Screens / RGB Led Video Wall Display Rental 32*32 Pixels
Specifications
Brand Name :
Onumen
Model Number :
P6mm SMD3535
Certification :
TUV,VOP,CE,ROHS
Place of Origin :
ShenZhen
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, Western Union
Delivery Time :
25days
Packaging Details :
Wooden case or flight case as customer's request.
Pixels :
6mm
Panel size :
192*192mm
Tube Chip Color :
Full Color
Description

Led Screen Display / Led Advertising Display / Indoor Led Display / Led

Flexible Display / Size:192*192mm

Product Description

Famous Brands Raw Material Selection

1)LED: well-known international brand,with wide viewing angle ,little attenuation ,good heat

dissipation, and vivid colors.

2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective

phenomena, such as dark bright, virtual light and so on.

3) Power supply: industrial-strength brand.The power maximum power resere of 20% the space ,

the range of voltage fluctuation is less 5%, high stability.

4) Connector: Aerial grade brands ensure the stable transmission of power and signal.

5) PCB Board: adopt 4-layer design.

6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person.

The replacement of any cabinet can be done within 50 seconds.

Technicail Specification:

Item Technical Specification
Pixel Pixel pitch: 6mm
Pixel configuration: 1R1G1B
Brightness: Red: 1000mcd Green: 2300mcd Blue: 600mcd
Wave length: Red: 625±2nm Green: 525±2nm Blue: 470±2nm
Module resolution: 32*32 pixels
Module Module size: 192mmx192mm
Cabinet size: 192mm×192mm×15mm
Cabinet Cabinet resolution: 9216 pixels
Cabinet material: 27778 pixels / sqm
Gross weight: 9kg / sqm
Module quantity: 16 pcs= 4(w) x 4(h)
Power consumption : Max.:300W/m² Everage: 150W/m²
Screen Drive method: 1/16 scanning
Brightness: 2000cd/m²
IC driver: MBI 5026
Density: 10000 pixel/m²
Whole display flatness: ≤ 1mm juncture
Best view distance: ≥ 8m
Viewing angle: Horizontal: 120° Vertical: 60°
Humidity(RH): ≤ 90~95%
Working temperature: from -30°C to +60°C
Working voltage: AC220V/110V±10%
Refresh frequency: 2400Hz(Zdec) ≥ 300Hz(Linsn)
Frame rate: ≥ 60Hz
Protection grade: IP54
MTBF: More than 10000hrs
Life time: 100,000 hrs
Control system Control system: BSTAR
Signal interface: AV.USB.DP.SDI
Communication distance: Internet cable: ≤120m / Fiber cable: 1000m
Systems operating platforms : XP,WINDOWS(WIN7,WIN10)

Company Information

Custom Advertising Stage LED Screens / RGB Led Video Wall Display Rental 32*32 Pixels

Custom Advertising Stage LED Screens / RGB Led Video Wall Display Rental 32*32 Pixels

Our Services

1)Experienced staffs answer all your query in fluent English,Spanish,French,German etc.


2)Reply your inquiry in 24 working hours.

3)Exclusive and unique solution can be provided to our customer by our well-trained and
professional engineers and staffs.

4)Customized design is available,OEM & ODM are welcomed.

5)Special discount and protection of sales area provided to our distributor.

6)Warmly welcome your visit in our company if available.

7)Warranty: 24 months, a little investment for longer warranty time.
