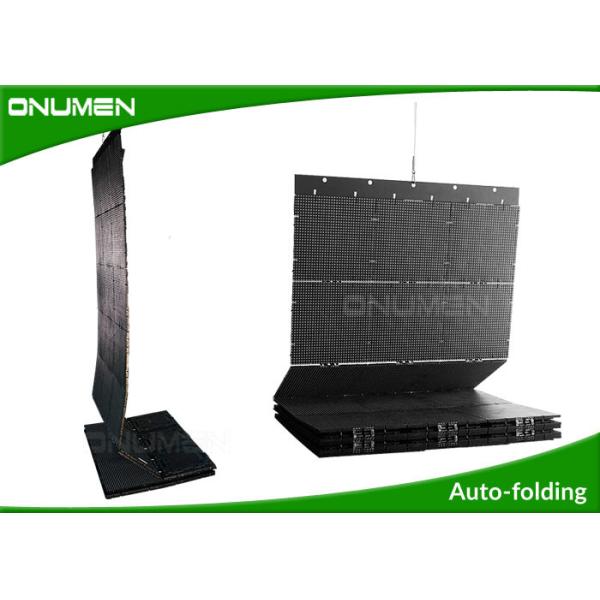

P10 Advertising Led Stage Curtain Screen / Led Display Board With1500nits Brightness
P10 Advertising Led Stage Curtain Screen / Led Display Board With1500nits Brightness
Specifications
Brand Name :
Onumen
Model Number :
OM-F-10P-N
Certification :
TUV.VOP,EMC,CE.ROHS
Place of Origin :
ShenZhen
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
3000//Square Meter/M
Delivery Time :
25days
Packaging Details :
Wooden case or flight case as customer's request
color :
RGB
Tube Chip Color :
Full Color
Usage :
Indoor
Pixels :
10mm
Description

Flexible Led Display / Led Outdoor Display / Led Display Board /

1500nits / Model 160*160mm

Packaging & Delivery

Packaging Details:

standard wooden case or flight case as customer's request.

Delivery Detail:

Shipped in 25 days after payment

Commercial advertising P10 outdoor full color led dispaly

Intdoor LED display technical parameter
Items P10 Intdoor full color led display
Pitch size 10mm
Module size 160mm*160mm
Panel pixel(dots) 16*16
Pixel configuration 1Red,1Green,1Blue
Color scale 256-65536grade/16777216colors
Pixel density 10,000pixels/square meter
View angle(H/V) 120/60degree
Brightness ≥1500cd/square meter
View distance 5-150m
Power consumption 110W/square meter
Net weight 9kg/square meter
Operating temperature —25°C~+60°C
Operating humidity 10%—95%RH
Life time ≥100,000hours
Exchange frame speed >150frames per second
Refresh frame frequency 600Hz
Control distance 100m (without relay),single mode fiber:
20000m,multi mode fiber:500m-20km
Power 110V/220V/380V±15% 50Hz
operating system Windows98/Me/2000/Xp
Drive mode constant current driving
display mode VGA640X480—VGA1600X1024
Protections for outdoor display IP43
Accepting signal PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI
