Flexible Led Curtain Display / Wall Video Screens For Advertising , 3.9mm Pixel Pitch
Flexible Led Curtain Display / Wall Video Screens For Advertising , 3.9mm Pixel Pitch
Specifications
Brand Name :
Onumen
Model Number :
F-P3.9
Certification :
CE/ROHS/FCC/TUV
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T 50% deposit,the balance should be paid before shipment
Supply Ability :
1000sqm per month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in flightcase
Pixel Pitch :
3.9mm
Module Size :
250mmx250mm
Brightness(cd/m2) :
4000
Max.Power Consumption(W/m2) :
400
Control mode :
Video synchronous
LED SPEC :
SMD2020
Folding angle :
180 °
Working Voltage :
DC24V
Drive Mode :
Scan 1/16
Description

Foldable HD Curved lLED Display Wall Video Screens 3.9mm Pixel Pitch For Advertising

Feature:

With foldable,slim,lighter weight,magnetic design, it can be widely used in all fixed installs.


Your best choice for your fixed install!!!

1. Flexible LED screen high brightness and clearly display effective with easy use control system which

allow you easy become enviable LED display experts.

2. Flexible LED screen with high refresh rate,stable brilliant display screen,no flicker display effect more

better

3. Seamless splicing technology,control gap,the new update of back suite.advanced design,beautiful

shape,firm structure ,exquisite techqique,guaranteed quality.

4. Fast install and dismantle.

5. Save 50% of the package space , delivery cost , time of install and dismantle,labor force ect.

6. Multible application ,size can be easily changed and customized.

7. Lightweight,Ultra-Slim Design,180degree foldable

8. Support Magnetic Mounting

9. Silent Design & Cool system

10. Easy to form a double sided screen.

Specifications:

Item P3.9 P5.2
Pixel Pitch(mm) 3.9 5.2
Configuration SMD2020 SMD3528
Module dimension(mm) 62.5*250 62.5*250
Module resolution(dots) 16*64 12*48
Module weight(kg) 0.8 0.77
Pixel density(dots/㎡) 65536 36864
Brightness(cd/㎡) ≥3000 ≥4000
Ave power(W/㎡) 410 270
Max power(W/㎡) 820 540
Scanning 1/16 1/12
Power requirements AC110~220V, 47~63Hz
Signal Transmission CAT Cable:< 100m; Single mode fiber:<10km
Installation type Rental/Fix
Life time(hrs) 100,000
Data input HDMI/DVI/VGA/CVBS/SDI/DP etc.
Module material Flexible PCB and Plastic mask
Certificate CCC/TUV-CE/ETL, etc.
Working temp/humidity -20℃~+50℃/10~80%RH
Storing temp/humidity -20℃~+60℃/10~85%RH
Refresh frequency(Hz) ≥4000
Les angle 120°-160°
Gray scale(bit) 16bit x16bitx16bit
Viewing angle(°) Horizontal: 110° Vertical: 110°
Brightness adjustment 256 levels by software manual
Contrast ratio 2500;1
Flatness error(mm) ≥0.1


Applications:

Business Organizations supermarket, large-scale shopping malls, , chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations

Banks, negotiable securities, funds, insurance companies, pawnshops;

Non-profit Organizations: Telecommunications, post offices, hospital, schools;
Public Places subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms,
Entertainments Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course

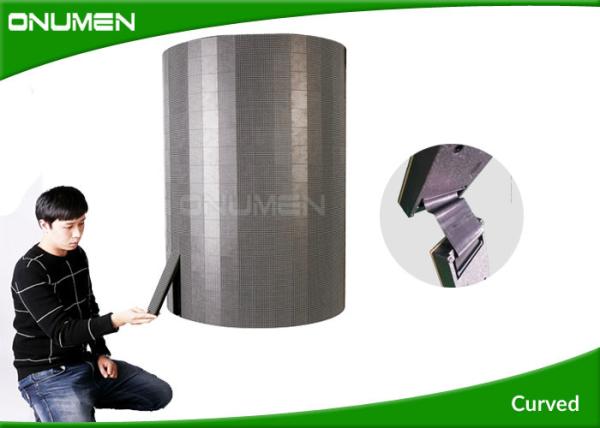

Product Picture:

Flexible Led Curtain Display / Wall Video Screens For Advertising , 3.9mm Pixel Pitch

Trade terms:


1.Payment term:50%T/T as prepayment,


2.Delivery time:25 working days after receipt of deposit Payment


3.Price: discount is based on quantity.


4.Shipping :By air or by sea

Our sevice:


1.Prompt reply .Your inquiry related to our products will be reply within 24 hours


2.OEM&ODM,diverse models, dimension and design of LED display for customer selection,


3.Protection of your ideas of design and all your private information


4.Provide free train and skillful engineer will help you solve you problem at your time

5. Warranty:2 years

6.We will send some spare parts for our clients after you take an order.
