Z Type City Folding Container House With 2 Bedroom Collapsible House Easy Install
Z Type City Folding Container House With 2 Bedroom Collapsible House Easy Install
Z Type City Folding Container House With 2 Bedroom Collapsible House Easy Install
Z Type City Folding Container House With 2 Bedroom Collapsible House Easy Install
Z Type City Folding Container House With 2 Bedroom Collapsible House Easy Install
Z Type City Folding Container House With 2 Bedroom Collapsible House Easy Install
Z Type City Folding Container House With 2 Bedroom Collapsible House Easy Install
Z Type City Folding Container House With 2 Bedroom Collapsible House Easy Install
Z Type City Folding Container House With 2 Bedroom Collapsible House Easy Install
Z Type City Folding Container House With 2 Bedroom Collapsible House Easy Install
Specifications
Brand Name :
Lontl
Place of Origin :
Hebei ,China
MOQ :
3 Sets
Payment Terms :
T/T, L/C
Delivery Time :
8-10 days after receiving your prepayment
Product Name :
Z type City Folding Container House with 2 bedroom Collapsible House Easy install
Key Words :
Z Type Folding Container House
Main Frame :
0.23 mm Spray Painted Galvanization Steel Tube
Purline :
Galvanization Steel Tube
Wall Partition :
50 mm rock wool with 0.33 mm color steel plate
Door :
0.4 mm Steel Door
Roof :
0.42 mm Color Steel Plate
Door Glass :
Single Layer Glass
Specification :
Can be customized upon request
Description

Z type City Folding Container House with 2 bedroom Collapsible House Easy install

What’s the Z-Type Folding Container House ?

The Z-type folding container house is a specific type of fold-able container house that features a unique folding mechanism in the shape of the letter "Z." It is designed to provide a compact and portable housing solution that can be easily transported and expanded on-site. The Z-type folding container house offers several advantages, including efficient space utilization and quick assembly.

The Size of the Z-Type Folding Container House:

Folding House Packing List

Product specifications

 Folded Height H=440mm
Loading capacity 1*40HQ=10 units
Length*Width*Height(mm) 5830mm*2500mm*2470mm
Roof Form Flat Roof
Number Of Layers ≤2 layers

Structure

 Column Specifications=50mm*160mm,Roller beam,Material Thickness=2.3mm,Material=Q235B
Roof Main Beam Specifications=50*160mm,Roller beam,Material Thickness=2.3mm,Material=Q235B
Roof Secondary Beam Galvanized Cold Rolled Section Steel C Type,Material Thickness=1.0mm,6 Pices,Material=Q235B
Ground Main Beam Height=50*140mm,Roller beam,Material Thickness=2.3mm,Material=Q235B
Ground Secondary Beam Galvanized Cold Rolled Section Steel C Type,Material Thickness=1.5mm,9 Pices,Material=Q235B
Bolt 8.8 Class High-Strength Bolts, 6
Paint Electrostatic spraying plastic powder baking varnish ≥80μm
Roof Roof Panel EPS Color Steel Sandwich Panel,Thickness=50mm,Color=White-Gray, Falls freely into the water
Floor Substrate 18mm Fireproof Glass Magnesium Board

Panel

 Insulation Cotton 50mm Thickness Color Steel EPS Sandwich Panel,Class B Fire Protection
Color steel Plate Panel Coler Streel Plate Thickness=0.4mm
Door Specification Width*Height=840mm*1900mm
Material Steel Door, Concealed Buckle Lock

Window

 Specification 950mm*1100mm
Fram Material Plastic Steel
Glass Single Glass

Electricity

 Voltage 220V,50Hz
Wire Concealed Line, Total Home Power Line 3*4 Square, Air-conditioning line 3*4 square, Socket Line 3*2.5 Square, Lighting Switch Line 2*1.5 Square
Breaker High Breaking Miniature Circuit Breaker
Illumination 1 set of 1200*300 ultra-thin LED lights, power 36W
Socket 4 Five-hole sockets 10A (or USB socket), 1 Three-hole air conditioner socket 16A, 1 Single switch 10A
Other Folding hardware Special Parts, No Hinges
Standardized construction is adopted, and equipment and accessories conforming to national standards are used

Z-Type folding Container House Structure & Technology :

Z Type City Folding Container House With 2 Bedroom Collapsible House Easy Install

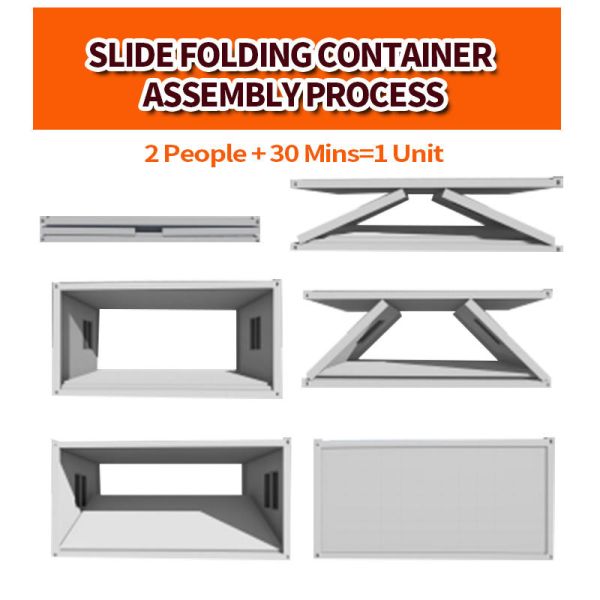

How to install the Z-Type folding Container House:

Z Type City Folding Container House With 2 Bedroom Collapsible House Easy Install

Z-Type folding Container House Application/Usage:

Z Type City Folding Container House With 2 Bedroom Collapsible House Easy Install

Z Type City Folding Container House With 2 Bedroom Collapsible House Easy Install

Z Type City Folding Container House With 2 Bedroom Collapsible House Easy Install
