86cm Height Adjustment Patient Transfer Trolley Shifty Transfer Assist Trolley Medical Care
86cm Height Adjustment Patient Transfer Trolley Shifty Transfer Assist Trolley Medical Care
86cm Height Adjustment Patient Transfer Trolley Shifty Transfer Assist Trolley Medical Care
86cm Height Adjustment Patient Transfer Trolley Shifty Transfer Assist Trolley Medical Care
86cm Height Adjustment Patient Transfer Trolley Shifty Transfer Assist Trolley Medical Care
86cm Height Adjustment Patient Transfer Trolley Shifty Transfer Assist Trolley Medical Care
86cm Height Adjustment Patient Transfer Trolley Shifty Transfer Assist Trolley Medical Care
86cm Height Adjustment Patient Transfer Trolley Shifty Transfer Assist Trolley Medical Care
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Dinggong
Model Number :
MDK-ZY02
Packaging Details :
Carton
Supply Ability :
100 Piece/Pieces per Month
Price :
$1,000.00 - $1,200.00/Pieces
Power Source :
Hydraulic
Warranty :
1 Year
After-sale Service :
Online technical support
Material :
ABS
Shelf Life :
5 years
Quality Certification :
ce
Instrument classification :
Class I
Safety standard :
GB2626-2006
Application :
Emergency Rescue
Size :
193*64*56-86cm
Back Lift :
0-75°
Knee lift :
0-40°
Certificate :
CE ISO
Color :
Blue
Function :
Medical Care
MOQ :
1PC
Port :
shanghai
Description

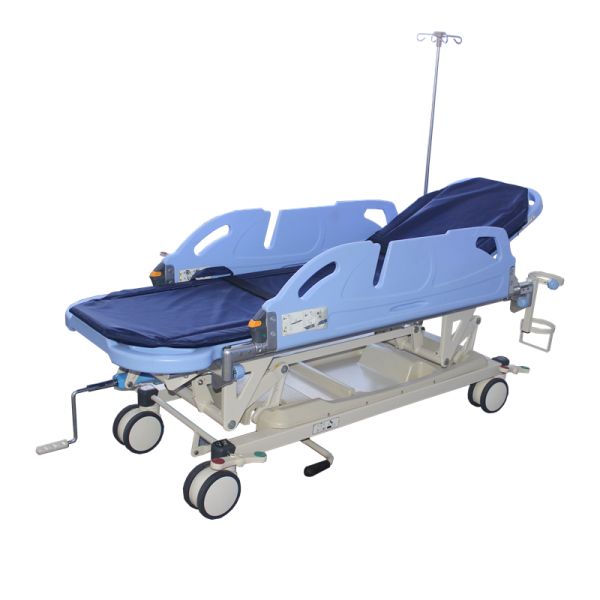

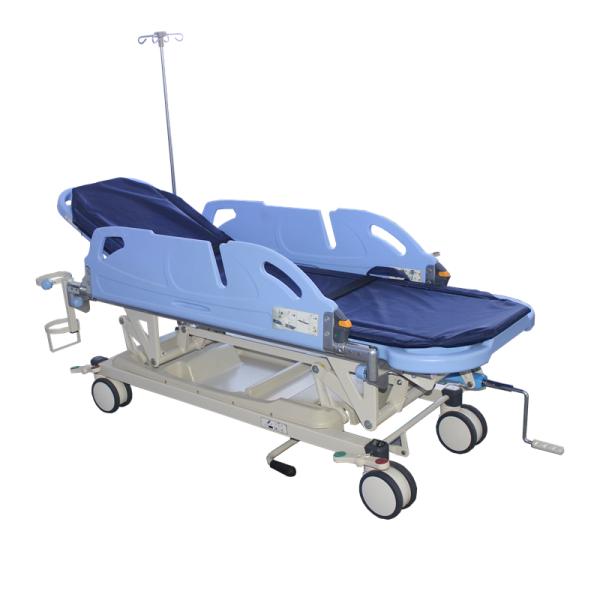

High Quality And Reliable MDK-ZY02 Emergency Hydraulic Patient Transfer Trolley Stretcher

Product Paramenters
Specification
External(L*W*H) 215*62*56-89 cm
Height Adjustment 56~89 cm
Safe Working Load 220 kg
Back-rest Adjustment 0~75 °
Knee-rest Adjustment 0~40 °
Tilt Adjustment -18 °~18 °

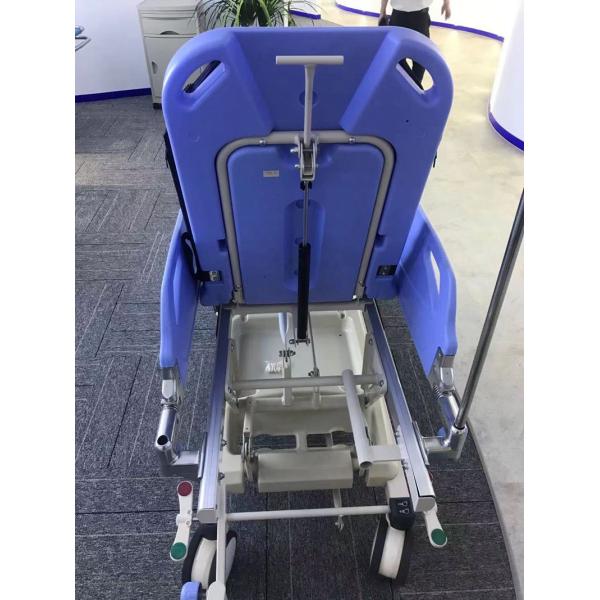

1. Back lifting system: controlled by silent double gas spring, it has strong load-bearing and good stability.
2. High and low lifting system: controlled by imported oil cylinder, the quality is more stable. There are 5 circular cylinder protection sleeves made of ABS injection molding on the outside of the hydraulic cylinder. The overall color is coordinated, which is not easy to accumulate dust and easy to clean.
3. Bed board: made of anti Beite material, with higher strength and no deformation.
4. Frame: made of high-quality steel elbow welding.
5. Guardrail board: PP resin molding guardrail boards on both sides, with a height of 300mm, better safety protection, and can also be fixed horizontally to increase the width of the bed, so that the arms of the infusion patients can be placed comfortably; The utility model has a double safety lock for locking to prevent misoperation and improve the safety of operation.
6. The angle display is set on the guardrail plate to facilitate understanding the rising angle of the back during nursing; There are grooves in the middle of the guardrail plates on both sides to prevent the catheter from sliding and facilitate infusion and drainage. Each side of the guardrail is riveted by 5 die-casting aluminum and 11 stainless steel rivets, with high strength. There is a transparent anti-oxidation layer on the surface of die-casting aluminum to prevent rust spots caused by oxidation reaction for a long time.
7. Casters: four casters with a diameter of 200mm are used for central locking. The four corners of the cart are equipped with caster control system, one foot braking and four wheels are fixed at the same time.
8. The central control brake linkage rod is formed with an integrated round tube to ensure higher strength.
9. Independent central fifth wheel system: control pedals are installed on both sides of the cart, which can move freely when the central fifth wheel is retracted; When in use, it is in the "straight" state (the step bar is 105mm above the ground and has better trafficability), which overcomes the inertial force in the transportation process, effectively controls the forward direction and makes the transportation process safer.

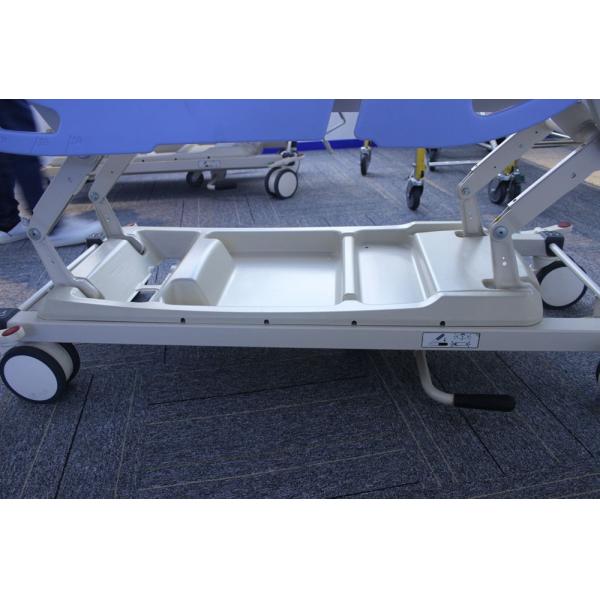

10. There is an integrated tray under the bed, which can place oxygen bottles. It is easy to use, and the tray can bear 10kg.
11. Both sides below the side of the bed are equipped with infusion racks, which can be fixed and collected.
12. Mattress: the surface of the fabric is waterproof, easy to clean, equipped with zipper, the external fabric can be washed, and the 7 cm sponge is comfortable to lie down.
13. There are anti-collision wheels and anti-collision blocks around the bed, which have a beautiful appearance to prevent collision in the implementation process, and can play a protective role.
14. Push handle: a P-shaped push handle is set at the head of the bed, with foaming treatment on the surface, comfortable grip, and can be folded and put down when not in use, so as to facilitate medical staff to take first-aid measures. There is a U-shaped handle at the end of the bed, and the surface is soaked with plastic to improve the grip and beauty.
15. Spray the steel bed frame, conduct electrophoretic treatment after pickling and phosphating, and then spray powder for double-layer spraying, which has better protection.
Configuration list:
1. 1 bed body; 2. 2 integrated guardrails; 3. 4 central control casters; 4. 4 sets of central control locking pedal; 5. One set of the fifth wheel of the center; 6. 2 integral lifting oil cylinders; 7. 2 back lifting air springs; 8. Knee handle 1 8. One integrated bottom tray; 9. 1 infusion stand; 10. 4 jacks of standard infusion stand; 11. 1 WATERPROOF mattress; 12. 1 recording desk (optional);
Details Images
86cm Height Adjustment Patient Transfer Trolley Shifty Transfer Assist Trolley Medical Care
86cm Height Adjustment Patient Transfer Trolley Shifty Transfer Assist Trolley Medical Care
86cm Height Adjustment Patient Transfer Trolley Shifty Transfer Assist Trolley Medical Care
86cm Height Adjustment Patient Transfer Trolley Shifty Transfer Assist Trolley Medical Care
86cm Height Adjustment Patient Transfer Trolley Shifty Transfer Assist Trolley Medical Care
86cm Height Adjustment Patient Transfer Trolley Shifty Transfer Assist Trolley Medical Care
Recommend Products
Certifications
86cm Height Adjustment Patient Transfer Trolley Shifty Transfer Assist Trolley Medical Care
Exhibition
86cm Height Adjustment Patient Transfer Trolley Shifty Transfer Assist Trolley Medical Care
86cm Height Adjustment Patient Transfer Trolley Shifty Transfer Assist Trolley Medical Care
86cm Height Adjustment Patient Transfer Trolley Shifty Transfer Assist Trolley Medical Care
86cm Height Adjustment Patient Transfer Trolley Shifty Transfer Assist Trolley Medical Care
Product packaging
86cm Height Adjustment Patient Transfer Trolley Shifty Transfer Assist Trolley Medical Care
FAQ
86cm Height Adjustment Patient Transfer Trolley Shifty Transfer Assist Trolley Medical Care
Q1. Are you a factory or trading company?
A: We are a Professional Manufacture for Hospital Furniture.
Welcome to our company, seeing is believing, our company, show room and factory in same place.

Q2. Where is your factory located? How can I visit there?
A: Our factory is located at Zhangjiagang Suzhou, Jiangsu Province,China, near to Beijing or Tianjin. Welcome to our company.

1. What is your trading term?
A:1. Payment term: T/T 50% deposit(at least) after order confirmed, 50% balance paid against bill of lading, or L/C , or
Western Union for small amount .
2. Lead time: normally in 30 days after deposit received.
3. Sample policy: Samples are always available for each model. Samples can be ready in 7-15 days once payment received.
4. Shipping port: Tianjin/XinGang, China
5. Discounts: We offer discount for big quantity.


Q: what to purchase your product?
A: Quotation → PI → Confirm PI → Arrange 50% deposit (at least) →Producing →QC inspect → Pay balance → Shipping
