Product Name

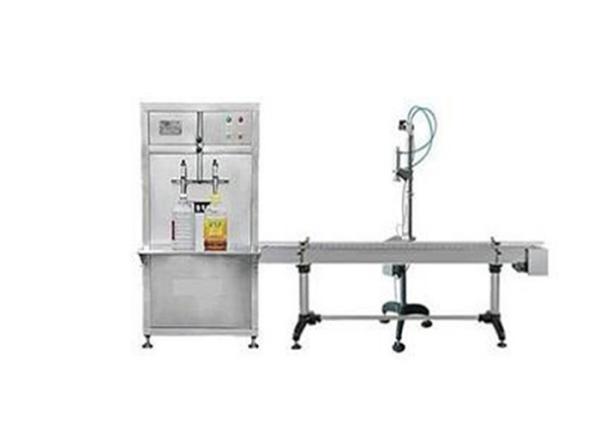

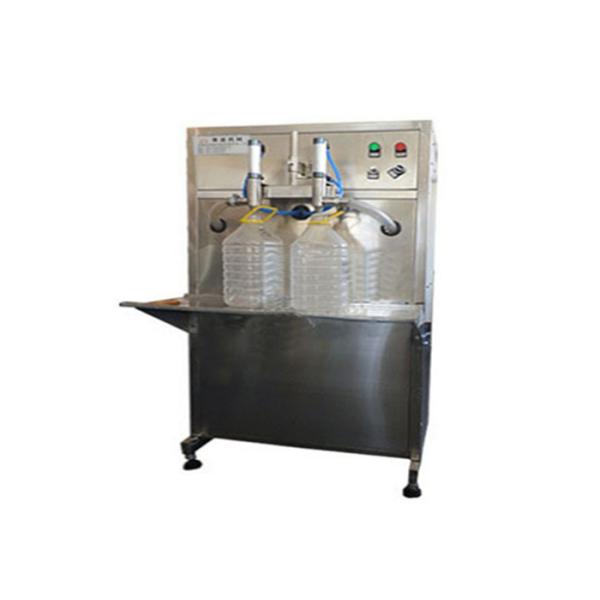

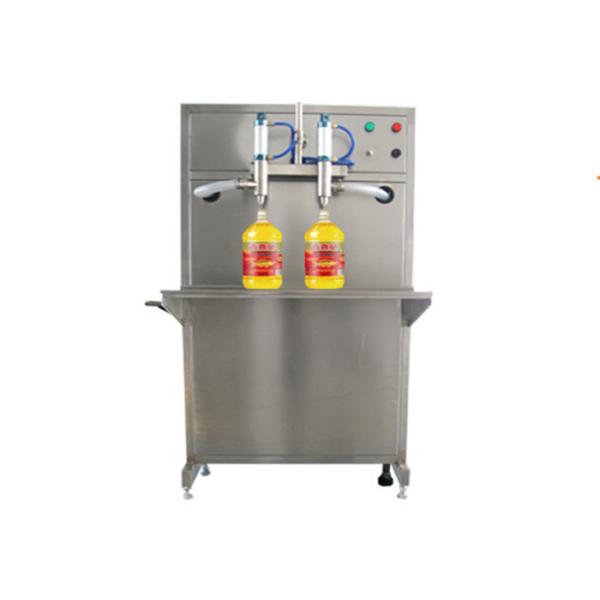

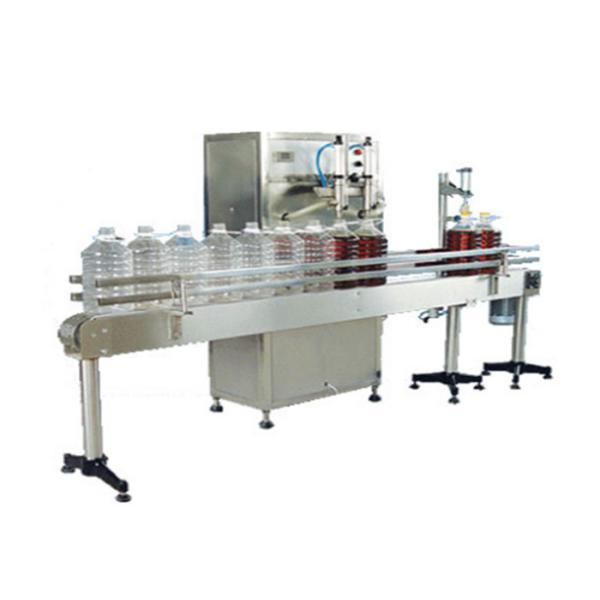

Small dose filling machine Semi Auto Filling Machine Quantitative liquid filling machine

Description:

Small-dose filling line is mainly suitable for filling of oil products, such as vegetable oil, machine oil, diesel oil, corn oil, rapeseed oil, peanut oil, olive oil, blending oil, chili oil, etc. for petroleum, chemical, food, etc. industry.

Low-dose filling line parameters:
Filling machine head number: 2 head
Filling method: Piston
Production capacity: 200-400 bottles / hour
Capacity range: 0.1-5 (liter)
Filling accuracy: ≤ ± 0.5% FS
Air pressure: 0.5-0 .7 Mpa

Features:
1. The overall use of food-grade corrosion-resistant stainless steel, nice.
2. Mechanical seal plus vacuum suction double anti-drip.
3 fast first and slow double-speed efficient filling, filling bulk head with anti-drip, anti-drawing and lifting filling device.
4. Cylinder piston and cylinder are made of PTFE and stainless steel materials, filling volume and filling speed can be adjusted, filling high precision.
5. This machine is mainly composed of magnetic cylinder, cylinder and electrical control components, with the overall structure is simple, accounting for the ground is extremely small, easy to operate advantages.

Care instructions:
1. Open the main chassis, clean the tank of oil and other debris.
2. Check the fastening of each fastening one by one, if found to be loose, immediately tighten.
3. Lubricate the filling mechanism and each sliding mechanism with lubricating oil.
4. Check the automatic edible oil filling machine motor timing belt wear, replace the damaged belt, adjust the belt tensioning mechanism, so that the size of moderate.
5. Check the triangular clamp washers and replace if damaged.
6. Drain the concentrated water from the main service unit and check the filter element and replace if necessary.
7. glove box glove leak test, if leaks must be replaced.
8. Adjust automatic oil filling machine parts clearance and to be fastened.
9. Inspect and clean toothed belt, replace if any loss.

FAQ

Q1: How to visit our Factory? (not a trade company)

A: Shanghai Airport→Pick you up

Q2: How does your factory do the quality control?

A: “QUALITY FIRST " We purchase qualified parts, test the machine every step when manufacturing. We have SGS certification and ISO certification.

Q3: How about the installation?

A: Option 1, our engineer install the machines for you, also train your staff until they can run the machine independently.

Option 2, you learn this in our factory.

Q4:Do you have after-sale service?

A: 1 Year Warranty and timeless maintenance service.

Q5: How about the payment term?

A: Payment term:1, T/T 30% , 70% before shipping.

Service:

One year warranty + lifetime maintenance + tailored + long-term tracking service is the principle of Shanghai Duxia Co., Ltd. .We’re equipped with a number of comprehensive technical and technical personnel on-site service for customers to solve technical problems. Our company provides a full range of installation and commissioning, maintenance, training, technical advice and other pre-sale and after-sale service. Advanced technology, reliable quality, reasonable prices and perfect after-sales service make you get the best products and services.
