Plane / Flat Surface Automatic Labeling Machine High Speed Stainless Frame
Plane / Flat Surface Automatic Labeling Machine High Speed Stainless Frame
Plane / Flat Surface Automatic Labeling Machine High Speed Stainless Frame
Plane / Flat Surface Automatic Labeling Machine High Speed Stainless Frame
Plane / Flat Surface Automatic Labeling Machine High Speed Stainless Frame
Plane / Flat Surface Automatic Labeling Machine High Speed Stainless Frame
Plane / Flat Surface Automatic Labeling Machine High Speed Stainless Frame
Plane / Flat Surface Automatic Labeling Machine High Speed Stainless Frame
Plane / Flat Surface Automatic Labeling Machine High Speed Stainless Frame
Plane / Flat Surface Automatic Labeling Machine High Speed Stainless Frame
Specifications
Brand Name :
TANGREN
Model Number :
DX
Certification :
ISO,SGS
Place of Origin :
China
MOQ :
1 set
Supply Ability :
10 per month
Delivery Time :
30 working days
Product name :
Plane Labeler
Catagory :
labeling machine
Usage :
cigarette,bag,cards,toothpaste and other flat boxes
Capacity :
30-150 30-90 50-200
Label size :
10-130
Box size :
(L)20-300×（W）20-200×(H)15-250 (L)20-300×（W）20-200×(H)0.3-2
Description

Product Name

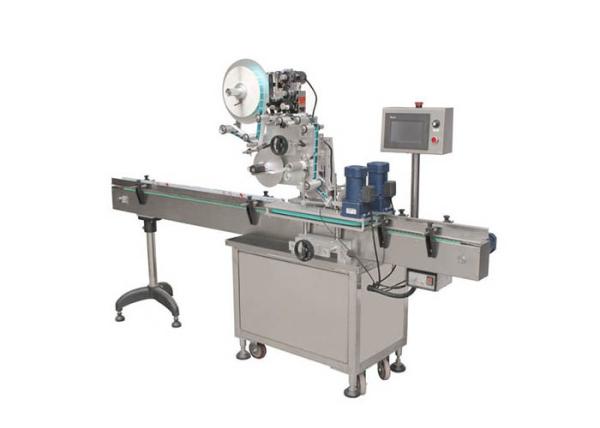

Plane Labeler For Flat Boxes Automatic Labeling Machine High Speed

DTB-J is suitable for flat or quadrate container widely such as cigarette,bag,cards&toothpaste box etc.The machine is economical and easy to operate,equipped with friendly HIM and PLC control system.The performance is stable with a level off especially at the top of container.The system easy changover based the requirement.

Key features:

● Labeling speed up to 150 pieces/minutes(according to the length of label)

● HIM&PLC Control System which is easy to control

● Simple Straight Forward Operator Controls

● On-screen trouble description

● Stainless Frame

● Open Frame design,easy to adjust and change the label

● Variable Speed with stepless motor

● Label Count Down(for pieces run of set number of labels)to Auto Shut Off

● Stamping Coding Device(Optional)

Specifications:

Model DTB-J DTB-J-D DTB-J-F
Capacity(b/m) 30-150 30-90 50-200
Size of Container(mm) (L)20-300×(W)20-200×(H)15-250 (L)20-300×(W)20-200×(H)0.3-2
With of label(mm) 10-130
Motor power(kw) 1.5 3 2

Plane / Flat Surface Automatic Labeling Machine High Speed Stainless Frame

Plane / Flat Surface Automatic Labeling Machine High Speed Stainless Frame

Plane / Flat Surface Automatic Labeling Machine High Speed Stainless Frame

Plane / Flat Surface Automatic Labeling Machine High Speed Stainless Frame

Warranty:

One year warranty + lifetime maintenance + tailored + long-term tracking service is the principle of Shanghai Duxia Co., Ltd. .We’re equipped with a number of comprehensive technical and technical personnel on-site service for customers to solve technical problems. Our company provides a full range of installation and commissioning, maintenance, training, technical advice and other pre-sale and after-sale service. Advanced technology, reliable quality, reasonable prices and perfect after-sales service make you get the best products and services.
