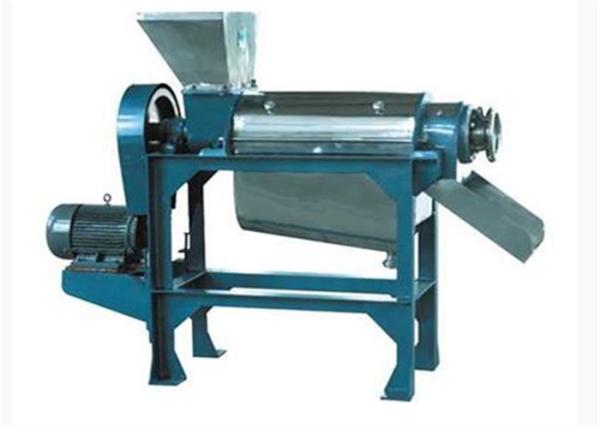

Stainless steel screw juicing machine for canned product preparing

Discription:

use
The machine is suitable for squeezing tomatoes, pineapples, apples and oranges and other fruits and vegetables juice.

parameter

The main structure principle
Juicing: The main component is to go nuclear after the pulp, juice, skin through the bucket into the screw juicer, spiral, spiral slag outlet along the direction of the bottom diameter gradually increased while the pitch is gradually reduced, when the material is spirally propelled, Due to the volume of the screw chamber is reduced, the formation of the material squeezing. The direction of rotation of the screw spindle from the feed hopper to slag tank direction, clockwise. The raw material is fed into the hopper and pressed under the helical propulsion. The squeezed juice flows through the strainer into the bottom juice holder, and the waste is discharged through the annular gap formed between the spiral and the conical part of the pressure regulation. The pressure head moves in the axial direction to adjust the size of the gap. For clockwise (from the slag tank device to the feed hopper to see turning the hand wheel bearing seat, the pressure regulator head to the left, the gap is reduced, otherwise the gap becomes larger.) Change the size of the gap, that is, adjust the slag Of the resistance, you can change the slag rate, but if the gap is too small, under strong extrusion, part of the slag particles and the juice will be squeezed through the filter, despite the increase in juice, but the relative decline in the quality of juice, voids Depending on the size of the user specific process requirements may be. So as to achieve the purpose of automatic separation of juice and slag.

Shipping:



Q&A
Q1: How to visit our Factory? (not a trade company)
A: Shanghai Airport→Pick you up
Q2: How does your factory do the quality control?
A: “QUALITY FIRST " We purchase qualified parts, test the machine every step when manufacturing. We have SGS certification and ISO certification.
Q3: How about the installation?
A: Option 1, our engineer install the machines for you, also train your staff until they can run the machine independently.
Option 2, you learn this in our factory.
Q4:Do you have after-sale service?
A: 1 Year Warranty and timeless maintenance service.
Q5: How about the payment term?
A: Payment term:1, T/T 30% , 70% before shipping.
