Full Automatic Liquid Filling Machine , Syrup / Wine Beverage Filling Machine
Full Automatic Liquid Filling Machine , Syrup / Wine Beverage Filling Machine
Specifications
Brand Name :
TANGREN
Model Number :
DX
Certification :
ISO,SGS
Place of Origin :
China
MOQ :
1 set
Supply Ability :
1 set per day
Delivery Time :
30 working days
Packaging Details :
film packing or wooden box packing L12000 x W3000 x H2500mm
Product Name :
DX-K150 Automatic High Speed Oral Liquid Filling Production Line
Voltage :
380V
Material type :
liquid
Category :
Filling machine
Capacity :
customize
Description

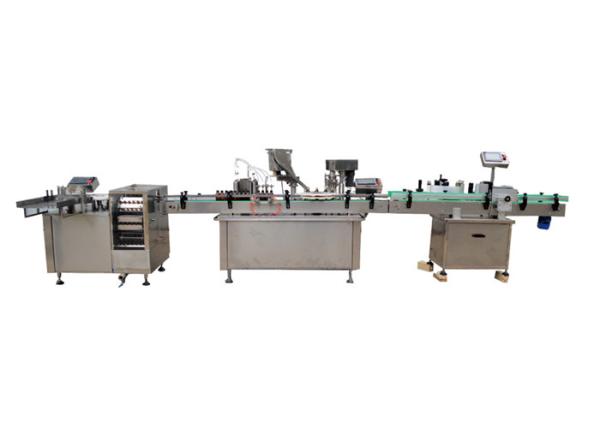

Full Automatic Liquid Filling Production Line for Syrup Juice Wine Beverage drinks

Application: This machine is mainly used for syrup, juice, wine, beveragedrinks, soybean sauce, vinegar, cod-liver oil, olive oil, essential oil, hair oil, ink, disinfectant, injection, and so on various liquid automatic filling and production, has function of bottle unscrambling, washing, filling & capping, and labeling.

Performance feature:
1. Workflow: bottle unscrambling --bottle washing (optional)?--filling--adding cap --capping -- labeling --ribbon printing/ink jet printing (optional)
1. AdoptsMachine uses plunger type metering pump filling, high precision; The structure of pump adopts fast
disassembledly institutionsmechanism, easy to clean and disinfect.
2. PLC control system, color touch screen display, machine has function of counting automatically.
3. The filling nozzle was equipped with drip-proof device.
4. When filling liquid, the filling nozzle dive into the bottom of bottle, rising slowly, it can effectively prevent bubbles.
5. Main electrical elements adopts foreign well-known brands.
6. Machine shell is made of 304 stainless steel, full compliance withmeets GMP standard.

Technical parameter:

Model

YB-YGX4

YB-YGX6

Filing head number

4

6

Filling volume

50-500ml

50-500ml

Capacity

10-40 bottles/min

20-70 bottles/min

Filling accuracy

≤ ±1%

≤ ±1%

Pass rate

≥ 98%

≥ 98%

Label size

L: 20-300mm, H: 15-180mm

L: 20-300mm, H: 15-180mm

Label accuracy

≤ ±1mm

≤ ±1mm

Power supply

1 Ph. AC220V, 50/60Hz

1 Ph. AC220V, 50/60Hz

Total power

3.0 KW

3.2 KW

Net weight

1200kg

1250kg

Overall dimension

L7000 × W1500 × H1650mm

L7300 × W1500 × H1650mm

Shipping:

Full Automatic Liquid Filling Machine , Syrup / Wine Beverage Filling Machine


Q&A
Q1: How to visit our Factory? (not a trade company)
A: Shanghai Airport→Pick you up
Q2: How does your factory do the quality control?
A: “QUALITY FIRST " We purchase qualified parts, test the machine every step when manufacturing. We have SGS certification and ISO certification.
Q3: How about the installation?
A: Option 1, our engineer install the machines for you, also train your staff until they can run the machine independently.
Option 2, you learn this in our factory.
Q4:Do you have after-sale service?
A: 1 Year Warranty and timeless maintenance service.
Q5: How about the payment term?
A: Payment term:1, T/T 30% , 70% before shipping.
