Specifications
Brand Name :
Keysong
Model Number :
KS-4000
Certification :
CE ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
USD 8000-30000 per set
Supply Ability :
20 sets per month
Delivery Time :
15 working days after receiving the deposit
Packaging Details :
Plastic packing inside, wooden case packing outside
Material :
food grade stainless steel 304
Weight :
1.1Ton
Automatic :
full automatic
Voltage :
three phase can be adjusted
Self design :
machines can be designed for customers
Dimension :
4000*1500*2100mm
Description

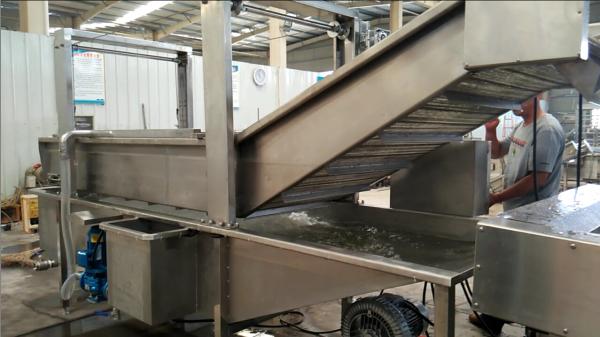

High Pressure Air Bubble Washing Machine For Fruits and Vegetables

Function

has wide application in washing fruits (strawberry, apple, cherry and so on) date, potato, fresh ginger, flake vegetables, leaves and so on.

Advantages

the washing speed can be adjusted freely with frequency converter controller; materials can be washing completely with techniques of bubble rolling, brush washing and high pressure spraying.

Technical parameter of KS-4000 ginger washing machine

Motor power: Total installed power: 6.65kw,

Transmission power: 0.75kw,

Lifting power: 0.55kw, water pump: 0.75kw,

Vortex fan motor: 4.6kw,

220v/60hz, three phase

Dimension: 4000*1500*2100(length*width including the overflow tank*height), some deviation is allowed.

Material

1. Equipment box is all made of 3mm stainless steel 304 plate.

2. Equipment box must be tested after being welded to make sure that it will not leak water.

3. The sewage discharging valve is installed at the lowest part of the equipment box.

Mesh belt and support

Mesh belt and the support

1. Mesh belt speed: can be adjusted freely with frequency converter.

2. Technical parameters: width: 800mm

3. Mesh belt support: 4mm stainless steel 304 with cold bending docking.

4. 10cm space is left on both side of the mesh belt for easy washing.

5. Bearing and bearing block all use stainless steel.

6. Mesh belt material: stainless steel 304.

Full Automatic Apple Processing Equipment , Fruit And Vegetable Washer Machine

Full Automatic Apple Processing Equipment , Fruit And Vegetable Washer Machine

Full Automatic Apple Processing Equipment , Fruit And Vegetable Washer Machine




Note

1.It can be connected to the next processing step like cutting, drying, or packing in a whole
processing line.

2. The size can be made larger as per clients' needs, and we also provide OEM service.

Our Services

Pre-sale service:

1 Recommend the most suitable machine for customers,or design the machine
specially according customers demand
2 strictly control easy production line and easy parts,to ensure machine quality.
3 every machine is tested before delivery,to ensure machine function well.

After-sale service:

1 one year warranty
2 lifelong free technical support and spare parts support
3 help customers solve problem rapidly

remark:Quality guarantee term is for one year.Malfunctions which are Caused by machine-self
and quality will be responsible for our manufacturer. Other malfunctions which are caused by
operation mistakes, man-made problems, etc will be responsible for clients-self.
