Snack Food Dryer Machine Three / Five / Seven Layer 380v / 220v

Specifications

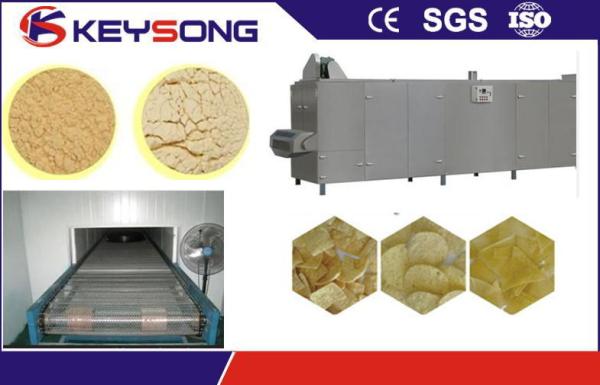

Roasting oven for snacks, dryer, oven dryer

Snacks food dryer, pellet snack dryer, puff dryer

Snacks food dryer
1. Multi layer dryer
2. Drying snacks, pet food
3. Capacity: 200KG/H, 500kg/h, 1000kg/h

1. Description:

Compact in frame, facilitated in operation, low occupation of space, light in weight, steady in performance, large drying area, and more heating efficient. The belt and the heat preservation use the stainless steel. Asbestos plates are available for avoiding losing heat. A fan with 3.0KW is on the top of oven to removing moisture.

A frequency converter can adjust the drying time for the product speed.

Variable speed of the belt is available. Electricity heating is heated by infrared heating pipe by electricity.

There is a convenient set for spraying lubricating oil to the bearings.

2. Products:

This machine can be used to produce soya nuggets, cereal, snacks

3. Capacity:

240kg/h, 500kg/h, 1ton/h,2t/h.3t/h

4. Voltage

in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries

5. Machines materials:

All the machines are made by stainless steel

6. Features

1. The whole machine is compact design, logical and easy operation.

2. Driving system adopts double pitch roller chain driving, circulating drying, and balanced running, never jam.

3. Drying temperature and time can be adjusted, effect of drying is capitally.

4. With high efficiency fuel saving system, reasonable heat distribution, material be heated equally, low energy but large output.

5. A frequency converter can adjust the drying time for the product speed.

6. Heat with infrared ray heating tube, raising and lowering temperature quickly, low heat inertia and high heat efficiency.

7. Mesh belt transmission speed of the multi-layer dryer can be adjusted and equipped with accurate and reliable temperature control device for easy adjustments.

8. Sliding board bottom of dryer for easy cleaning.

7. Technical Parameters
