Large Capacity Food Extruder Machine Two Screw Extruder 800 - 1200kg / H For Bugles
Large Capacity Food Extruder Machine Two Screw Extruder 800 - 1200kg / H For Bugles
Large Capacity Food Extruder Machine Two Screw Extruder 800 - 1200kg / H For Bugles
Large Capacity Food Extruder Machine Two Screw Extruder 800 - 1200kg / H For Bugles
Large Capacity Food Extruder Machine Two Screw Extruder 800 - 1200kg / H For Bugles
Large Capacity Food Extruder Machine Two Screw Extruder 800 - 1200kg / H For Bugles
Specifications
Brand Name :
Keysong
Model Number :
KS90
Certification :
CE ISO SGS
Place of Origin :
China, Shandong
MOQ :
1 set
Price :
Negotiable
Supply Ability :
30 sets per month
Delivery Time :
15-25 working days
Packaging Details :
Plastic packing inside, wooden case outside
Material :
Equipments are made of stainless steel
Design :
Equipment can be designed for customers
Model :
KS-90
color :
without color
voltage :
three-phase voltage
power :
electric
Description

Large Food Extruder Machine KS90 Two Screw Extruder For Bugles

1. Introduction

This machine is produced according to international standard,key parts are imported,extruder control system adopts computer program automation design.It can carry out best parameter enactment according to different recipe,water,pressure and temperature.Working course is more simple and reliable.SAIXIN85 large size double screw extruder machine achieves firstly processing 400-500kg/h in civil same lines and meets customers'desire of low cost investment and high benefit output.The advent of this machine marks the extruding and inflating technology has come to international making standard.It has been widely used in inflating food,medicine and chemistry,fodder etc.

2. Specifications

Stainless steel
1. Large capacity conveying
2. Wide range of application
3. Adjustable and movable
4. High output energysave

The performance and quality of extrusion snake processing line have reached top class level in this

trade.From feeding material,extruding,core filing,shipping,roasting,spraying to finished products can

be done once time automatically.This processing line can product all kind of extrusion foodstuff,rice

bread,rolling snakes,grain gruel,nutritional flour and so on.

3. Main features:

1.Double screw extruder are consisting of feeding system,extruding system ,cutting system,hearing

system ,gearing system and controlling system.

2.Consists of feeding system,extruding system and cutting system,adopts frequency speed-controlling with high automation and stable per-formation.

3.Automatic lubricating and forced cooling guarantee the extruder running safely.

4.According to different material,choose the relative single or double screw feeding system ,

the material should be uniformity and stable.

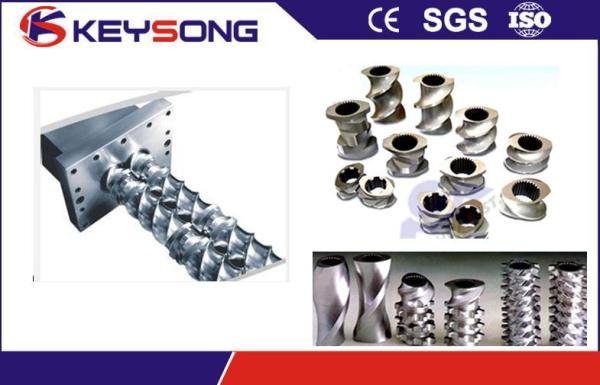

5.Screw is made by special technique and able to bear grinding, steady and reliable,longer using life.

6.According to different screw design rate to full different technology request.

4. Application:

Pet dog/cat/fish food,breadcrumb,full extrusion snack food,textured soya protein and so on.

5. Technical Parameters

Model

KS95

KS90

KS85

Installed Power

100.7kw

82.5kw

92kw

Main Motor Power

90kw

75kw

75kw

Capacity

1500-2000kg/h

800-1200kg/h

400-500kg/h

Dimension

4.9×1.2×

2.7m

4.7×1.2×2.5m

3.9×1.2×1.8m

Our services

Installation:

1. We provide videos and instruction manual to show the process of installation.

2. We provide training for installation for free in our factory.

3. We can send technician to buyer's factory to install the machine and provide training service.

After Sales Service:

1. One year quality warranty and free lifetime technique support.

2. Free spare parts would be supplied if machine broken within warranty period except the easily damaged parts.

3. After the warranty period, the spare parts for replacement are offered based on certain charge.
