100 - 500kg per hour Automatic Twin Screw Extruder Machine For Rice Processing

Specifications

1．Twin screw extruder
2. Reconstructing broken rice
3. CE certificate
4. 12 months guarantee
5. Different shapes

Automatic crystal artificial rice making machine / production line

Brief introduction

Keysong nutritional rice processing line is an innovative application of screw extruding technology.

The production technology can re-shape the rice flour to be as natural rice shape and retain the original elements in ordinary rice.

At the same time, it strengthens various essential vitamins and minerals for body health in proportion.

The line can produce nutritional fortified rice and coarse rice. as per your special needs.

Specifications

1. Raw material : corn flour,wheat flour ,broken rice etc

2. Products :Long and thin ,fat ,natural shapes etc .various shapes artificial rice by changing dies(molds) of screw extruder

3. Capacity: 100-150kg/h 200-250kg/h 350-450kg/h

4. Voltage: Three phases: 380V/50HZ, Single phase: 220V/50HZ,

also can make it according to customers' local voltage of different countries

5. Machines material :food grade stainless steel

Main Features of Twin Screw Extruder

A. Twin screw extruder with electricity heating system

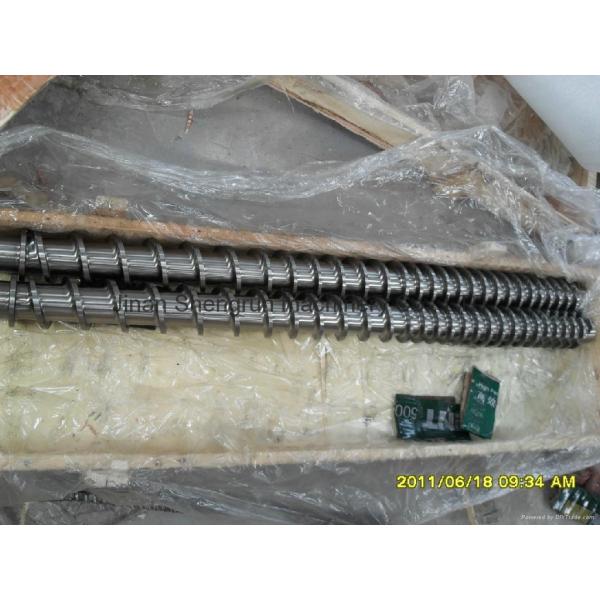

a. The screws are made by alloy steel (38CrMoAL) and special craft by nitriding process, The HRC hardness is around 60---62, it has good self-cleaning ability and does not need to discharge or clean

the barrel and screw, when roasting or replacing of materials.

b. The extrusion barrel is constructed of carbon steel, is made by #45 steel, stainless steel coating.

c. The gearbox has automatic lubrication function, with extends gear life.

d. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive

B. Twin screw extruder with steam heating system ensure the most efficient, continuous and stable heating effects.

a. Big capacity feeding hopper, variable frequency speed, two stages mixing wings, fast and efficient mixing and feeding.

b. DDC Double axis differential conditioner, available for steam, Pre-cooking and high efficient.

c. Linear slide face cutting system, strong power, variable frequency speed and large output,

Technical Parameters

Service & Installation

a.) Consultation service before, during, and after sales;

b.) Project planning and design services;

c.) Debugging of equipment until everything is functional;

d.) Management of equipments' long distance shipping from seller's factory to named place by buyer;

e.) Training of equipment maintenance and operating personally;

f.) New production techniques and formulas;

g.) Provide 1 year complete warranty and life-time maintenance service;
