Double Screw Extruder Nutritional Artificial Rice making machine 81.5kw

Product Description

1. artificial rice machine uses rice powder, corn powder as the main raw material, and some other vitamin and mineral material can be chosen as the products required.

2. The material is extruded into rice shape by the single-screw extruder, and dried to needed moisture content.

3. The extruding technique makes it possible to strengthen the micronutrient in the rice and solidify it.

4. Raw materials adopts broken rice , corn, millet, wheat, oats, buckwheat, bean, starch as main ingredient, and some other vitamin and mineral as part of ingredient.
5. Products This line can be used to produce many kinds of extrusion foodstuffs, such as various snacks foods, core-filled snacks foods, cereals ect, we just need to finish it by adjusting the mould from extruder
6. Capacity 100kg/h, 200kg/h

7. Flow chart Mixing system---Extrusion system----Drying system----Flavoring system---Packing system

8. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries

9. Machines materials All the machines are made by stainless steel, this line is with reasonable design

and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function

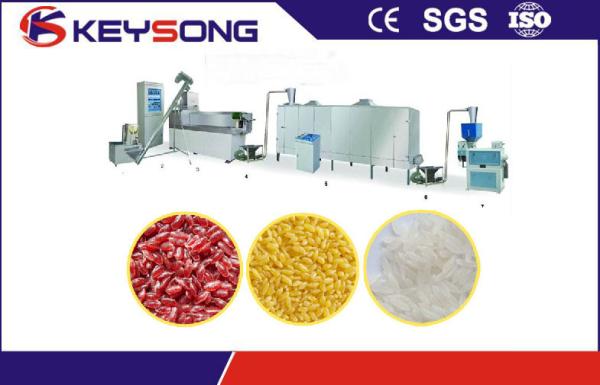

Equipments list

1. Mixer

2. Screw conveyer

3. Twin screw extruder

4. Air conveyor

5. Dryer

6. Air conveyor

7. Milling machine

Specifications of Artificial rice dryer

1. The whole machine is compact design, logical and easy operation.

2. Driving system adopts double pitch roller chain driving, circulating drying, and balanced running, never jam.

3. Drying temperature and time can be adjusted, effect of drying is capitally.

4. With high efficiency fuel saving system, reasonable heat distribution, material be heated equally, low energy but large output.

5. A frequency converter can adjust the drying time for the product speed.

6. Heat with infrared ray heating tube, raising and lowering temperature quickly, low heat inertia and high heat efficiency.

7. Mesh belt transmission speed of the multi-layer dryer can be adjusted and equipped with accurate and reliable temperature control device for easy adjustments.

8. Sliding board bottom of dryer for easy cleaning.

Technical Parameters
