Apples Pears Fruit And Vegetable Processing Machinery Full Automatic Food Grade Stainless Steel
Apples Pears Fruit And Vegetable Processing Machinery Full Automatic Food Grade Stainless Steel
Apples Pears Fruit And Vegetable Processing Machinery Full Automatic Food Grade Stainless Steel
Apples Pears Fruit And Vegetable Processing Machinery Full Automatic Food Grade Stainless Steel
Specifications
Brand Name :
Keysong
Model Number :
KS4000
Certification :
CE ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
USD 8000-30000 per set
Supply Ability :
20 sets per month
Delivery Time :
15 working days after receiving the deposit
Packaging Details :
Plastic packing inside, wooden case packing outside
Material :
food grade stainless steel 304
Weight :
1-3 ton
Automatic :
Semi and full automatic
Voltage :
three phase can be adjusted
Self design :
machines can be designed for customers
Description

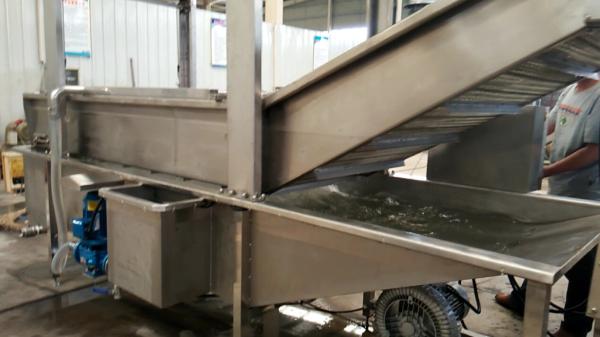

High Pressure Air Bubble Washing Machine For Fruits and Vegetables

Specifications

Bubble Washing Machine
1 Ease to operate, install and maintenance
2. Cleaning thoroughly. Low noise
3. Large capacity

Description

Bubble Washing Machine For Various Fruits And Vegetables is designed for the raw material for different shapes. High airflow mixed water washes the raw material to avoid colliding with each other. The materials are washed by the high pressure water, intensity, high effectively, and continuous operations. It is an indispensable washing device for the fruit and vegetable or seafood processing before quick freezing. Complete stainless steel SUS 304, Portion water recycling and stepless speed regulation.

Material

The tank is made of the stainless plate of high quality with the thickness of 1.5mm

Conveyor belt is composed of stainless chain and stainless mesh belt, the mid-width is 900mm

Protect plate is made of the stainless plate and punching plate with the thickness of 1.5mm

Steadier is made of 50×50×1.5 and 40×40×1.5 stainless square pipe

Guide course is made of hem stainless plate.



Technical parameter of ginger washing machine
Fruit vegetable washing Machine technical parameter:

Model

Power

Capacity
(kg/h)

Weight
(kg)

Dimension
(mm)

KS-2500

0.75kw/380V

400-500

380

2800*1200*1400

KS-3000

0.75kw/380V

700--1000

460

3000*1200*1400

KS-3500

1.1kw/380V

1000-1200

540

3500*1200*1400

KS-4000

2.57kw/380v

1300-1500

640

4000*1200*1400

KS-5000

3.37kw/380v

2300-2500

800

5000*1200*1400

Apples Pears Fruit And Vegetable Processing Machinery Full Automatic Food Grade Stainless Steel

Apples Pears Fruit And Vegetable Processing Machinery Full Automatic Food Grade Stainless Steel



Working Principle of Bubble washing machine

1.It uses bubble, cycle surfing, high pressure spray washing way combinations, to make
the vegetables or herbs get a full range of thorough cleaning;

2.After washing, vegetable or herb or fruit will go through an elevator, and at the same time,
high pressure spray will wash the them again.

3.Flow adjustment valve next to the machine can control the materials forward speed, easy
operating


Features of Bubble washing machine

1. Wash Dirt

Machine washes dirt attached on the surface of vegetable and fruits, by air bubble
washing.

2. Reduce Damage

Machine imitates human washing motion and avoids collision or friction damages
Caused by human washing.

3. High Efficiency

Efficiency will be increased because this machine change human labor to mechanized process.

Apples Pears Fruit And Vegetable Processing Machinery Full Automatic Food Grade Stainless Steel


Note

1.It can be connected to the next processing step like cutting, drying, or packing in a whole
processing line.

2. The size can be made larger as per clients' needs, and we also provide OEM service.

Our Services

Pre-sale service:

1 Recommend the most suitable machine for customers,or design the machine
specially according customers demand
2 strictly control easy production line and easy parts,to ensure machine quality.
3 every machine is tested before delivery,to ensure machine function well.

After-sale service:

1 one year warranty
2 lifelong free technical support and spare parts support
3 help customers solve problem rapidly

remark:Quality guarantee term is for one year.Malfunctions which are Caused by machine-self
and quality will be responsible for our manufacturer. Other malfunctions which are caused by
operation mistakes, man-made problems, etc will be responsible for clients-self.
