CE Certificate Food Processing Machinery Breakfast Cereal Processing Machine

Specifications

Breakfast cereal corn flakes machine
1. cereals machine
2. Extruders etc.
3. CE

corn flakes extruding machine description

Breakfast cereal corn flakes is a brittle food with good rehydration, outside the red is not bad, taste lubricants,grain flavor is fragrant.Corn flakes mainly corn flour as the main raw material,added sugar, vitamins,mixed raw minerals, add a sufficient amount of water after kneading, aging, forming, baking and tableting in order to manufacture a sheet flavoring.

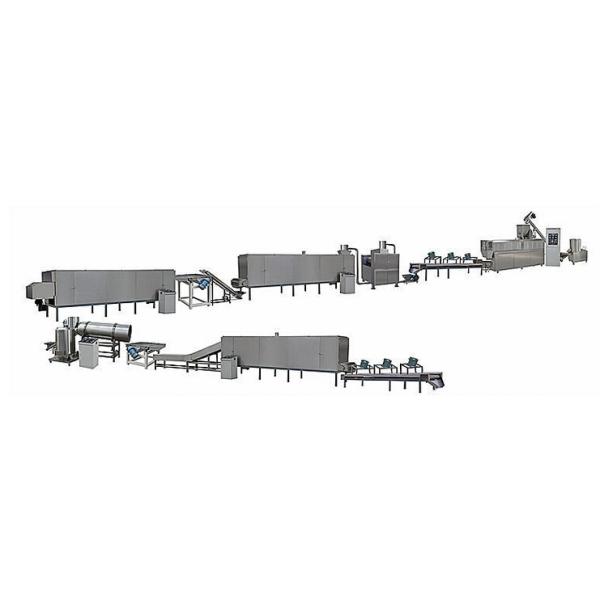

corn flakes extruding machine Flow chart

Mixing system---Extrusion system----Cooling system—Flaking system--Drying system—Toasted system---Sugar Spraying system ---Drying system---- Packing system

1. Mixer : Make the corn residue or corn flour added to a nutritional additive and mixing a proportion of water uniformly.

2. Screw conveyor : Marinated raw material fed to the extruder feed hopper.

3. Double screw extruder: The material in the feed hopper into the extrusion system, to produce small spherical particles.

4. Shaker:Dispersed particles, to avoid overlap pressed together into a tableting machine.

5. Air conveyor:Transported the particles into the tableting machine.

6. Flaking machine:Flaking the corn ball to raw corn flakes.

7. Air conveyor:Transfer the corn flakes to the baking oven.

8. Mutil-layer oven: Oven mostly is toaster,temperature between 0-200 degrees self-regulation through the control cabinet,internal stainless steel double mesh bag,baking time may be adjusted according to the speed,remove the water.

Raw materials of the corn flakes extruding machine

corn flakes extruding machine adopts corn flour as raw materials.

corn flakes extruding machine Capacity/Output

100-130kg/h, 200-240kg/h, 300-400kg/h

Voltage in China

Three phases: 380V/50Hz, we can make it according to customers’Local voltage according to different countries

Machines Materials of corn flakes extruding machine

All the machines are made by stainless steel.

The biggest advantage of the corn flakes extruding machine

the screw can self-clean automatically

Technical Parameters of corn flakes extruding machine

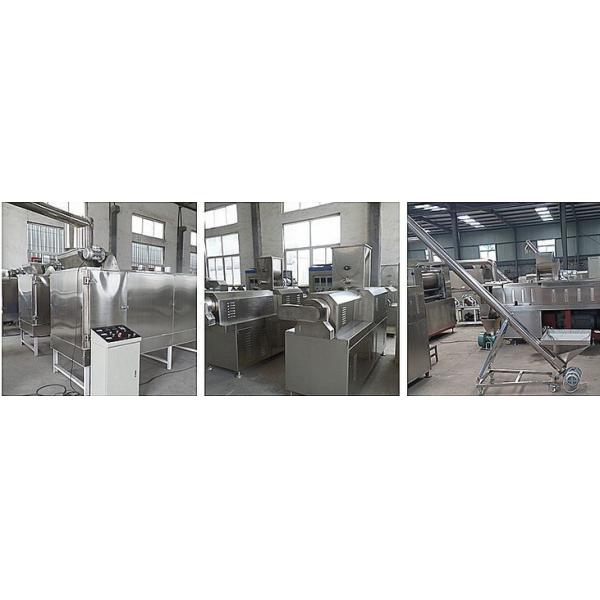

Factory Pictures

Our wonderful service ( corn flakes extruding machine )

Pre-sale service
1. Related machines’s technical parameter will be supplied to customer.
2. According to customer’s factory size, factory layout can be provided in advance.

3. According to customer’s material cost, general formulation can be prepared well.
4. Special machine can be supplied as customer’s request.
5. Professional Advice about Market, machines, processing , materials, packing

can be supplied
6. Suggesting professional ship agent or helping book ship as customer request.

After sale service:

1. Allocation chart as the buyer’s request will be supplied.
2. Operation manual will be supplied after shipment.
3. One year warrantee, life time maintenance with cost price.
4. Free easy broken spare parts will be sent with container .
5. First installation can be done by engineer.

6. Training workers in customer’s factory
