Full Automatic Corn Flakes Food Processing Machinery , Breakfast Cereal Machine

Brief Information

Product Description

Corn flakes/breakfast cereals are a kind of breakfast with high nutritional value. They usually use corn powder and other cereals as main raw material, through mixing, extruding, flaking, drying, baking, coating and cooling, to get crispy flakes. It always service as breakfast cereal mixed with milk of coffee. But it can also be a kind of leisure snacks. This process line can also make other shapes of cereals such as rings, balls, chocos, curls etc.

Application

The processing line is used for producing fried bugles, rice crust, pellets, chips, fried snacks and so on.

Technical Parameters

Specifications

Raw material corn flour, rice flour, corn grits, millet and so on

Product shapes Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart

shape by adjusting the mould in the extruder.

Capacity 120-150kg/h, 200-250kg/h, 350-500kg/h

Equipments material

Equipments are made of stainless steel and the screw is made of alloy steel and special craft, which guarantee the using time longer.

Voltage

Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to customers' local voltage of different countries.

Feeding Hopper uses Two grades mixing design which allows high feed speed and also avoid any block in raw materials.
Radiating Windows design ensure the thermal heat caused by machine discharge easily to extend the machine using life.
Cooper Pipes used for cooling cylinder, they are quite durable than plastic rubber pipes.
Food Grade stainless steel made Cutter cover meet strict food process safety requirements.

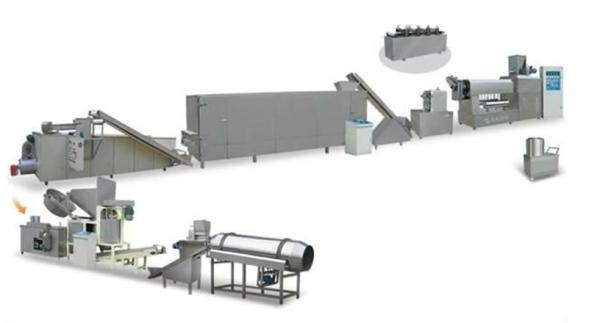

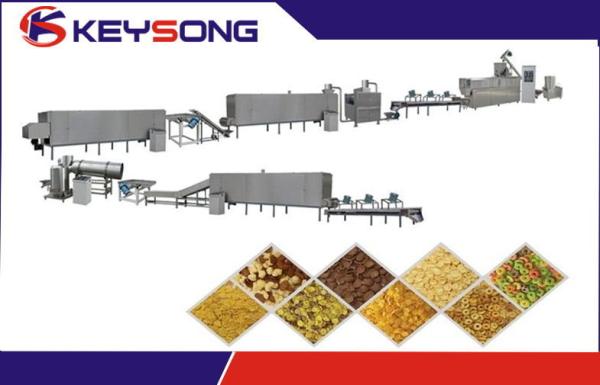

Production Process Flow

mixer---extruder---vibrate cooler---air conveyer---rollers drying ---flaking---air conveyor--roasting---high temperature inflate---second vibrate cooler---sugar sprayer--- multi-layer oven---cooling

Main Features

1. The breakfast cereal machine has the advantage of rational design, high automatic degree and accuracy control.

2.The main body material is stainless steel, which is easy to be cleaned.

3.The screws material is 38CrMnAl, which is wear-resisting.

4.The temperature and rotating speed can be controlled and adjusted.
