Fried Roasted Kurkure Cheetos Snacks Food Extruder Making Machinery


1. Production line Description:
Fried Kurkure Cheetos Snacks Food Extruder Making Machinery is a special extruded snack with extreme crispy taste. The main raw material is corn grits which is mixed with water evenly by the flour mixer, squeezed and twisted by the extruder to form the iregular curls shape, and then cut into different length, at last fried or baked and flavored. Such snacks with rich taste are always the customer's favor.

2. Raw materials:
Corn, rice, millets, wheat, oat, barley etc as ingredients. Please note that all the materials should be in powder(flour) or grits form.

3. Finished Products: twisted kurkure, cheetos, corn curls

4. Output Capacity: 80-100kg/h

5. Equipment list in the kurkure production line:


Roasting and Fried Cheetos Kurkure Snacks Production Plant flow chart

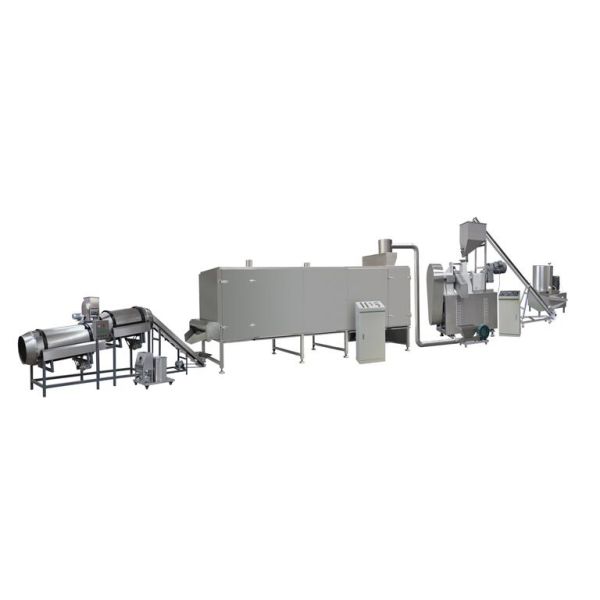

Roasting Cheetos Kurkure Snacks Production Plant
Raw material - mixer-screw conveyor- kurkure making machine - air conveyor- dryer - hoister - flavoring line

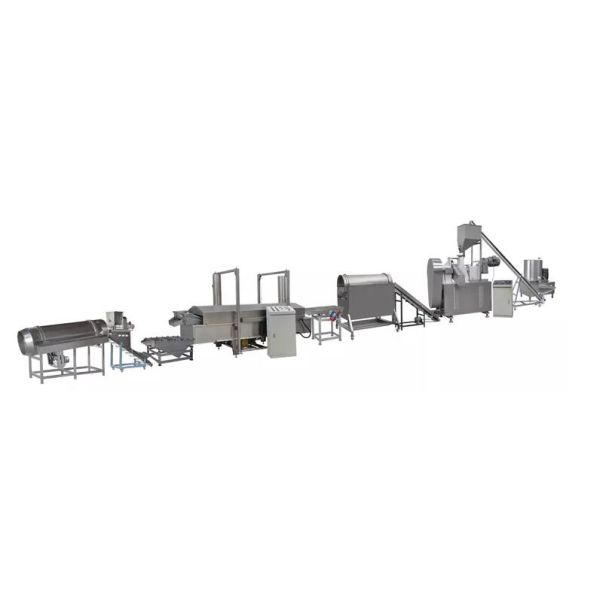

Fried Cheetos Kurkure Snacks Production Plant
Raw material - mixer-screw conveyor- kurkure making machine -hoister- separating screen- vibrating feeder- fryer-vibrating deoiling machine-flavoring line

6. Voltage Power: 3 phases: 380V/400v/415v, 50hz/60hz, we can make it according to customers' Local voltage according to different countries

7. Machines Materials: each machine is made of stainless steel with reasonable design and high automatic. the screws are made by alloy steel, with building block system structure and self-cleaning function.

8. Technical Parameters

9. Product Samples

10. Main equipment of this line

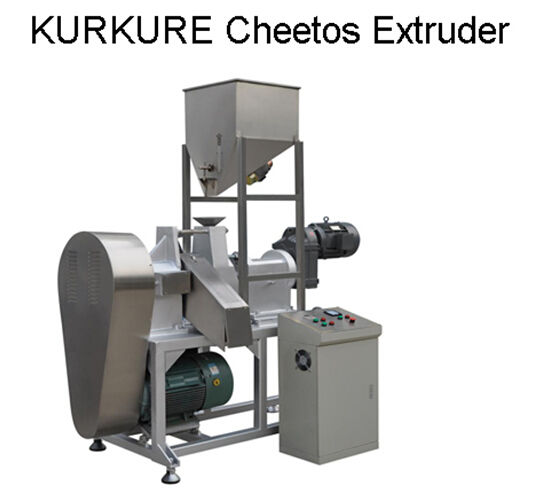

kurkure cheetos rotary extruder features:

1, The screws are made by alloy steel (38CrMoAL) and special craft by nitriding process, The HRC hardness is around 60---62, it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.

2, The extrusion barrel is constructed of carbon steel, is made by #45 steel, stainless steel coating.

3, The gearbox has automatic lubrication function, with extends gear life.

4, Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.

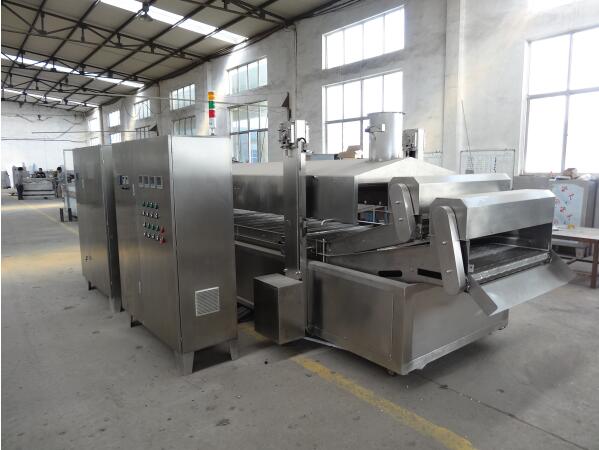

11. kurkure cheetos fully automatic continous belt tunnel fryer





10. Packing and Shipping
Packed by standard wooden case outside and wrapped by plastic film inside then shipped by container.

11. Our Service
1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free installation and commissioning of equipment until everything is functional;
4. Free management of equipments' long distance shipping;
5. Free training of equipment maintenance and operating personally;
6. Free new production techniques and formulas;
7. Provide 1 year complete warrantee and life-time maintenance service;
8. Engineers available to service machinery overseas.
9. Provide technical exchanging
10. Provide English Version of Installation/Operation/Service/Maintenance Manual
