PLC Coffee Bean Roaster Machine 1kg Coffee Roaster Machine 2kg Gas Coffee Roasting
PLC Coffee Bean Roaster Machine 1kg Coffee Roaster Machine 2kg Gas Coffee Roasting
PLC Coffee Bean Roaster Machine 1kg Coffee Roaster Machine 2kg Gas Coffee Roasting
PLC Coffee Bean Roaster Machine 1kg Coffee Roaster Machine 2kg Gas Coffee Roasting
PLC Coffee Bean Roaster Machine 1kg Coffee Roaster Machine 2kg Gas Coffee Roasting
PLC Coffee Bean Roaster Machine 1kg Coffee Roaster Machine 2kg Gas Coffee Roasting
PLC Coffee Bean Roaster Machine 1kg Coffee Roaster Machine 2kg Gas Coffee Roasting
PLC Coffee Bean Roaster Machine 1kg Coffee Roaster Machine 2kg Gas Coffee Roasting
Specifications
Brand Name :
CQ
Model Number :
CQ-1KG
Certification :
CE,ROHS ,SGS, TUV
Place of Origin :
China Zhengzhou
MOQ :
1 set
Price :
1500usd-2950usd
Payment Terms :
T/T, Western Union,Paypal , L/C
Supply Ability :
100 unit /month
Delivery Time :
3-7 working days
Packaging Details :
Export wooden box（120*105*82cm,166kg）
Model :
CQ-1kg
Power :
225W /4220W
Roasting Time :
10-20 minutes
Frequency :
50/60Hz
Voltage :
220V
Temperature Range :
100-250°C
Cooling Time :
1-2 minutes
Weight :
125kg
Heating Method :
Half hot air and half direct fire
Roasting Drum Material :
304 stainless steel
Capacity :
500~1000g
Certifications :
CE, RoHS
Drum Color :
Rose Gold / Black / Stainless Steel
Safety Features :
Overheat Protection, Automatic Power-off
Description

PLC Coffee Bean Roaster Machine 1kg Coffee Roaster Machine 2kg Gas Coffee Roasting

Product Description

PLC Coffee Bean Roaster Machine 1kg Coffee Roaster Machine 2kg Gas Coffee Roasting

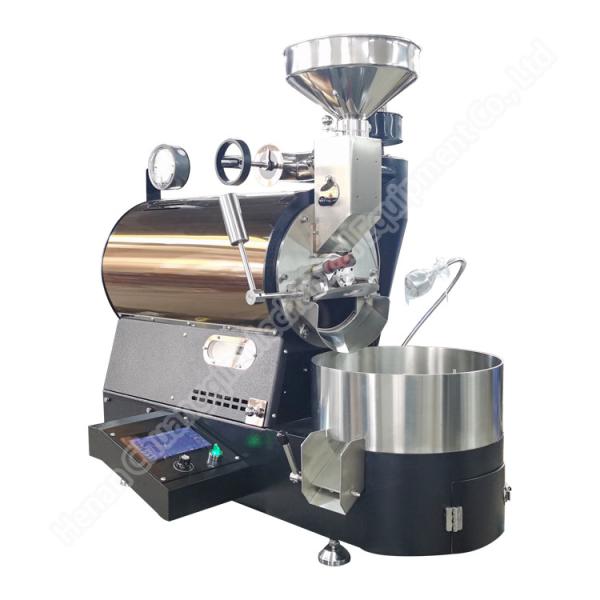

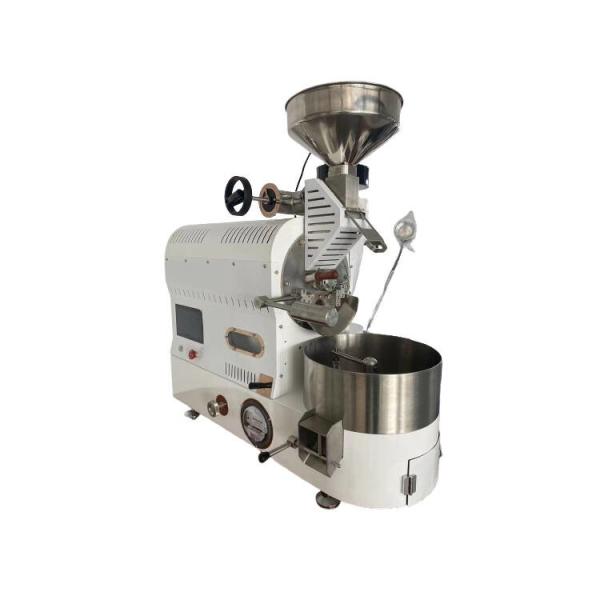

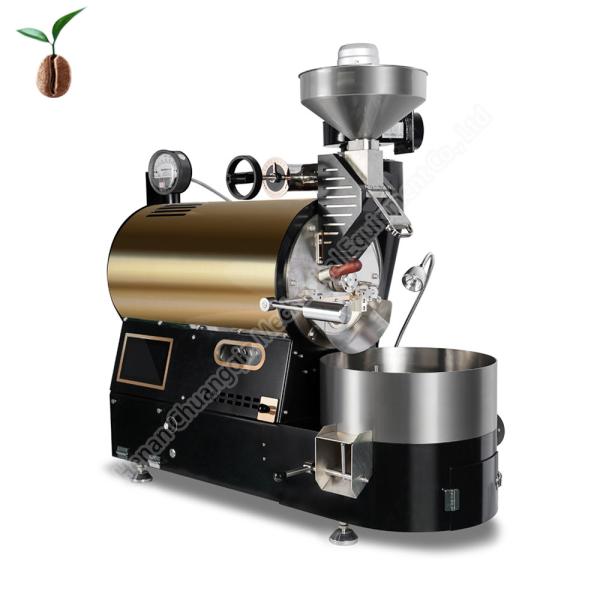

CQ-1kg PLC tabletop coffee roaster :

CQ-1kg coffee roaster is a versatile and reliable coffee bean roaster that can handle batches from 500g to 1500g, with a maximum output of 6kg per hour. it is very suitable for home or small coffee shop to use .
The whole machine adopts lasercutting technology. Using welding process to fix the whole frame.It is more solid and stable than using ordinary screw to fix,and not easy to loose parts or structural deformation.
The roasting machine can be connected with the computer, to achieve the output of baking curve,bring more accurate operation for your baking. This coffee roaster is available in both electric and gas models.

Model No.

1kg Gas type

1kg Electric type

Batch Capacity

0.5kg~1.5kg

0.5kg~1.5kg

Average Roasting Time

12-15 minutes

12-15 minutes

Production

4kg/hr (8.8lb/hr), 32kg/day (70.5lb/day)

4kg/hr (8.8lb/hr), 32kg/day(70.5lb/day)

Voltage

Single Phase220V, 50/60Hz

Single Phase220V, 50/60Hz

Roaster Power

225W

4220W

Roaster Dimensions

960*630*920mm(37.8*24.8*36.2in)

960*630*920mm(37.8*24.8*36.2in)

Roaster Weight

125kg

125kg

Package Dimensions

1200*1050*85mm (47*41.3*33.5 in)

1200*1050*85mm (47*41.3*33.5 in)

Package Weight

166kg

166kg

Drum Construction

304 Stainless steel, Welded

304 Stainless steel, Welded

Heating Source

Natural Gas/ Propane

Electric

Gas Consumption

0.2kg/hr

2.6kw/h

Body Color

Black/ White

Black/White

Housing cover color

Rose Gold / Black /Silver

Rose Gold / Black /Silver

Data Logger

Record roasting curve (USB or BT)

Advantages:

1. Uniform bean appearance and homogeneous roast through the combined application of heat via convection and conduction.
2. Specific design of the roasting drum allows for a gentle mixing of the beans.
3. Reliable production from light to extremely dark roast colors.
4. Long roasting times with high production outputs.
5. Minimal product loss, minimal weight loss.
6. Effective and gentle cooling.
7. Reduced cycle times by simultaneous roasting and cooling.
8. Effective chaff separation by separate, free-standing roasting cyclone.
9. ADDKA Japan motor. Equipped with infinitely adjustable-speed system.

PLC Coffee Bean Roaster Machine 1kg Coffee Roaster Machine 2kg Gas Coffee Roasting

Details

PLC Coffee Bean Roaster Machine 1kg Coffee Roaster Machine 2kg Gas Coffee Roasting

1. New touch-optimized HMI with intuitive user guidance.

2. Support clear visualization of the roasting curve on the touch screen.

3. The integrated interfaces in the software solutions let you connect roaster to the external software systems of Cropster and Artisan

1.Large flame observation window, so that the baking

room situation is absolutely clear.

2.Detection of flame extinction: The ignitor will be automatically fire up ifthe flame goes out when you are baking Solenoid valve will shut off gas automatically and the buzzer will start to ring if there is no flame in 10 seconds.

PLC Coffee Bean Roaster Machine 1kg Coffee Roaster Machine 2kg Gas Coffee Roasting


1. Coffee bean feeding device adopt 304 stainless steel materials,can ensure food safety. Just gently stir,coffee beans can quickly fall into the drum.

2. With coffee beans observation window, can observe the coffee beans at any time when you baking.

3.Humanized design of cooling plate is easyily to operate.

4. Independent cooling fan with the mixing arms,can quickly cool the roasted coffee beans.
Company Information

Henan Chuang Qin Mechanical Equipment Co., Ltd. is a professional coffee roaster manufacturer , we can

provide you from 300g to 120kg capacity coffee roaster.

Our operation principle : To be a total solution provider for coffee roasting .

High quality products, professional service, suitable price , give you a satisfying shopping experience.

PLC Coffee Bean Roaster Machine 1kg Coffee Roaster Machine 2kg Gas Coffee Roasting

Packaging & Shipping

Fixed In Standard export Plywood carton
Machine surface protection, plastic fastening
Manufacturer logo printed on the outside of package
30% deposit when placing order, 70% balance paid before shipment.
7 days delivery machine after receipt of balance payment
