High Accuracy Detector Sensor With Conveyor Type Needle Metal Detector


Brief introduction:

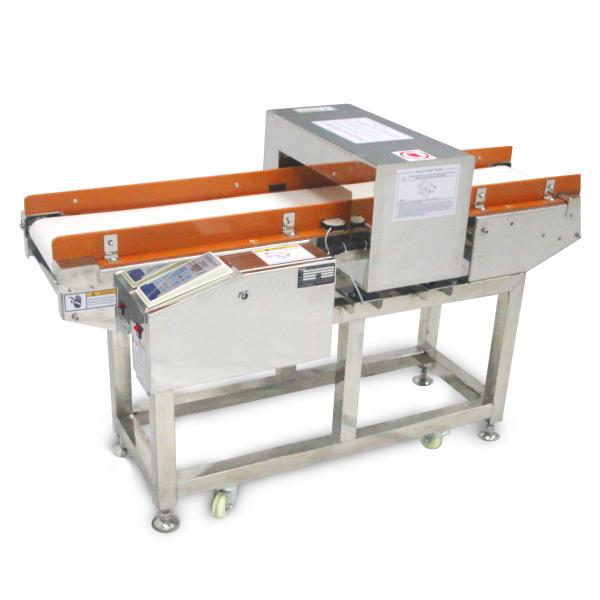

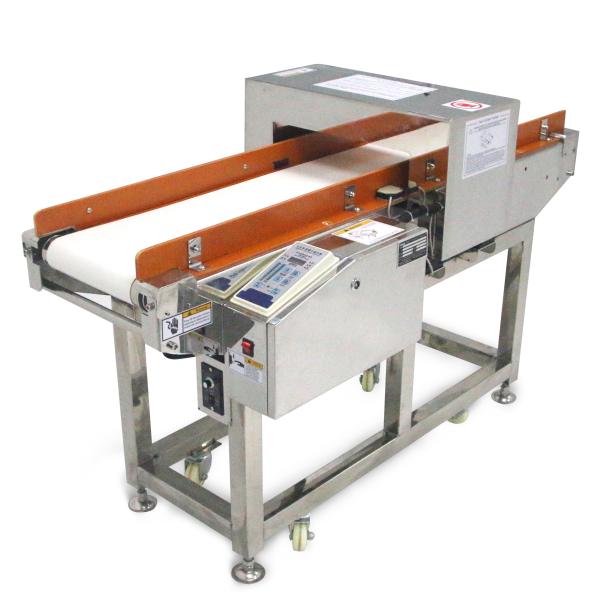

The Conveyer Type Needle Detector is a free standing conveyorized digital Needle Detector for garments. Accepts non-metals and all approved non-ferrous zips and poppers. It will reject and ferrous or nickle contamination, typically staples and needle fragments equivalent to a 1.0 mm ferrous sphere. The unit has a belt speed of approximately 25 to 30 meters per minute and an aperture size of 24" (700mm) width x 7" (175mm) height. In case of reject, belt stops with audible alarm and signal light is activated. Full digital technology and control.

Function:

• Newly design twin sensor head with different angle

The newly designed twin sensor head are set at different angle to achieve precise detection

• Blue back D panel

Improved visibility&operatively Optional touch screen

• New sensitivity level monitor

Unique new monitor provide more detail detection result

• Conveyor reverse function

Conveyor reverse function will be helped for easy operation

• Products counter .alarm counter

Counter function is equipped as standard

• Printer (Optional)

Optional data printer function. Easy for report

Features:

• Equipped with microcomputer chips from USA for digital signal management, it can analyze the different channel signals and improved the detection reliability.
• Special inducing design in the detection field, the sensitivity and anti-disturbance ability are greatly improved, and it is not disturbed by the environment.
• Unique inducting design of balanced magnetic field to meet the needs of different clients, especially for the detection of garment accessory.
• With digital display in Chinese, touching screen of films. It is convenient for operation and management.
• The perfect combination of powerful functions and simple operation is also a friendly philosophy of design.
• Equipped with the intellectual location displaying system, which can indicate the location of the needle.
• The intellectual counter system can caulate the qualified and unqualified objects amount.
• Equipped with safe lock only, which can lock the sensitivity, so that it is convenient for management.
• Digital sensitivity regulation, the induction strength can show the disturbance and Iron content.
• Equipped with light control automatic alarm and automatic power off function.

Application:

• Detect the broken needle and ferromagnetic debris of sewing products.
• Detect the ferromagnetic impurities contained in the food and drug.
• Detect the scrap iron and all kinds of alloy debris in the chemical raw materials, rubber and paper products.
• Detect the iron impurities that contained in the non iron materials.

Specification:

• Equipped with microcomputer chips from USA for digital signal management, it can analyze the different channel signals and improved the detection reliability.
• Special inducing design in the detection field, the sensitivity and anti-disturbance ability are greatly improved, and it is not disturbed by the environment.
• Unique inducting design of balanced magnetic field to meet the needs of different clients, especially for the detection of garment accessory.
• With digital display in Chinese, touching screen of films. It is convenient for operation and management.
• The perfect combination of powerful functions and simple operation is also a friendly philosophy of design.
• Equipped with the intellectual location displaying system, which can indicate the location of the needle.
• The intellectual counter system can caulate the qualified and unqualified objects amount.
• Equipped with safe lock only, which can lock the sensitivity, so that it is convenient for management.
• Digital sensitivity regulation, the induction strength can show the disturbance and Iron content.
• Equipped with light control automatic alarm and automatic power off function.

Parameter :

Company information
we are a professional metal detector manufacturer.
we accept kinds of metal detector customized.

FAQ:

1. Are you manufacturer or trader?
We are manufacturer, we have own factory in Dong Guan, we have independent department for purchasing, producing, processing, testing, packing, storing , and transportation, believe our team is best team in china
2. Do you sell the accessories for Products ?
Yes. We have Match the parts for our testing equipment. If our machines damages by fire, water flood, earthquakes, unsteady of power and other natural disasters, we are willing supply match parts with lowest price for you.
3.How about the packing for product? Is it easy damaged during transportation?

For heavy structure products like conveyor belt needle detector. Food metal detector X ray machine .Our packing is Standard Export ploy Wooden Case.
Every prepackage have a plastic bags cover
4. What's your main product?
We professional in needle detector. Metal detector. X ray machine and other related electronic products and machines
5.Where is your main sales market?

Our needle and food metal detector mainly customers are from Australia. USA. All Europe and Asia
6.How about your after-sales policy?
Customer first is our always principle . All of our products normal warranty is 12months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service
7.Do you accept customer Logo and customized ?
We accept kinds of customized and logo of all of our products for customers
