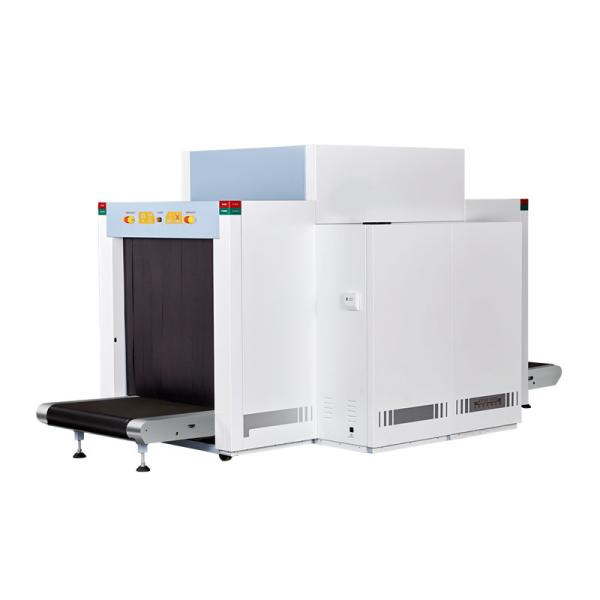

Airport Luggage Checking X Ray Baggage Scanner Inspection System Long Life
Airport Luggage Checking X Ray Baggage Scanner Inspection System Long Life
Airport Luggage Checking X Ray Baggage Scanner Inspection System Long Life
Airport Luggage Checking X Ray Baggage Scanner Inspection System Long Life
Airport Luggage Checking X Ray Baggage Scanner Inspection System Long Life
Airport Luggage Checking X Ray Baggage Scanner Inspection System Long Life
Specifications
Brand Name :
SHANAN
Model Number :
VX-10010
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100 set/month
Delivery Time :
15work days
Packaging Details :
Box
Type :
Conveying X-ray Detector
Load Ability :
200kg
Conveyor Speed :
0.22 m/s
Tunnel size :
1000 ( W) x 1000 ( H) mm
Penetration :
≥40 mm steel plate
NW / GW :
280 kg / 350 kg
Conveyor height from the ground :
700mm
Resolution :
∮0.1 mm
Noise :
Safety to the ISO1600
Anode voltage :
100~160 kV（adjustable）
Tube current :
0.4~1.25mA（adjustable）
Description

X-ray Luggage Scanner Inspection Systems Machine To Russia Security Equipment

X-ray Generator

Ray Beam direction Top-illuminated
Tube current 0.4~1.25mA(adjustable)
Anode voltage 100~160 kV(adjustable)
Angle 90°
Generator cooling/working periods Sealed oil bath with forced air/100%

Image performance system

X-ray sensor L type photo-diode array detector(Multi-energy), 12-bit
Monitor high resolution 19 inch D SamSung monitor
Color quality 24-bit real-color
Console full package sealed display, connecting cables can be adjusted according
Edge Enhancement object contour edge is more distinct
Super Image Enhancement image detail is more distinct
High-penetrate strength display increase brightness of dark area in image to display object which is behind high-absorptive mass distinctly
Low-penetrate strength display increase contrast of low absorptive mass to display it distinctly
Magnifier function of partial enlargement
Brightening/dimming increase brightness of image/decrease brightness of image
Image recurrence display previous twenty images and process any one of them
Image restoration restore image to initial status at the time of stopping conveyor
Image storing real-time store more than 100,000 images and process it in operating status
Film safety for ISO 1600

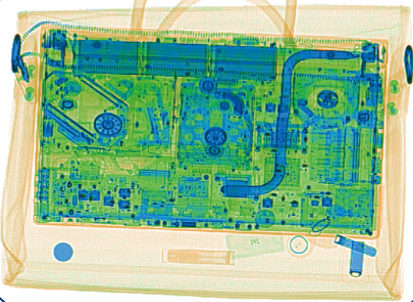

Multi-energy function

Multi-energy color orange--organic displays, blue--inorganic displays, green--the mixture
High-energy / low-energy switching display two energy , high-energy display metals, low-energy displays non-metallic
Drugs explosives Auxiliary Auxiliary detect drugs ,explosives and other dangerous items
Alarm by sounds and light alarm by sounds and light when conform to condition

Environment

Operating temperature / humidity 0℃～45℃／20%～95% (non-condensing)
Storage temperature / humidity -20℃～60℃／20%～95% (non-condensing)
Voltage 220VAC(±10%) 50±3Hz
Power consumption 1.0KW(max)
Noise level < 55dB (A)
