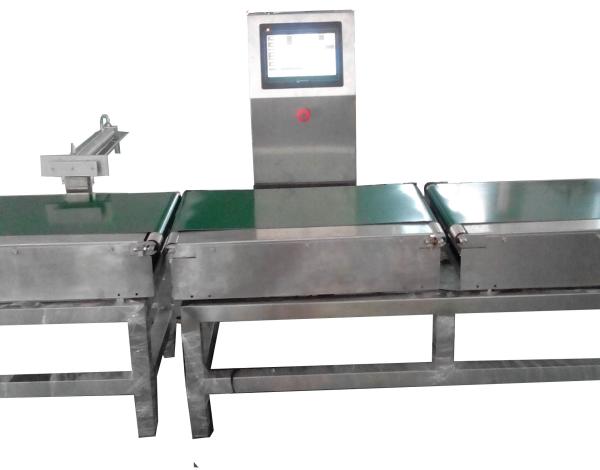

High quality and accuracy conveyor Stainless steel check weigher for food industrial

About Shanan.pdf
Checkweighers are systems used to assure compliance with label weight regulations and to minimize product giveaway. Our checkweighers will help you make sure items are not missing from packaging, reducing customer complaints, speeding up production and minimizing your giveaway.

Function and structure characteristics of check weigher

1. apply advanced digital signal processing and realize high speed and stable weighing.
2. with liquid crystal and tangibly screen, it is easy to operate.
3. self-diagnosis function, when Rom/Ram, A/D light electric tube.

Scope of application of check weigher

Use in detecting the single product weight and setting target value which is accordingly or not. And the
sorting device will eliminate the unstandard product.

Features:
Solid SUS304 stainless steel structure enable for good performance

Belt disassembling without tools, which is easier to clean
Rejecter system choose :automatic stop by sound and light .air blast. or pneumatic push rod
emergency stop button for safety working condition

Parameter details :
rge tunnel food bags check weigher
²Screen : 8inche full touch screen
² Weight range : Max 1000g
² Max speed : 60-120pieces /minute (can adjust )
² Max accuracy: ±0.5g
² Screen resolution : 0.01g
² Rejection: deflector rod
² Running direction :Face operate panel from left to right
² Belt height from earth : 750±50MM(can customized )
² Products recipe storage : can stooge 100kinds
² Power supply : customized 110---220V±20% 50HZ
² Machine structure :Full stainless steel 304
² Full machine weight :approx 100kg

Standard Features
Control Panel Exterior is Stainless Steel and Painted
Conveyor is Non-waterproof
Balance is Force Balance
Frame is Stainless Steel and Painted
Color D Touch Screen
Optional Features
Tower Light (with buzzer alarm)
Data Printer
Emergency Stop Switch
Line Height Change
Plate for Anchor
Remote Indicator
Cross Plate
Product Guide
Wind Shield (full cover)
Wind Shield (top)
